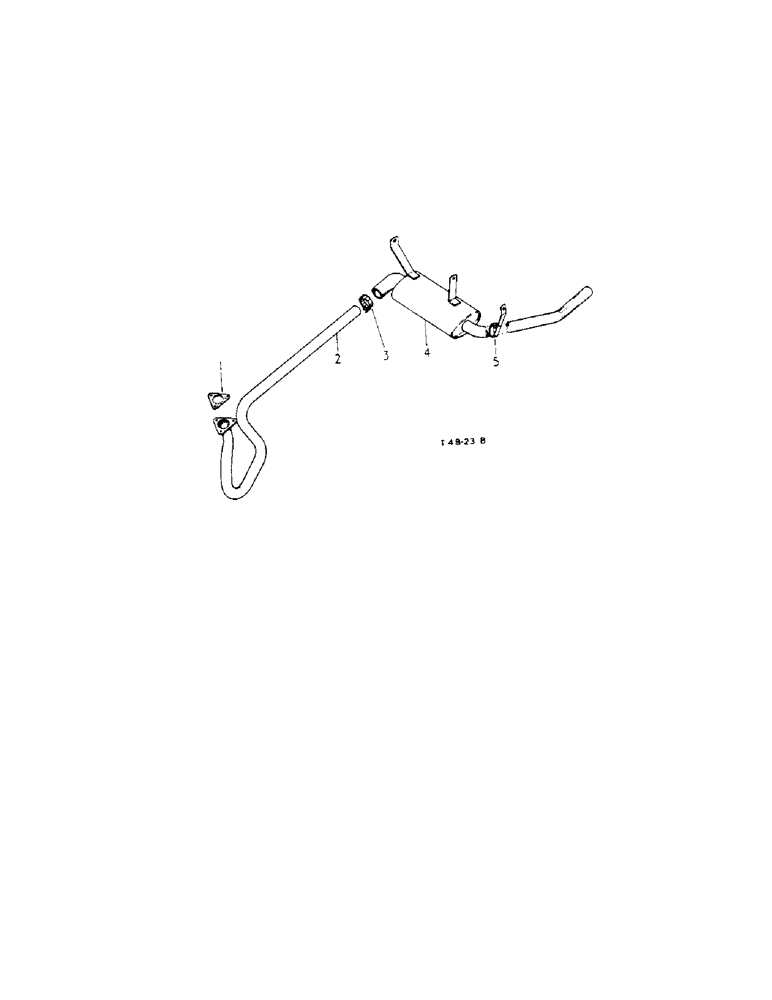

Запчасти Case IH 434 (4-09[1]) - DOWNSWEPT EXHAUST PIPE, PETROL - CHASSIS (02) - ENGINE

1

3060566R1

GASKET

exhaust pipe flange

1шт.

2

3060567R93

PIPE

exhaust, manifold to silencer, cpte.

1шт.

3

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

3106834R1

MUFFLER

SILENCER, exhaust, cpte., 434P/2404 up

1шт.

4

3047572R92

MUFFLER

SILENCER, exhaust, cpte., Serial Range: up-434P/2403

1шт.

Order SILENCER 3106834R1 w/ PIPE 3060567R93 & CLAMP 3106822R1

1шт.

5

3106822R1

CLAMP

support, muffler outlet pipe 434P/2404 up

1шт.

5

705449R1

CLAMP

support, muffler outlet pipe, Serial Range: up-434P/2403

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
