(4-08) - UPSWEPT EXHAUST PIPE, DIESEL - CHASSIS

Запчасти Case IH 434 (4-08) - UPSWEPT EXHAUST PIPE, DIESEL - CHASSIS (02) - ENGINE

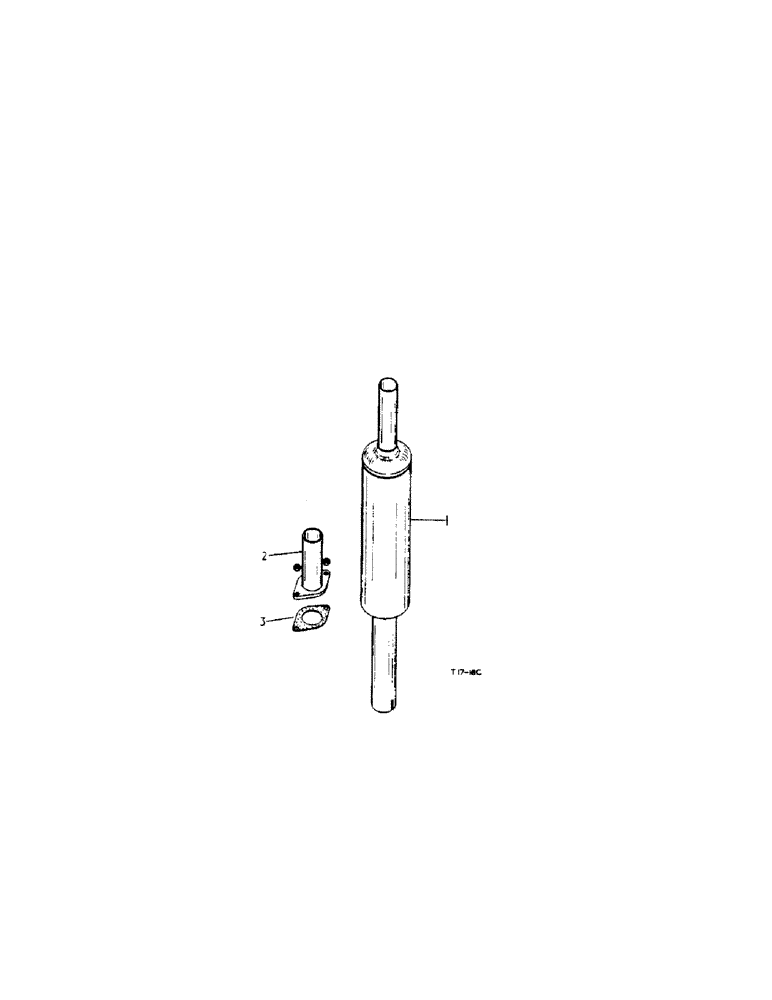

Схема запчастей Case IH 434 - (4-08) - UPSWEPT EXHAUST PIPE, DIESEL - CHASSIS (02) - ENGINE
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

704616R96

MUFFLER

SILENCER, cpte., exhaust optional

1шт.

1

707713R93

MUFFLER

SILENCER, cpte., exhaust optional

1шт.

1

751779R93

SILENCER, cpte., exhaust optional

1шт.

2

3072544R1

PIPE FITTING

PIPE, cpte., exhaust, Serial Range: (manifold-silencer)

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

704613R1

GASKET

exhaust pipe flange

1шт.
