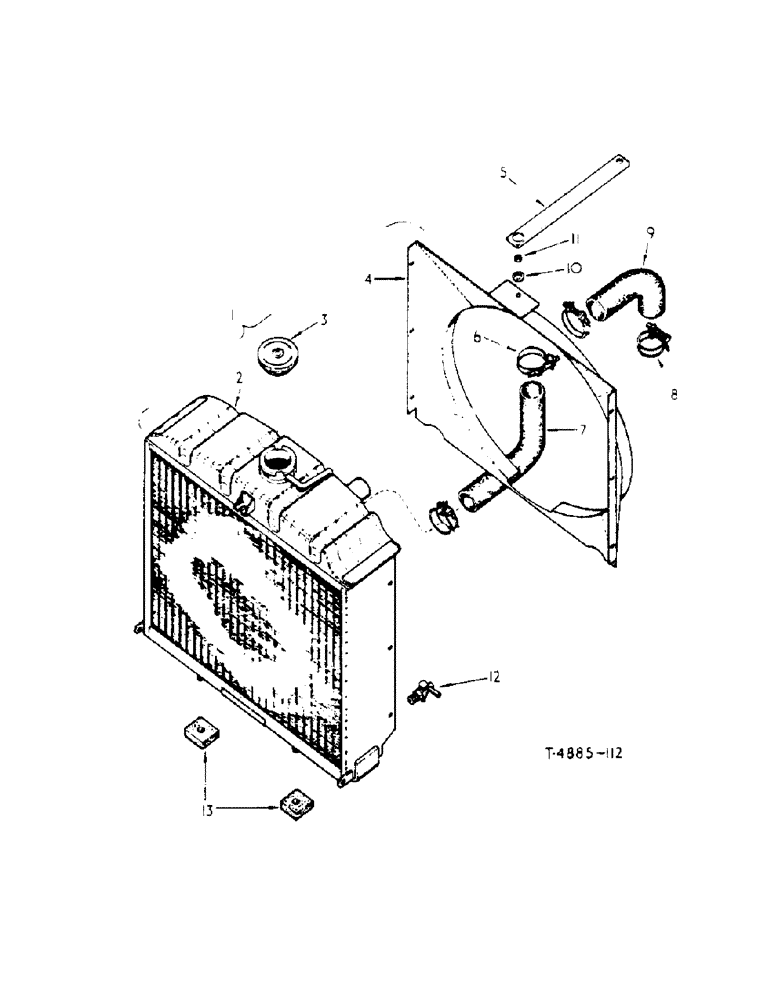

Запчасти Case IH 434 (4-02) - RADIATOR AND CONNECTIONS - CHASSIS (02) - ENGINE

1

3070812R92

RADIATOR

w/FAN HOUSING and CAP, cpte. (Domestic) (order 3107749R91), comprising

1шт.

3064970R91

COVER

CAP

1шт.

3047381R1

CLIP

2шт.

3071269R91

HOUSING

1шт.

25-114

NUT,1/4"-28, G5

8шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW

8шт.

3047380R1

WASHER

8шт.

1

3044008R95

RADIATOR

w/FAN HOUSING and CAP, cpte. (Export) (order 3107750R91), comprising

1шт.

3064970R91

COVER

CAP

1шт.

3047381R91

CLIP

2шт.

3071266R91

HOUSING

1шт.

25-114

NUT,1/4"-28, G5

8шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW

8шт.

3047380R1

WASHER

8шт.

15143R1

BOLT,Sq Nk, 7/16" - 14 x 3"

7/16" x 3" sq-nk., carr.

2шт.

271500

SOCKET

7/16" hex.

2шт.

67205D

SPRING

radiator hold down

2шт.

11002VA

WASHER

17/32" x 7/8"

2шт.

2

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

3

3064970R91

COVER

CAP, pressure filler

1шт.

4

3071268R91

HOUSING, fan cpte., w/SAFETY SHIELD (Domestic), Serial Range: up-434/6204

1шт.

4

3071269R91

HOUSING

fan cpte., w/SAFETY SHIELD and BRACKET (Domestic) 434/6205 up

1шт.

4

3047379R1

HOUSING

fan (Export), Serial Range: up-434/6204

1шт.

4

3071266R91

HOUSING

fan cpte., w/BRACKET (Export) 434/6205 up

1шт.

25-114

NUT,1/4"-28, G5

1/4" UNF hex.

8шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SETSCREW, 1/4" UNF x 3/8" mushroom-hd.

8шт.

3047380R1

WASHER, shakeproof

8шт.

5

3042412R3

BRACE, radiator, Serial Range: up-434/6204

1шт.

5

3071267R1

BRACE

radiator 434/6205 up

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

1шт.

6

705934R91

CLAMP

radiator outlet hose (1-3/4")

2шт.

7

3044009R1

RADIATOR HOSE,1.37" ID, SAE 20R4

PIPE , radiator outlet 1.37" ID, SAE 20R4

1шт.

8

705935R91

HOSE CLAMP

CLAMP, radiator inlet hose (2")

1шт.

9

3065129R1

HOSE

radiator inlet

1шт.

10

3064340R1

RING

rectangular section

1шт.

11

3064341R1

BUSHING

BUSH, radiator brace

1шт.

12

106794

VALVE

LOCK, drain, type A 1/4" opt.

1шт.

12

707888R92

COCK

LOCK, drain opt.

1шт.

13

3041407R1

PAD

radiator

1шт.

3047381R1

CLIP, overflow pipe

2шт.
