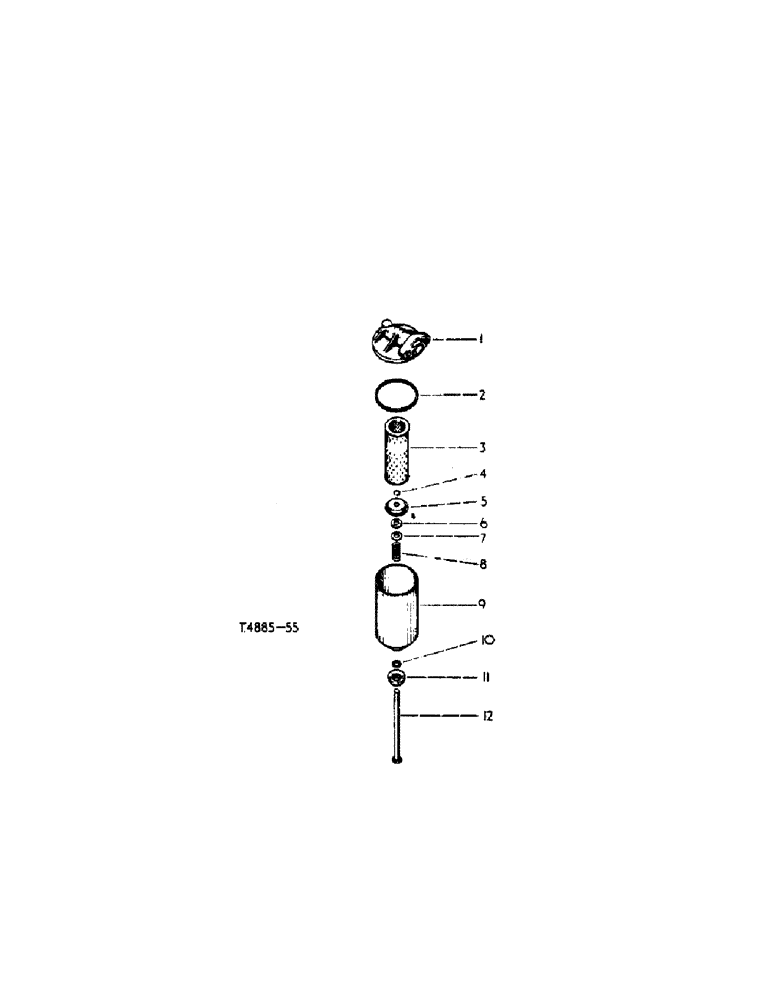

Запчасти Case IH 434 (2-18) - LUBRICATING OIL FILTER, 3066851R91 - GAS ENGINE (02) - ENGINE

3066851R91

FILTER

lubricating oil assy., (Purolator) comprising: Ref. 1 - 12

1шт.

1

3069113R91

HEAD

assy.

1шт.

2

707859R1

SEALING RING

SEAL, head

1шт.

3

3068655R91

ELEMENT

(optional)

1шт.

4

707869R1

RETAINER

CIRCLIP

1шт.

5

3069108R1

GUIDE

element

1шт.

6

3069109R1

WASHER

SEAL

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

707866R1

SUMP

assy.

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

O RING

1шт.

11

707862R1

DISC

COLLAR

1шт.

12

3069112R1

BOLT

center

1шт.

3043283R92

INSERT

PACKAGE, element (optional) w/705747R91 & 3042419R93

1шт.
