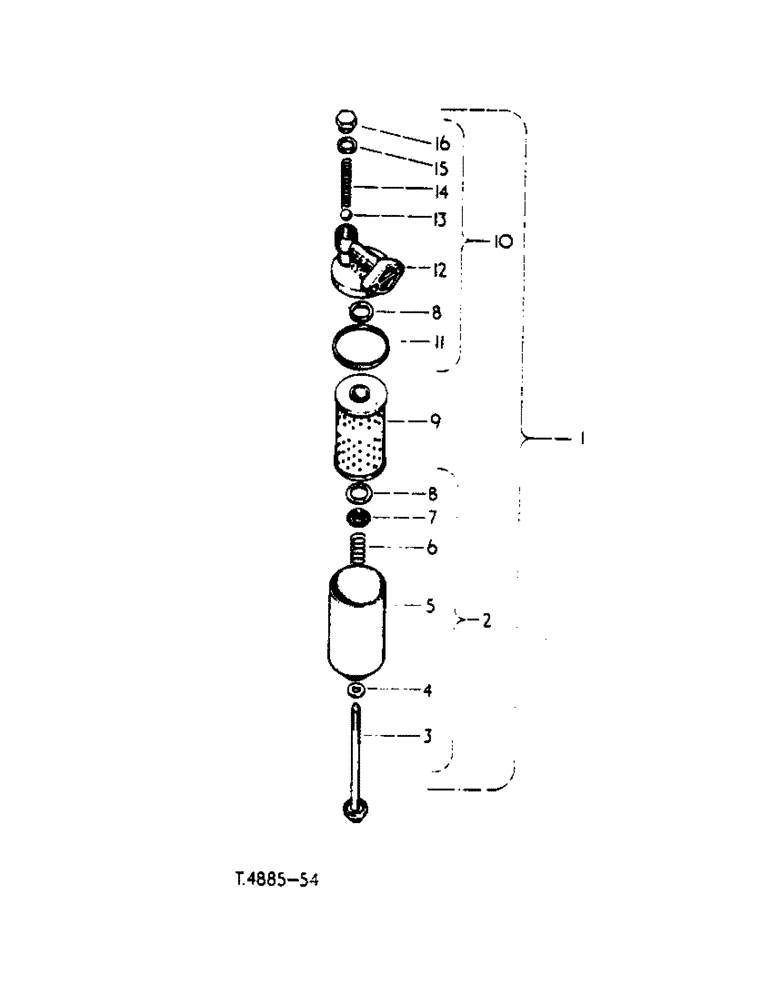

Запчасти Case IH 434 (2-17) - LUBRICATING OIL FILTER, 705612R91 - GAS ENGINE (02) - ENGINE

1

705612R91

FILTER

AC Delco., comprising: Ref. 2 - 16

1шт.

705732R1

BOLT

1шт.

705738R91

HEAD

COVER

1шт.

705747R91

ELEMENT

PACKAGE

1шт.

3042419R93

PACKAGE

1шт.

3066852R91

FILTER, ELEMENT

PACKAGE

1шт.

705734R1

RETAINER

1шт.

705731R91

SHELL

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

705731R91

SHELL

assy., comprising: Ref. 3 - 8

1шт.

3

705732R1

BOLT

center

1шт.

4

705733R1

WASHER

bolt

1шт.

5

705736R1

SHELL

1шт.

6

705737R1

RETAINER

SPRING, element retainer

1шт.

7

705734R1

RETAINER

lower seal

1шт.

8

705735R1

SEAL

element

2шт.

9

705747R91

ELEMENT

PACKAGE, w/GASKET 705744R1 optional w/3042419R93 and 3043283R92, element service

1шт.

10

705738R91

HEAD

COVER, assy., comprising: Ref. 8 and 11 - 16

1шт.

11

705744R1

GASKET

cover

1шт.

12

705742R1

COVER

1шт.

13

705743R1

BALL

valve, engine relief

1шт.

14

705741R1

VALVE SPRING

SPRING, valve, engine relief

1шт.

15

705740R1

GASKET, valve plug

1шт.

16

705739R1

PLUG, valve

1шт.

706592R2

GASKET

lubricating oil filter base

1шт.
