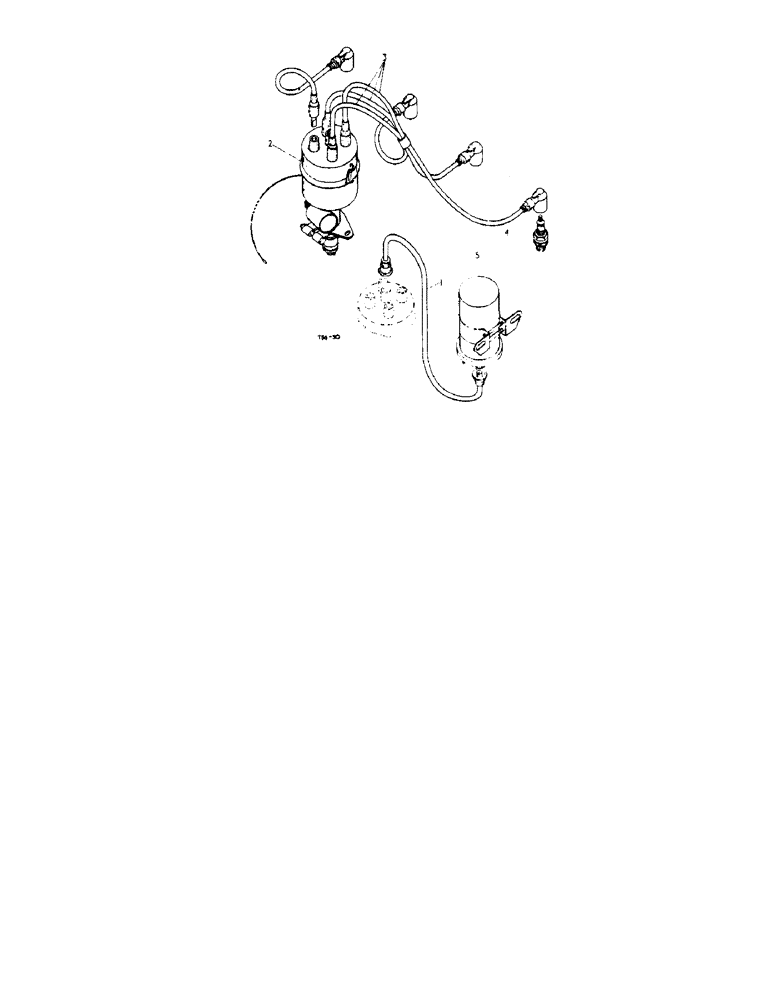

Запчасти Case IH 434 (2-15) - IGNITION SYSTEM - GAS ENGINE (02) - ENGINE

1

3068975R91

CABLE

cpte., high tension ignition, Serial Range: (coil-distributor)

1шт.

2

3068973R92

DISTRIBUTOR

w/TACHO DRIVE cpte., see Figure 2-14

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4" x 3/4" hex-hd.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

9/32" x 5/8" x 16 ga.

2шт.

3

3068978R91

CABLE

assy., 1, 2, 3 and 4 spark plug

1шт.

4

3044229R91

SPARK PLUG

PLUG, 14 mm thrd., - 1/2" reach spark

4шт.

5

3068974R91

COIL

cpte., ignition

1шт.

3065310R1

TAB, fasten

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16" hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
