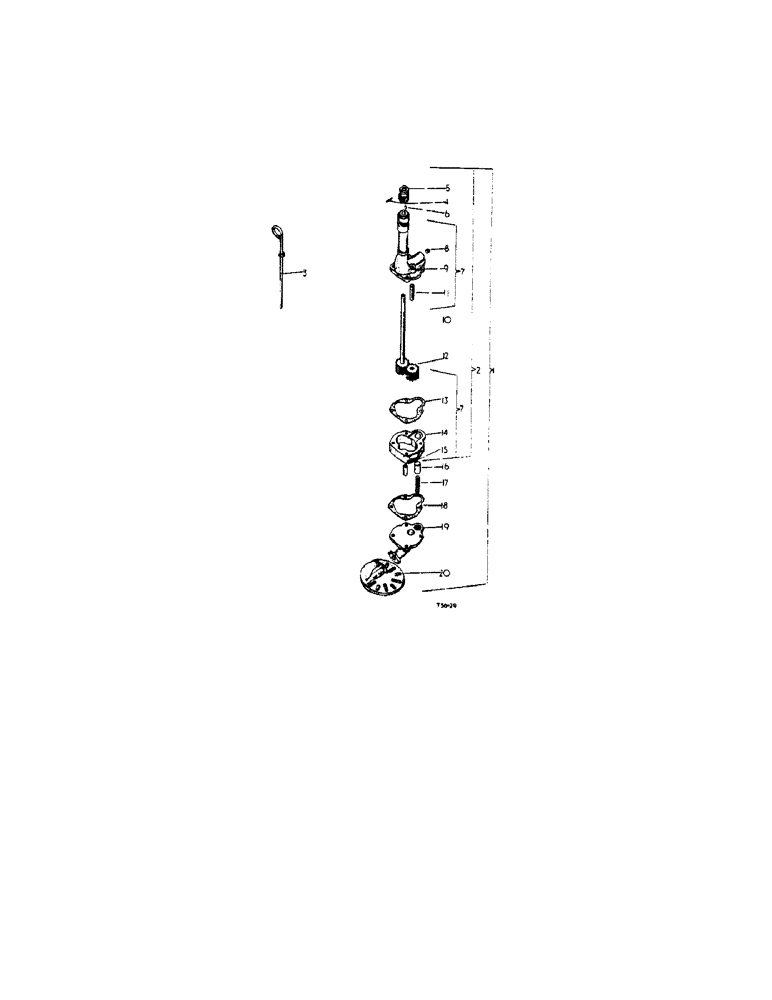

Запчасти Case IH 434 (2-15[1]) - LUBRICATION SYSTEM - GAS ENGINE (02) - ENGINE

1

3064064R91

PUMP

assy., oil, comprising: Ref. 2 - 20

1шт.

3043828R93

BODY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179528

BOLT

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3064061R1

COVER

1шт.

711558R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3064062R91

FILTER SCREEN

SCREEN

1шт.

751829R1

SPRING

1шт.

751830R2

VALVE

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3045828R93

BODY

assy., oil pump, comprising: Ref. 3 - 15

1шт.

3042570R92

CASE

BODY

1шт.

3063757R1

GEAR

1шт.

NLS

NO LONGER SERVICED

1шт.

3043830R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

1шт.

3062345R91

SHAFT

1шт.

3

706977R91

DIPSTICK

GAUGE, cpte., oil level

1шт.

4

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll (3 mm dia. x 20 mm long)

1шт.

5

3043830R1

GEAR

PINION, oil pump drive

1шт.

6

103905

KEY

Woodruff

1шт.

7

3042570R92

CASE

BODY, cpte., oil pump drive, comprising

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

CASE

1шт.

706628R1

GASKET

1шт.

932205R1

LOCK PIN,M10 x 40, Slotted

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

8

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, oil pump

1шт.

10

3062345R91

SHAFT

oil pump drive

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT, oil pump idler

1шт.

12

3063757R1

GEAR

oil pump body

1шт.

13

706628R1

GASKET

oil pump body

1шт.

14

NSS

NOT SOLD SEPARAT

CASE, oil pump gear

1шт.

15

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll (10 mm dia. x 40 mm long)

2шт.

16

751830R2

VALVE

oil pressure regulating

1шт.

17

751829R1

SPRING

oil pressure regulating

1шт.

18

711558R1

GASKET

oil pump gear

1шт.

19

3064061R1

COVER

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

4шт.

20

3064061R1

COVER

SCREEN, oil pump

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
