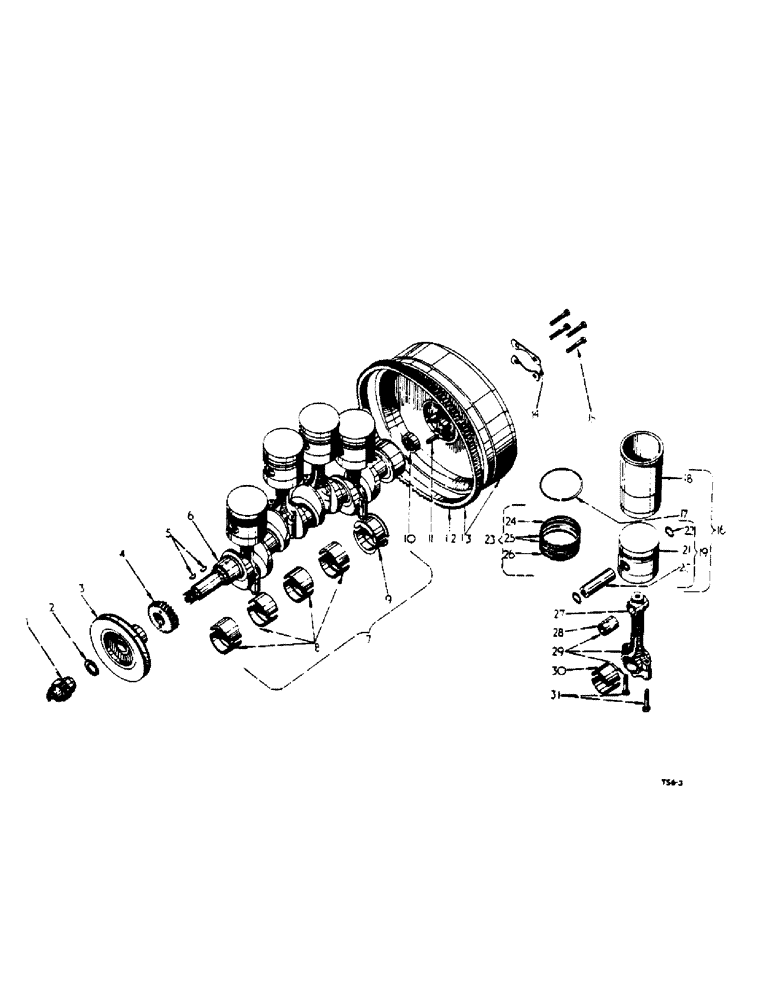

Запчасти Case IH 434 (2-08) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTON - GAS ENGINE (02) - ENGINE

1

3107767R1

TINE

NUT, starting crank

1шт.

2

138516

GASKET,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

707327R2

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft (33 T)

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

crankshaft pinion, Woodruff No. 91, 1/4" x 3/4"

2шт.

6

751303R51

CRANKSHAFT

w/BEARING 708909R93 and two PINS 24550D cpte., st'd.

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING w/BEARING 708910R91 and four BEARINGS 3064523R11 (std, size) main crankshaft

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING,w/BEARING 708911R91 and four BEARINGS 3064524R11 (.030 undersize) main crankshaft

1шт.

7

708914R91

CRANKSHAFT BEARING

BEARING w/BEARING 708915R91 and four BEARINGS 3064525R11 (.015 undersize) main crankshaft

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft main, front and center (std. size) (comprising upper and lower half)

4шт.

8

3064524R11

BEARING LINER

BEARING crankshaft main, front and center (.030 undersize) (comprising upper and lower half)

4шт.

8

3064525R11

BEARING LINER

BEARING, crankshaft main front and center (.015 undersize) (comprising upper and lower half)

4шт.

9

708910R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (std. size)

1шт.

9

708911R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (.030 undersize)

1шт.

9

708915R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (.015 undersize) (comprising two halves)

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot

1шт.

10

751846R93

BALL BEARING

clutch pilot

1шт.

10

751847R93

BALL BEARING

clutch pilot

1шт.

10

751848R94

BALL BEARING

BEARING, clutch pilot

1шт.

11

24550D

PIN

flywheel dowel

2шт.

11

3066811R1

PIN flywheel dowel, for O.S.D. crankshafts

1шт.

12

3044171R1

GEAR

flywheel ring

1шт.

13

3044170R91

FLYWHEEL, w/GEAR 3044171R1 and two PINS 141215 cpte.

1шт.

141215

PIN,5/16" x 1/2"

dowel, long 5/16" x 1/2"

2шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044201R92

SLEEVE CYLINDER

SLEEVE, w/four PISTONS 3044202R91, cyl. and pistons

1шт.

16

3044202R92

PISTON

w/SLEEVE, cpte., comprising

4шт.

3044203R93

PISTON

1шт.

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING

1шт.

704092R1

LINER, ENGINE CYLIND

SLEEVE

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cyl. sleeve packing

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, cyl.

4шт.

19

3044203R93

PISTON

assy., pin and rings, comprising

4шт.

704094R1

LARGE PIN

PIN

1шт.

3044207R3

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

3044204R1

PISTON RING

PIN

1шт.

3044205R1

PISTON RING

RING

2шт.

705993R1

RING

1шт.

20

704094R1

LARGE PIN

PIN, piston (std.)

4шт.

20

716411R1

HUB

PIN piston, .005 oversize

1шт.

21

3044207R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3044208R91

PACKAGE

SET ring, piston, comprising

1шт.

3044204R1

PISTON RING

RING

4шт.

3044205R1

PISTON RING

RING

8шт.

705993R1

RING

4шт.

24

3044204R1

PISTON RING

RING, piston compression- top

4шт.

25

3044205R1

PISTON RING

RING, piston compression

8шт.

26

705993R1

RING, oil control piston

4шт.

27

3061216R91

CONNECTING ROD

ROD, cpte., connecting (set of four), comprising

1шт.

3061214R91

PITMAN ASSY.

ROD

4шт.

27

704089R91

CONNECTING ROD

ROD, cpte., connecting (set of four) (order 3061216R91)

1шт.

28

711045R1

BUSHING

BUSH, piston pin optional

4шт.

28

3043611R1

BUSHING

BUSH, piston pin optional

4шт.

29

3061214R91

PITMAN ASSY.

ROD, assy., connecting, comprising

4шт.

3043216R1

BOLT,3/8" - 24 x 2"

2шт.

711054R1

BUSH

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

30

3070536R11

BEARING

cpte., connecting rod (std. size) (two halves)

4шт.

30

3070537R11

BEARING

cpte., connecting rod (.030 undersize) (two halves)

1шт.

30

3070538R11

JOURNAL

BEARING, cpte., connecting rod (.015 undersize) (two havles)

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

3070546R91

BEARING LINER

BEARING, cpte., connecting rod, (std. size) comprising four BEARING 3070536R11

1шт.

3070547R91

CRANKSHAFT BEARING

BEARING, cpte., connecting rod (.030 undersize) comprising four BEARING 3070537R11

1шт.

3070539R91

BEARING LINER

BEARING, cpte., connecting rod (.015 undersize) comprising four BEARING 3070538R11

1шт.

3067471R91

PACKAGE service, undersize crankshaft, comprising crankshaft listed below

1шт.

3067472R11

CRANKSHAFT, w/PIN 24550D cpte., (015 undersize)

1шт.

24550D

PIN

dowel, flywheel

2шт.

708914R91

CRANKSHAFT BEARING

SET of crankshaft main bearings

1шт.
