(8-16[2]) - REAR WHEEL ATTACHMENT - NARROW TREAD

Запчасти Case IH 434 (8-16[2]) - REAR WHEEL ATTACHMENT - NARROW TREAD (88) - ACCESSORIES

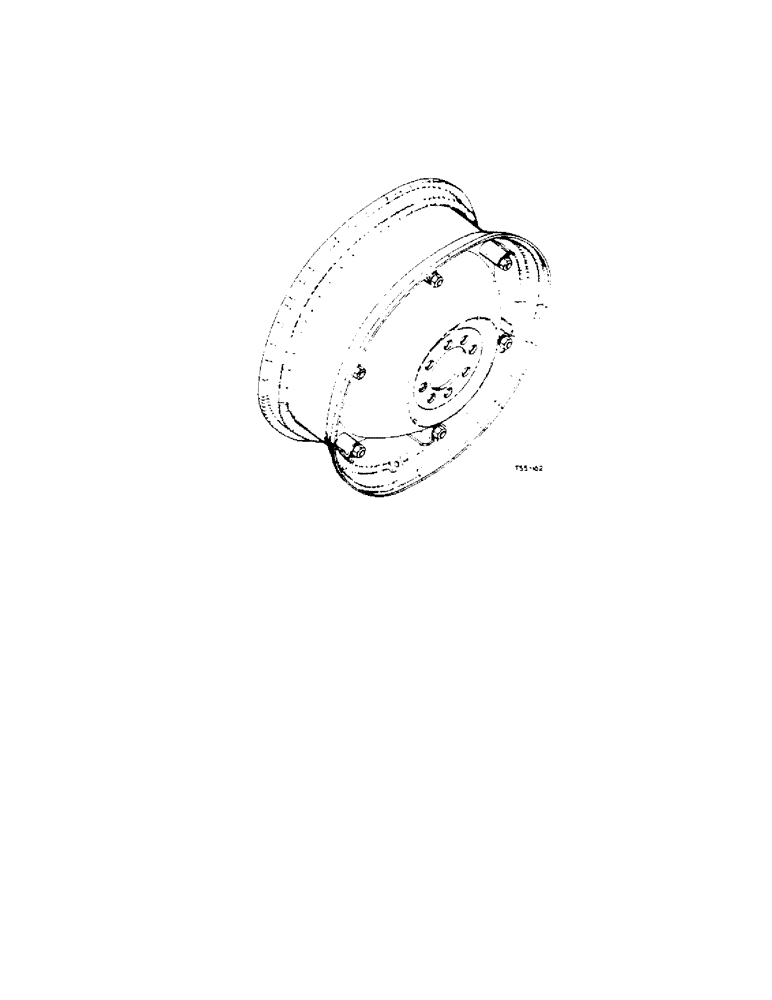

Схема запчастей Case IH 434 - (8-16[2]) - REAR WHEEL ATTACHMENT - NARROW TREAD (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3069490R91

ATTACHMENT rear wheel, W8-24, comprising:

1шт.

3068119R91

WHEEL rear rim and disc cpte., w/RIVETS, comprising:

1шт.

3068092R1

RIVET, hub cover

3шт.

3068096R91

DISC

WHEEL rear, cpte., comprising:

1шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

6шт.

3061824R1

DISC

rear wheel

1шт.

703930R2

NUT

6шт.

3105143R91

RIM, cpte., w/LUGS

1шт.

703931R1

WASHER

6шт.

3068088R1

COVER, rear wheel hub

2шт.

Выбрано товаров: 10
