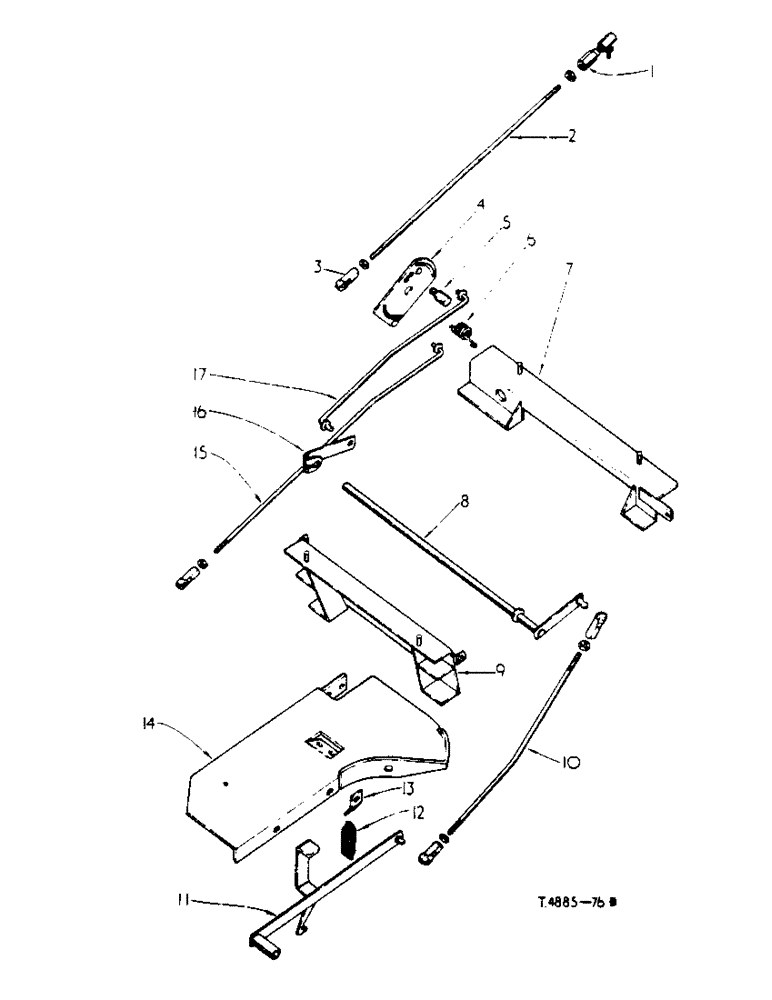

Запчасти Case IH 434 (8-15) - ROD ACTUATED FOOT ACCELERATOR ATTACHMENTS - NARROW TREAD (88) - ACCESSORIES

ATTACHMENT rod actuated foot accelerator, diesel, Serial Range: up-434NT/728

1шт.

3071215R91

ATTACHMENT rod actuated foot accelerator, diesel, up to 434NT/728, 2000 r.p.m. (Not Serviced)

1шт.

3071480R91

ATTACHMENT rod actuated foot accelerator, diesel, up to 434NT/728, 2500 r.p.m. (Not Serviced)

1шт.

3071523R91

ACCELERATOR

ATTACHMENT rod actuated foot accelerator, diesel, up to 434NT/728, 2000 and 2500 r.p.m.

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434NT/729 up

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434NT/729 up, 2000 r.p.m. (Factory Application)

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434NT/729 up, 2500 r.p.m. (Factory Application)

1шт.

3071796R92

ATTACHMENT rod actuated foot accelerator, diesel, 434NT/729 up, 2000 and 2500 r.p.m.

1шт.

3109939R91

ROD cpte., control, front, comprising:

1шт.

1

3109941R91

TRACK ROD END ASSY

END, adjustable control rod, for diesel rod actuated foot accelerator attachments, Serial Range: up-434NT/728

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

hex., jam, 1/4" UNF, for diesel rod actuated foot accelerator attachments up to 434NT/728

1шт.

2

3109940R1

ROD

control, front, for diesel rod actuated foot accelerator attachments, Serial Range: up-434NT/728

1шт.

3

3068537R1

TRUNNION

END control rod, for diesel rod actuated foot accelerator attachments, Serial Range: up-434NT/728

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

For diesel rod actuated foot accelerator attachments up to 434NT/728 Jam, 1/4"-20, G5

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

(Australia only), For diesel rod actuated foot accelerator attachments up to 434NT/728 Jam, 1/4"-20, G5

2шт.

4

3071202R11

PLATE, cpte., two way control w/PIN 706204

1шт.

706204R1

PIN governor control rod ball

1шт.

5

3071207R1

AXLE PIN

STOP, governor control

1шт.

411597

NUT, stop, 5/16"

1шт.

106261

WASHER,1/4"

5/16" x 3/4" x .065"

1шт.

6

3071204R1

SPRING

control plate return

1шт.

7

3071210R91

SUPPORT, cpte., fuel tank, front

1шт.

8

3071199R11

SHAFT, cpte., cross w/PIN 706204R1

1шт.

706204R1

PIN, governor control rod ball

1шт.

9

3071208R91

SUPPORT cpte., fuel tank rear, for 3071215R91, 3071480R91 and for diesel 2000 and 2500 r.p.m factory application rod actuated foot accelerator attachments 434NT/729 up

1шт.

10

3071198R11

ROD

cpte., governor control, comprising:

1шт.

3068537R1

TRUNNION

END, control rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

3071198R1

ROD, governor control

1шт.

11

3071219R11

PEDAL, cpte., foot accelerator

1шт.

182738

BOLT, hex-hd., 3/8" UNF x 2-1/2"

1шт.

231-2446

NUT,3/8"-24, GB

NUT, lock, 3/8" UNF

1шт.

12

3071221R1

SPRING, foot accelerator

1шт.

13

3071218R1

RETAINER, foot accelerator spring

1шт.

NLS

NO LONGER SERVICED

1шт.

14

3071216R11

FOOTPLATE cpte., R.H., for 3071215R91, 3071480R91 and for diesel 2000 and 2500 r.p.m factory application rod actuated foot accelerator attachments 434NT/729 up

1шт.

15

3071205R11

ROD cpte., control, center, comprising:

1шт.

3068537R1

TRUNNION

END, control rod

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

16558R1

WASHER

17/64" x 5/8" x 16 ga.

1шт.

16

3071201R1

LEVER, foot control

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

rd-hd., sltd., mach., 1/4" x 1"

1шт.

17

3071203R11

ROD, control, control plate to cross shaft, cpte.

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

2шт.

16558R1

WASHER

17/64" x 5/8" x 16 ga.

2шт.

3071217R1

BRACKET foot accelerator pivot, for 3071523R91 and 3071796R92

1шт.

3071209R1

BRACKET, cross shaft, for 3071523R91 and 3071796R92

1шт.
