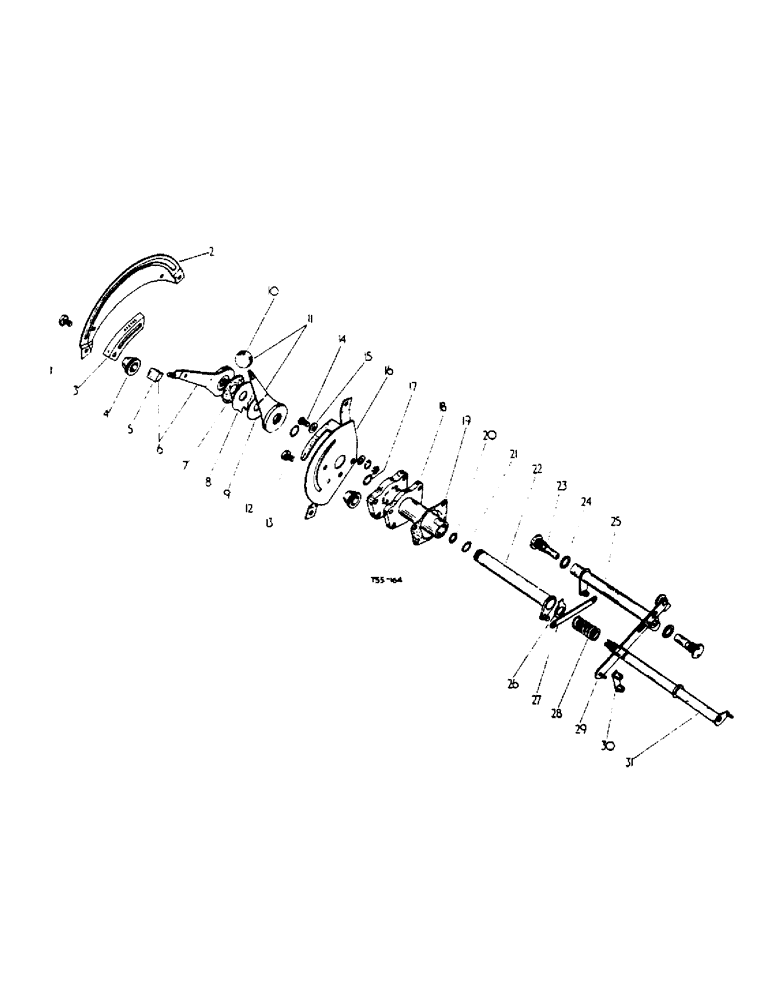

Запчасти Case IH 434 (8-11) - HYDRAULIC LIFT ATTACHMENT, VARY TOUCH, NARROW TREAD, CONTROL LEVERS - NARROW TREAD (88) - ACCESSORIES

1

3044388R1

STOP

control lever

2шт.

2

3044387R2

STRIP

quadrant

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex-hd., 5/16" x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

3068225R1

SLIDE, draft control lever

1шт.

4

3069891R1

NUT

control lever stop, 1-1/2"

1шт.

3071349R1

NUT

control lever stop, 1-1/8"

1шт.

5

3109405R1

KNOB

control lever

1шт.

6

3071346R11

LEVER control, assy., (draft) w/KNOB 3109405R1

1шт.

7

3044397R1

WASHER

friction

1шт.

8

3044402R1

PLATE

friction

1шт.

9

3044887R1

DISC

friction, outer

1шт.

10

371602R1

KNOB

control lever

1шт.

11

3071347R11

LEVER

control assy., (position) w/KNOB 371602R1

1шт.

12

704589R1

LOCKING RING

CIRCLIP, 24 mm (ext.)

1шт.

13

3072633R11

INDICATOR position control lever cpte.

1шт.

14

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

hex-hd., 3/8" x 7/8", act as position control lever stop

1шт.

120377

NUT,3/8" - 16, Gr 5

Act as position control lever stop 3/8"-16, G5

1шт.

102382

WASHER

lock, 3/8", act as position control lever stop

1шт.

120394

WASHER,3/8", SAE

WASHER plain, 13/32" x 13/16" x 16 ga.

1шт.

15

3047693R1

STOP, position control lever

1шт.

16

3072636R91

QUADRANT

control lever

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex-hd., 3/8" x 1-1/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

350818R1

O-RING,0.984" ID x 0.139" Width

1" x 1-1/4" x 1/8"

1шт.

18

3068226R1

BRACKET

quadrant

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

3049399R1

PIN, dowel, 7/16" dia. x 1-1/4" long

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

3044392R2

GASKET

quadrant bracket

1шт.

20

3048955R1

RETAINER

CIRCLIP

1шт.

21

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" x 3/32"

1шт.

22

3068232R11

SLEEVE, position control, cpte.

1шт.

23

3044417R1

PIVOT,1.6" OD, 2.5" Length

cross tube

2шт.

24

709840R1

SEALING WASHER

WASHER, Dowty

2шт.

25

3044413R1

TUBE, cross, position control, cpte.

1шт.

26

3044886R1

WASHER

tab

1шт.

27

3044412R1

LINK

connecting

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" x 11/16" x 1/16"

2шт.

28

3044407R1

SPRING

draft control crankshaft

1шт.

29

3044418R91

LINK

position control, cpte.

1шт.

30

3044423R91

ARM

position control link radius, cpte.

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

751575R1

PIN

radius arm pivot

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" dia x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

3068231R11

CRANKSHAFT

draft control, cpte.

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex., 5/8"

1шт.

NLS

NO LONGER SERVICED

plain, 21/32" x 1-5/16"

1шт.
