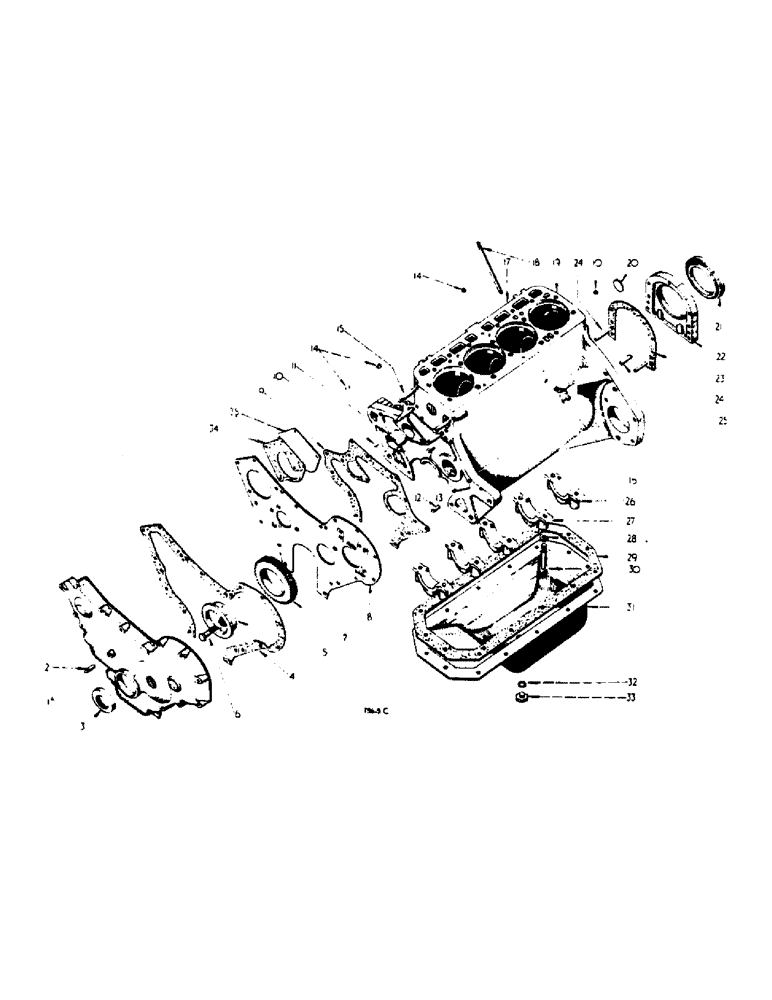

Запчасти Case IH 434 (2-06) - CRANKCASE, FRONT COVER AND OIL PAN - GAS ENGINE (02) - ENGINE

1

3044166R92

COVER, w/OIL SEAL 703844R91and POINTER 712064R1 cpte. crankcase front

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

6шт.

9635082

NUT,5/16" - 18, Gr 5

hex-hd., 5/16"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

2

712064R1

POINTER timing

1шт.

3

3108650R91

SEAL

OIL SEAL, crankshaft front

1шт.

4

708285R2

GASKET

crankcase front cover

1шт.

5

3044191R1

SHAFT, idler gear

1шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex-hd., 1/2" x 1-7/8"

1шт.

7

3044190R1

X

GEAR idler

1шт.

8

3044164R91

PLATE, w/three LOCKS 46250D and three RIVETS 110638 cpte., crankcase front

1шт.

3047230R1

SCREW

crankcase front plate, machine

2шт.

9

709903R2

GASKET

crankcase front plate

1шт.

10

444691

PLUG

sltd-hdls-pipe, 1/4"

2шт.

11

703827R1

CAMSHAFT BEARING

BUSH, camshaft - front

1шт.

11

703828R1

CAMSHAFT BEARING

BUSH camshaft - center

1шт.

11

703829R1

CAMSHAFT BEARING

BUSH camshaft - rear

1шт.

12

141244

PIN

dowel (crankshaft front)

2шт.

13

751610R1

INSERT

idler gear bolt screw lock, 1/2" UNF x 1/2"

1шт.

14

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

15

703832R1

STUD

water pump

4шт.

16

106794

VALVE

TAP, water drain optional

1шт.

16

707888R92

COCK

TAP water drain optional

1шт.

17

3044162R94

CRANKCASE

cpte., comprising

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSH

1шт.

703828R1

CAMSHAFT BEARING

BUSH

1шт.

703829R1

CAMSHAFT BEARING

BUSH

1шт.

706491R2

CAP

1шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

14шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

NLS

NO LONGER SERVICED

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703877R1

STUD

1шт.

106794

VALVE

TAP

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

18

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

19

751834R1

INSERT

heli-coil thread, 7/16"-14

14шт.

20

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" dia. type

1шт.

21

3072092R91

OIL SEAL

OIL SEAL crankshaft rear

1шт.

22

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

23

708907R2

OIL SEAL

crankshaft rear oil seal retainer

1шт.

24

141223

DOWEL,5/16" x 1"

PIN, dowel crankshaft rear oil seal retainer

2шт.

25

141287

DOWEL,1/2" x 1 1/2"

PIN, dowel

2шт.

26

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP crankshaft bearing, rear

1шт.

27

706491R2

CAP

crankshaft bearing

1шт.

28

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

29

703840R1

GASKET

crankcase pan

1шт.

30

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing cap

10шт.

31

3064063R11

SUMP

PAN, cpte., crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

32

3405H

GASKET

crankcase pan drain plug optional

1шт.

32

3043644R1

WASHER

GASKET, crankcase pan drain plug optional

1шт.

33

445096

PLUG

crankcase pan drain

1шт.

34

703851R1

GASKET

hydraulic pump opening cover

1шт.

35

703850R1

COVER

hydraulic pump opening

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

272391

BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5

hex-hd., 5/16" x 2-1/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

3/4" x 11/32" x 16 ga.

1шт.
