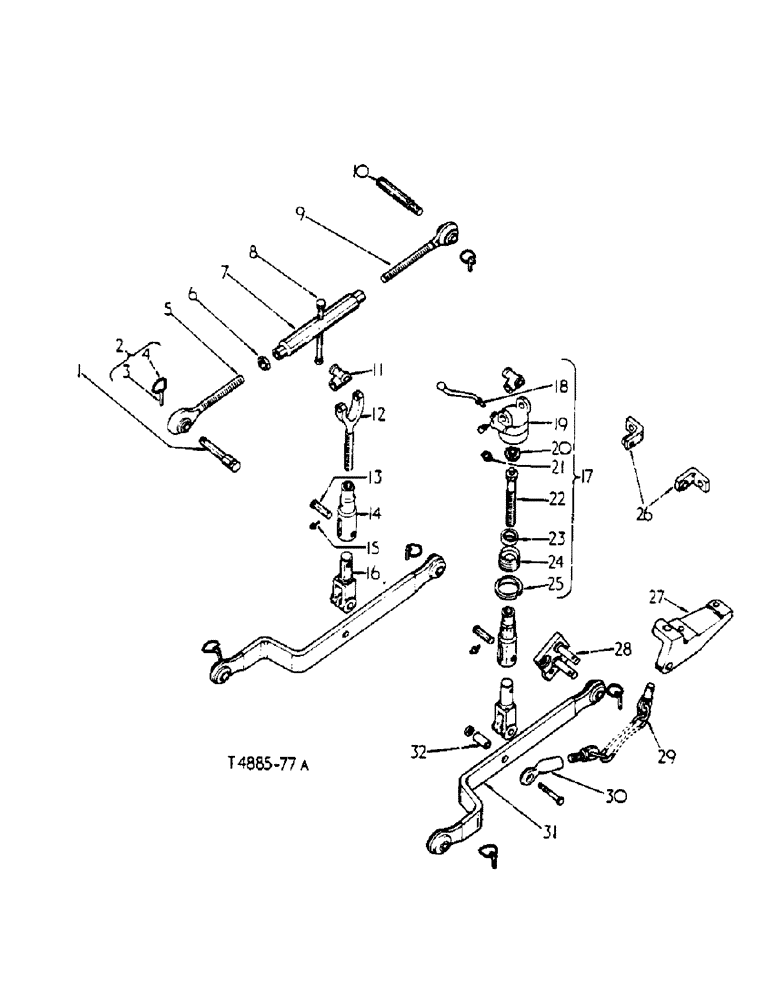

Справочник запчастей Case IH 434 (8-09) - THREE POINT LINKAGE ATTACHMENT - NARROW TREAD (88) - ACCESSORIES со схемами

3071319R91

ATTACHMENT three point linkage

1шт.

3044339R91

LINK

cpte., top, comprising

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

3074763R1

RETAINER

CIRCLIP

2шт.

704178R21

BOLT

EYEBOLT

1шт.

704177R21

BOLT

EYEBOLT

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

3074755R1

1шт.

3074756R1

1шт.

3044340R1

BUCKLE

TURNBUCKLE

1шт.

1

3074755R1

top link (cat. 11)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

11

704207R3

PIVOT

SWIVEL, lift rod

2шт.

3044309R1

std-hd., 5/8" x 3-3/8"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3069069R1

hardened, 5/8" x 3-3/4"

1шт.

12

3044350R1

ROD

lift, upper half, L.H.

1шт.

13

708884R1

AXLE PIN

PIN, std-hd., 3/4" x 2-7/16"

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

575813R1

WASHER

23/32" x 1-1/4" x 11 ga.

2шт.

14

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping, lift rod

2шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

16

3044352R1

FORK

lift rod

2шт.

17

3070645R91

ROD

lift, cpte., leveling, comprising: Ref. 18 - 25

1шт.

18

3070646R11

CRANK cpte., leveling control

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

19

3069057R1

BOX

leveling gear

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, lubrication, 7/16"

1шт.

20

3069067R1

GEAR WHEEL

GEAR, lift rod

1шт.

21

3105188R1

ROD

and GEAR leveling, 434NT/Petrol-521 up

1шт.

Including: 434NT/Diesel/986 up

1шт.

3069063R1

GEAR

leveling box pinion, Serial Range: up-434NT/Petrol-520

1шт.

Including: up to 434NT/Diesel/985

1шт.

On orders for GEAR 3069063R1 or ROD 3069066R1, furnish ROD and GEAR 3105188R1 and COLLAR 3105187R1

1шт.

3069066R1

ROD

leveling, Serial Range: up-434NT/Petrol-520

1шт.

Including: up to 434NT/Diesel/985

1шт.

On orders for GEAR 3069063R1 or ROD 3069066R1, furnish ROD and GEAR 3105188R1 and COLLAR 3105187R1

1шт.

22

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

leveling lift rod, 434NT/Petrol-521 up

1шт.

Including: 434NT/Diesel/986 up

1шт.

23

3044346R91

BALL BEARING

BEARING, 1" ball thrust (R & M) optional

1шт.

23

3044347R91

THRUST BEARING

BEARING, 1" ball thrust (Fischer) optional

1шт.

23

3044348R91

BEARING, THRUST

BEARING, 1" ball thrust (S.K.F.) optional

1шт.

23

3068049R91

BALL BEARING

BEARING, 1" ball thrust (M.C. Hines) optional

1шт.

24

3069064R1

BEARING

leveling rod

1шт.

25

3069065R1

LOCK NUT

LOCKNUT, lift rod bearing

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff, up to 434NT/Petrol-520

1шт.

Including: up to 434NT/Diesel/985

1шт.

26

704779R3

BRACKET

inner check chain

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

3068158R1

BRACKET

check chain, R.H. (Illustrated)

1шт.

3068157R1

BRACKET

check chain, L.H.

1шт.

28

3060787R11

PLATE

cpte., drawbar support, R.H. (Illustrated)

1шт.

3060786R11

PLATE

cpte., drawbar support, L.H.

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8"

8шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

8шт.

29

3071272R91

CHAIN (AG)

BOLT and CHAIN assy.

2шт.

218443

NUT

hex, jam, 3/4"

2шт.

3071273R1

NUT, check chain adjustment

2шт.

30

3063457R1

ANCHOR

check chain, up to 434NT/Diesel-870, Serial Range: up-434NT/Petrol-512

2шт.

30

3061989R1

ANCHOR

check chain, 434NT/Diesel-871 up, 434NT/Petrol-513 up

2шт.

3060311R2

BOLT

check chain bracket

2шт.

Order ANCHOR 3061989R1 w/ BOLT 3105154R1 & SPACER 3105153R1

1шт.

3105154R1

BOLT

check chain bracket

2шт.

3040353R1

NUT

lock, Philidas, 1/2", 434NT/Diesel-871 up, 434NT/Petrol-513 up

2шт.

12026R1

WASHER

plain, 17/32" x 1-1/4" x 16 ga.

2шт.

31

3068149R91

LINK, lower, cpte., w/two COTTER 704212R91

2шт.

32

3044353R1

BUSHING

BUSH lift rod, up to 434NT/Diesel-870, Serial Range: up-434NT/Petrol-512

1шт.

32

3105153R1

SPACER, 434NT/Diesel-871 up, 434NT/Petrol-513 up

1шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704212R91

COTTER PIN

COTTER implement, cpte., w/COTTER 700531R1 and RING 704187R1

4шт.

3068151R11

LINK

END cpte., lower link (cat. 1 end)

1шт.

709307R92

BOLT

EYEBOLT assy., top link (cat. 1 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

3074755R1

1шт.

709308R92

BOLT

EYEBOLT top link, assy., (cat. 11 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074756R1

1шт.

Запчасти Case IH 434 (8-09) - THREE POINT LINKAGE ATTACHMENT - NARROW TREAD (88) - ACCESSORIES
