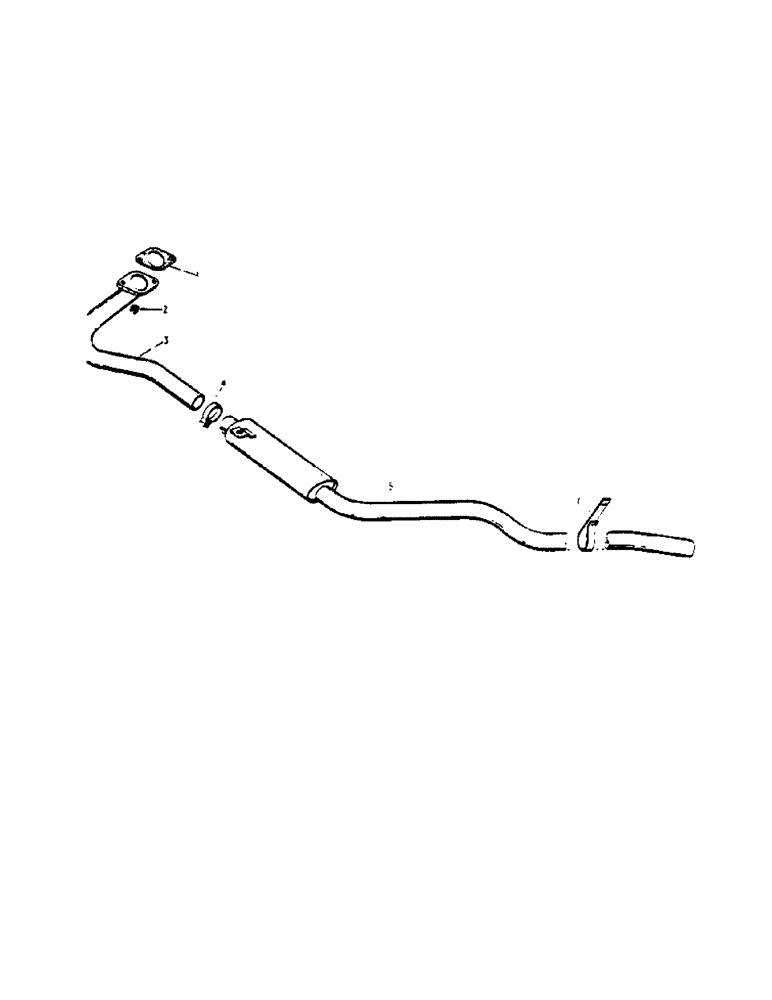

Запчасти Case IH 434 (8-08) - DOWNSWEPT EXHAUST, DIESEL - NARROW TREAD (88) - ACCESSORIES

1

704613R1

GASKET

exhaust pipe flange

1шт.

2

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

3068008R11

PIPE

exhaust manifold to silencer cpte.

1шт.

4

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

3068009R91

SILENCER exhaust cpte.

1шт.

271553

BOLT

hex-hd., 5/8" x 7/8"

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

3068010R1

CLAMP

muffler outlet pipe support

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
