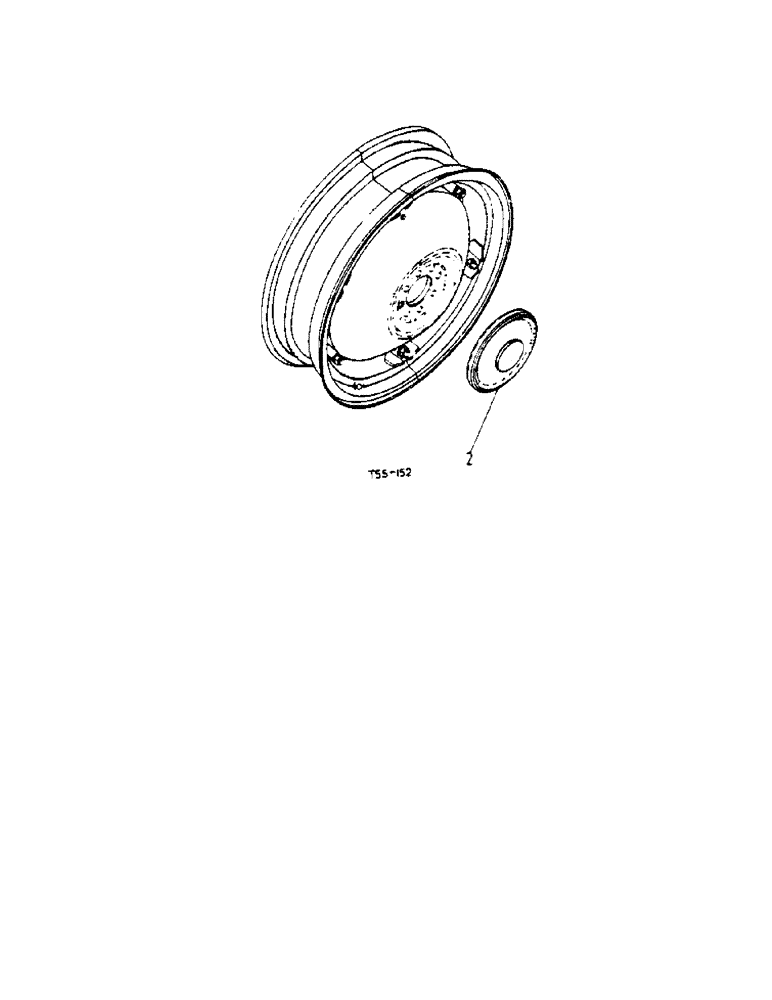

Запчасти Case IH 434 (8-07[3]) - REAR WHEEL - NARROW TREAD (88) - ACCESSORIES

1

3068086R91

WHEEL rear rim and disc, cpte., w/RIVETS, comprising: Ref. 2

2шт.

3068091R91

WHEEL

1шт.

3068092R1

RIVET

3шт.

2

3068088R1

COVER, rear wheel hub

2шт.

3068091R91

WHEEL rear cpte., comprising

1шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

6шт.

703930R1

NUT

6шт.

703928R91

NO LONGER SERVICED

RIM

1шт.

703931R1

WASHER

6шт.

3068092R1

RIVET, hub cover

3шт.

703928R91

NO LONGER SERVICED

RIM rear wheel cpte, W9 x 28

1шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim

12шт.

703930R1

NUT

rear wheel rim bolt

12шт.

703931R1

WASHER

rear wheel rim bolt

12шт.
