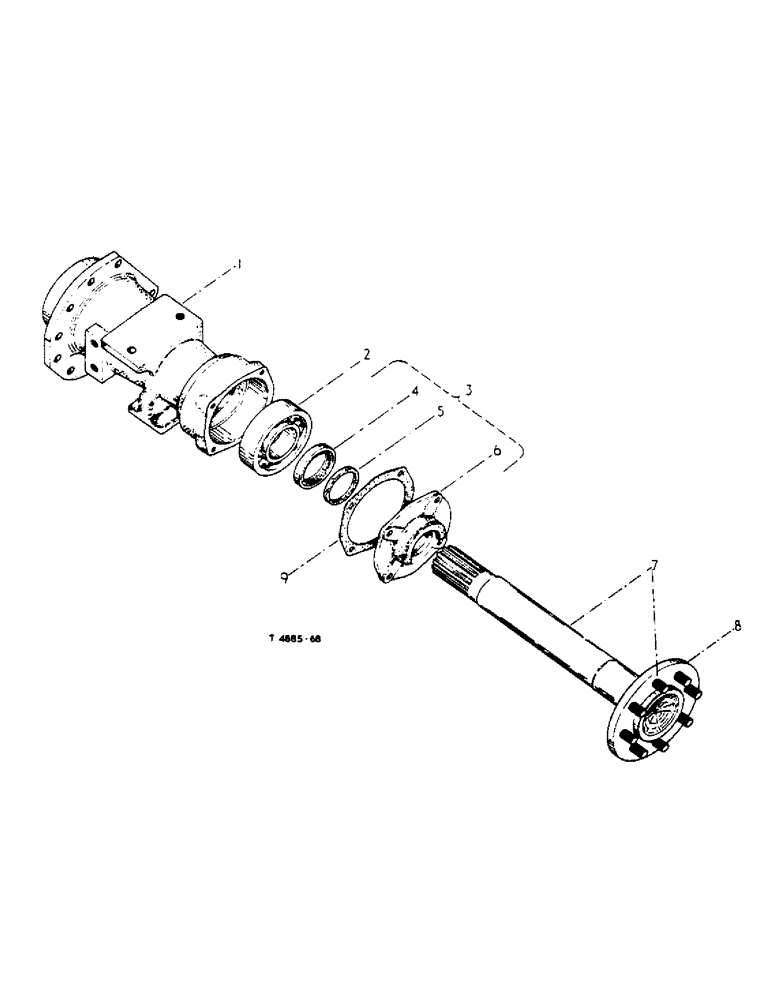

Запчасти Case IH 434 (8-06) - REAR AXLE AND CARRIER - NARROW TREAD (88) - ACCESSORIES

1

3067982R1

CARRIER, rear axle R.H. (Illustrated)

1шт.

3067981R1

CARRIER

rear axle L.H.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex-hd., 1/2" x 1-3/8"

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

2

3068248R91

BEARING

rear axle ball, outer

2шт.

3

3067984R11

RETAINER

rear axle bearing cpte., w/OIL SEAL 703917R92 and WASHER 703915R1

2шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

703917R92

OIL SEAL

rear axle oil, opt.

2шт.

4

3065987R91

SEAL rear axle oil, opt.

2шт.

4

3069988R91

SEAL

rear axle oil, opt.

2шт.

5

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

rear axle, felt

2шт.

6

NSS

NOT SOLD SEPARAT

RETAINER, rear axle bearing

2шт.

7

3067985R1

AXLE, rear

2шт.

8

3047576R2

BOLT

rear wheel hub

16шт.

9

3067983R1

GASKET, rear axle bearing retainer

2шт.
