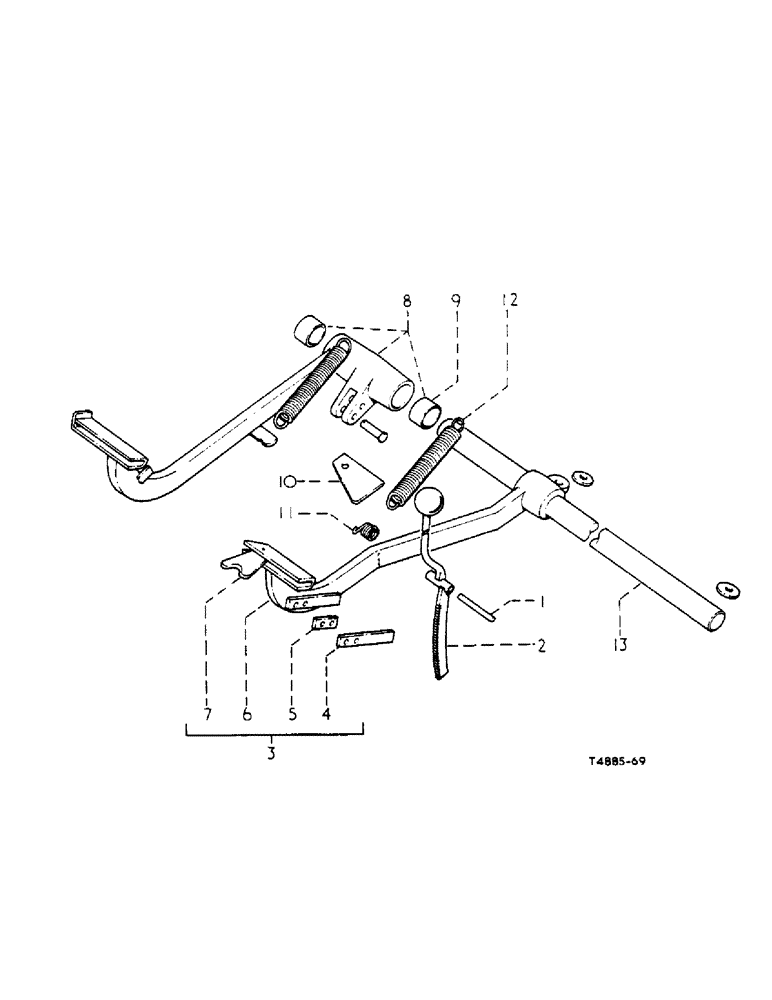

Запчасти Case IH 434 (8-04) - BRAKE PEDALS AND LOCK LEVER - NARROW TREAD (88) - ACCESSORIES

1

3048893R1

PIN

brake lock lever pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

PIN, cotter, 1/8" x 5/8"

1шт.

95-11034

WASHER,1/4"

flat, 11/32" x 11/16"

1шт.

2

3071281R91

LEVER, brake lock cpte.

1шт.

3

3071279R91

PEDAL brake assy., L.H., comprising: Ref. 4 - 7

1шт.

4

3049249R1

PLATE

brake lock lever quadrant guide

2шт.

5

3048882R1

PAWL

brake lock

1шт.

6

3071280R11

PEDAL, brake L.H. cpte.

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

442946

LEVER

groove, 1/4" x 5/8"

1шт.

51293D

SPRING

brake pedal lock tension

1шт.

8

3066292R91

PEDAL brake R.H. cpte., comprising: Ref. 9

1шт.

9

3061206R1

BUSHING

brake pedal cross shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

3069453R1

PLATE

brake lock lever stop

1шт.

11

3048888R1

SPRING

brake lock return

1шт.

12

3064186R2

SPRING

brake pedal return

1шт.

13

3066289R2

SHAFT

brake pedal

1шт.

3064192R1

WASHER

brake pedal shaft

1шт.

119179

PIN, cotter, 3/16" x 1-7/8", Serial Range: up-434NT/677

1шт.

3072088R1

RETAINER

CIRCLIP, 434NT/678 up

1шт.
