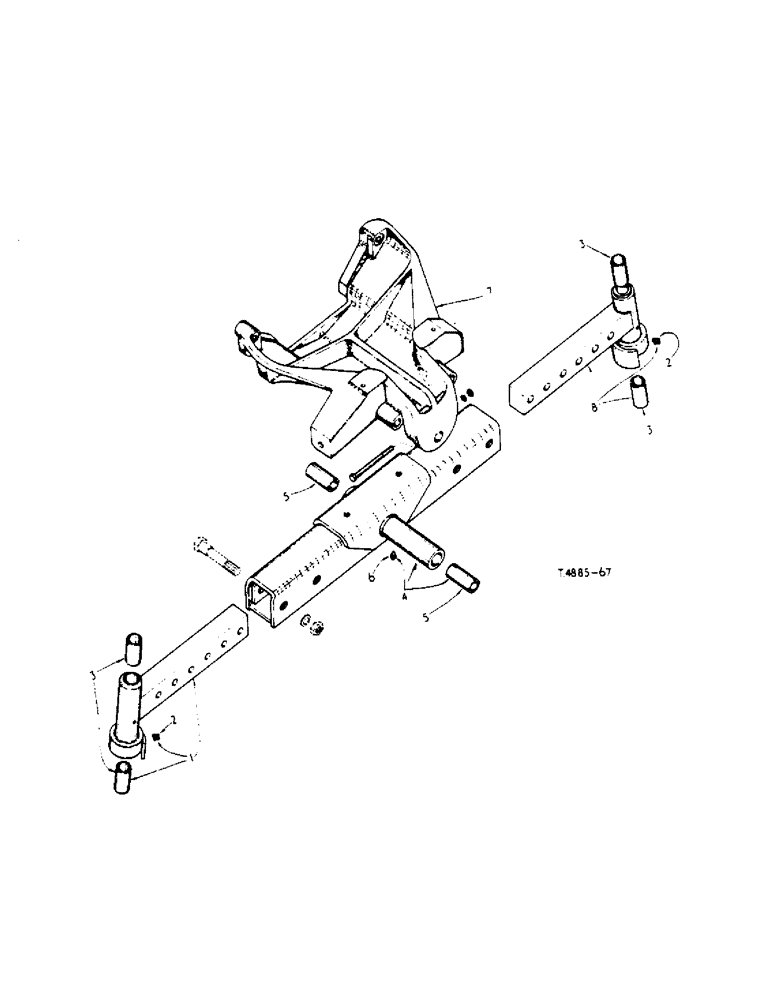

Запчасти Case IH 434 (8-02) - FRONT AXLE AND SUPPORT - NARROW TREAD (88) - ACCESSORIES

1

3067891R91

EXTENSION front axle cpte., R.H. w/two BUSH 40090D and FITTING 109461

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT, Optional 1/8"-27 x .66 lg

2шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

2шт.

3

40090D

BUSHING

BUSH, steering knuckle pivot

4шт.

4

3067887R91

AXLE, front cpte., w/two BUSH 3043856R1 and FITTING 109461

1шт.

5

3043856R1

BUSHING

BUSH, front axle pivot pin

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT, Optional 1/8"-27 x .66 lg

1шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

7

3071275R1

SUPPORT, front axle

1шт.

8

3067890R91

EXTENSION, front axle cpte., L.H.

1шт.

3072766R11

BOLT

cpte., front axle ext., opt.

1шт.

3043863R2

BOLT

front axle ext, opt.

1шт.

218297

RIGID TUBE

NUT, hex., 3/4" UNF

1шт.

3072077R1

PIECE, distance

1шт.
