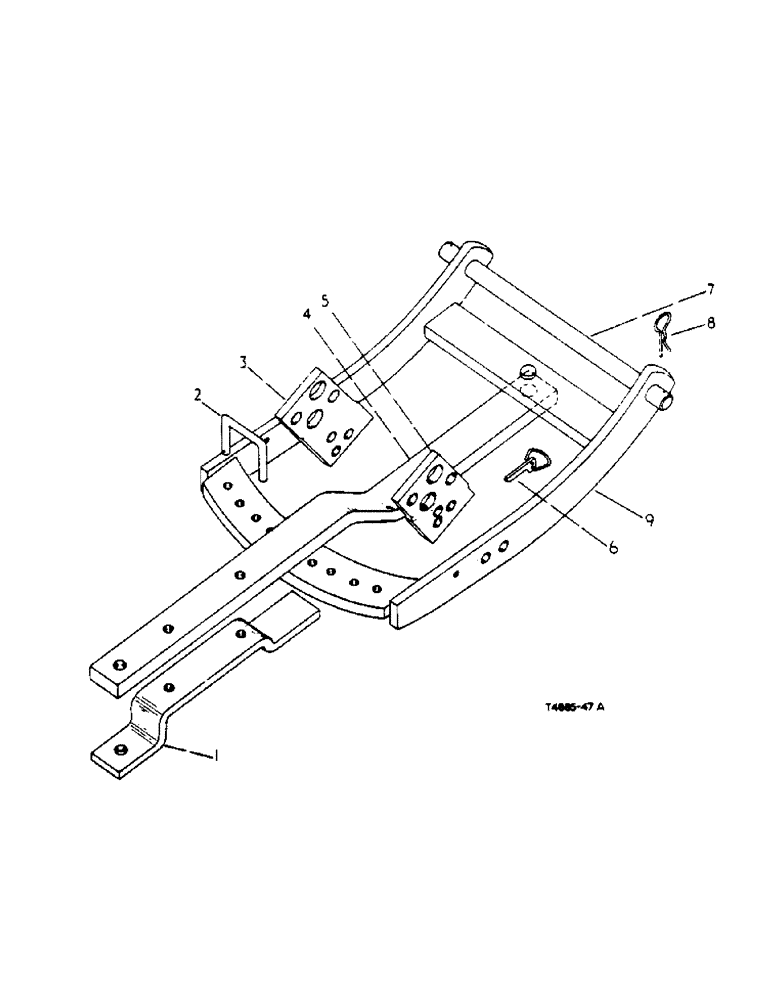

Запчасти Case IH 434 (7-20) - DRAWBAR ATTACHMENTS, 3070839R92, 3070841R92, 3070842R92 - HIGH CLEARANCE (88) - ACCESSORIES

3070839R92

ATTACHMENT high position drawbar

1шт.

High position drawbar for use with standard hydraulic lift unit and Vary Touch lift and three point linkage on tractors fitted with 540 and 745 r.p.m. P.T.O. (standard clevis)

1шт.

3070841R92

ATTACHMENT high position drawbar

1шт.

High position drawbar for use with standard hydraulic lift Vary Touch lift unit. Three point linkage on tractors fitted with 1,000 r.p.m. P.T.O. (standard clevis)

1шт.

3070842R92

ATTACHMENT high position drawbar

1шт.

High position drawbar for tractors not fitted with three point linkage but fittted with 1,000 r.p.m. P.T.O. (standard clevis)

1шт.

1

704060R3

CLEVIS

drawbar

1шт.

1

3041868R1

CLEVIS drawbar, for 3070841R92 and 3070842R92

1шт.

2

3071789R2

PIN

stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

3

704051R1

PLATE drawbar support LH, for 3070842R92

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd., 3/4" x 1-3/8", for 3070842R92

2шт.

4

3071321R1

SWINGING DRAWBAR

DRAWBAR swinging, for 3070839R92

1шт.

4

3071332R1

SWINGING DRAWBAR

DRAWBAR swinging, for 3070841R92 and 3070842R92

1шт.

NLS

NO LONGER SERVICED

hex-hd., 5/8" x 2-1/2"

2шт.

704059R3

BAR

DRAWBAR swinging, for 3070839R92

1шт.

For service in attachment 3070839R91

1шт.

102639

NUT,5/8"-11, G5

2шт.

3063450R2

DRAWBAR swinging, for 3070839R92

1шт.

For service on orders for 704059R1

1шт.

3041867R1

DRAWBAR

swinging, for 3070841R92 and 3070842R92

1шт.

For service in attachments 3070841R91 and 3070842R91

1шт.

6

704212R91

COTTER PIN

PIN, implement cotter, cpte.

1шт.

5

704052R1

PLATE,drawbar support RH, for 3070842R92

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd., 3/4" x 1-3/8", for 3070842R92

2шт.

704187R1

LOCKING RING

RING, implement cotter

1шт.

7

704058R1

PIN

drawbar frame

1шт.

8

3067210R1

CLIP

spring

2шт.

9

3071327R91

FRAME

drawbar, cpte.

1шт.

9

3043143R93

FRAME, drawbar, cpte.

1шт.

For service in attachment 3070839R91

1шт.

For service in attachments 3070841R91 and 3070842R91

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex. hd., 3/4" x 2-1/4"

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

1шт.
