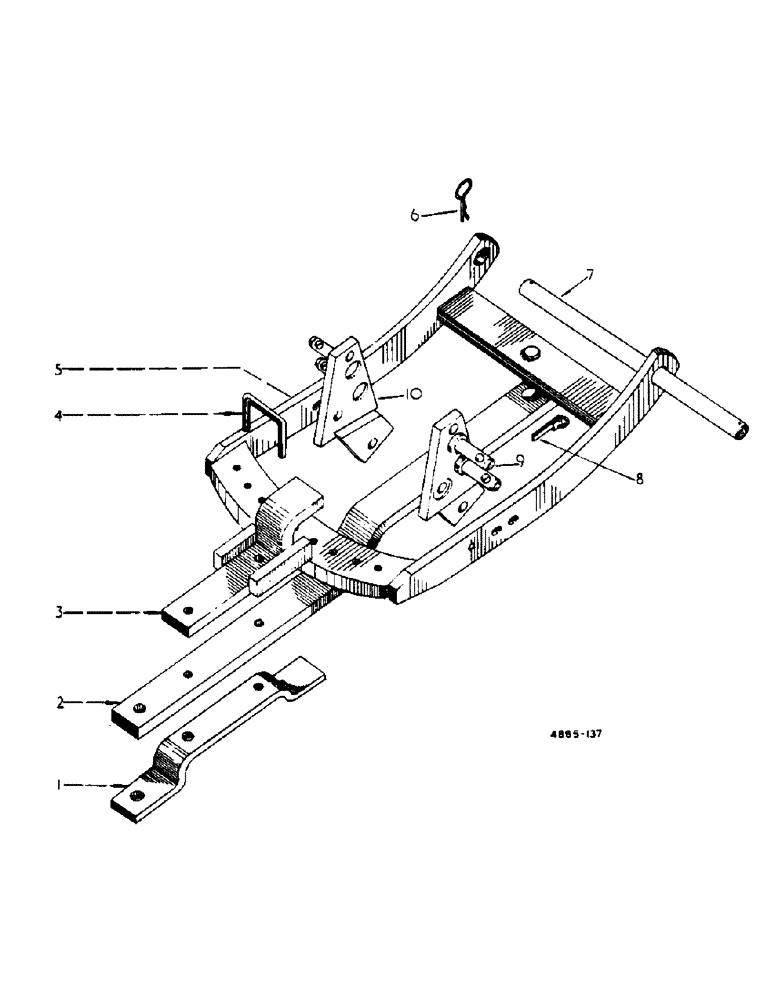

Запчасти Case IH 434 (7-18) - DRAWBAR ATTACHMENTS, 3070835R92, 3070844R92 - HIGH CLEARANCE (88) - ACCESSORIES

3070835R92

ATTACHMENT low position drawbar

1шт.

Low position drawbar for use with standard hydraulic lift or Vary Touch lift and three point linkage on high-clear tractors fitted with 540 and 745 r.p.m. P.T.O. (standard clevis)

1шт.

3070844R92

ATTACHMENT low position drawbar

1шт.

Low position drawbar for use with standard hydraulic lift unit or Vary Touch lift unit and three point linkage on high-clear tractors fitted with 1,000 r.p.m. P.T.O. (standard clevis)

1шт.

1

704060R3

CLEVIS

drawbar

1шт.

1

3041868R1

CLEVIS drawbar, for 3070844R92

1шт.

2

3071321R1

SWINGING DRAWBAR

DRAWBAR swinging, for 3070835R92

1шт.

2

3071332R1

SWINGING DRAWBAR

DRAWBAR swinging, for 3070844R92

1шт.

2

704059R3

BAR

DRAWBAR swinging, for 3070835R92

1шт.

For service in attachment 3070835R91

1шт.

2

3041867R1

DRAWBAR

swinging, for 3070844R92

1шт.

For service in attachment 3070844R91

1шт.

3043023R2

BOLT hex-hd., 5/8" x 3-1/2"

2шт.

3

3072680R91

RETAINER, drawbar cpte.

1шт.

102639

NUT,5/8"-11, G5

2шт.

4

3071789R2

PIN

stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

5

3071327R91

FRAME

drawbar cpte.

1шт.

5

3043143R93

FRAME drawbar cpte.

1шт.

For service in attachment 3070835R91

1шт.

For service in attachment 3070844R91

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex-hd., 3/4" x 2-1/4"

2шт.

6

3067210R1

CLIP

spring

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

2шт.

7

704058R1

PIN

drawbar frame

1шт.

8

704212R91

COTTER PIN

PIN, implement cotter, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

9

NOT USED

1шт.

704187R1

LOCKING RING

RING implement cotter

1шт.

10

NOT USED

1шт.
