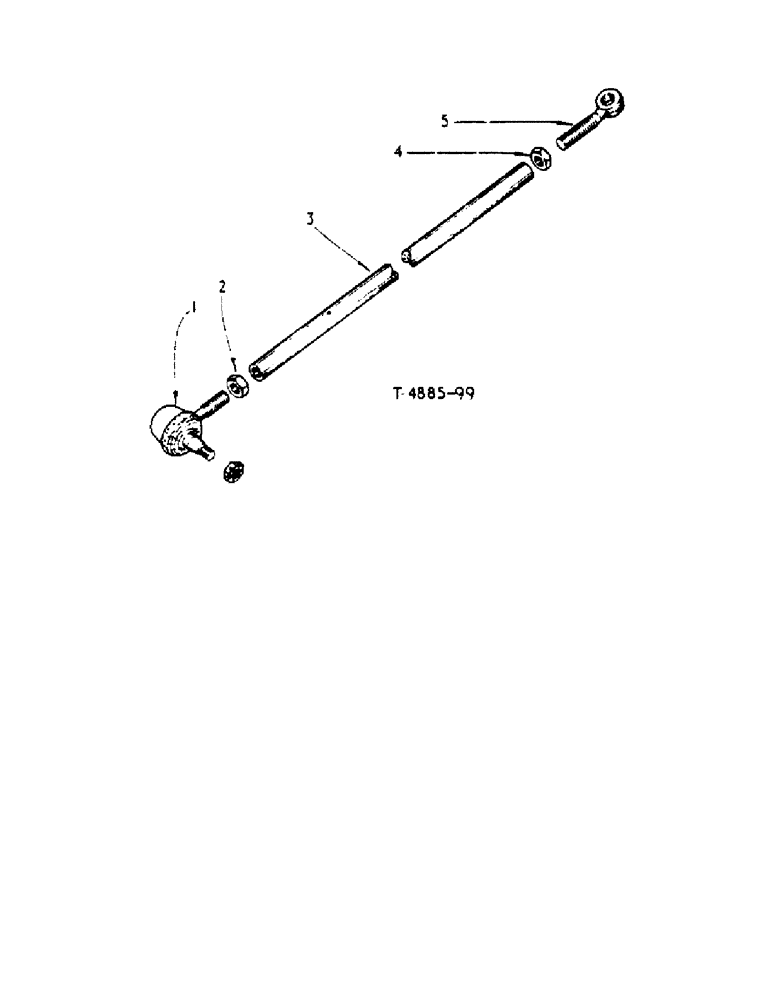

Запчасти Case IH 434 (7-16) - DRAG LINK ASSEMBLY - HIGH CLEARANCE (88) - ACCESSORIES

3070917R91

LINK

DRAG LINK ASSY., comprising: Ref. 1 - 5

1шт.

1

3040921R92

KNEE JOINT

END drag link L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

2

705247R1

NUT

lock, L.H. thread

1шт.

3

3070992R1

TUBE

SECTION drag link center

1шт.

4

705248R1

NUT

lock, L.H. thread

1шт.

5

3070991R1

END

drag link

1шт.
