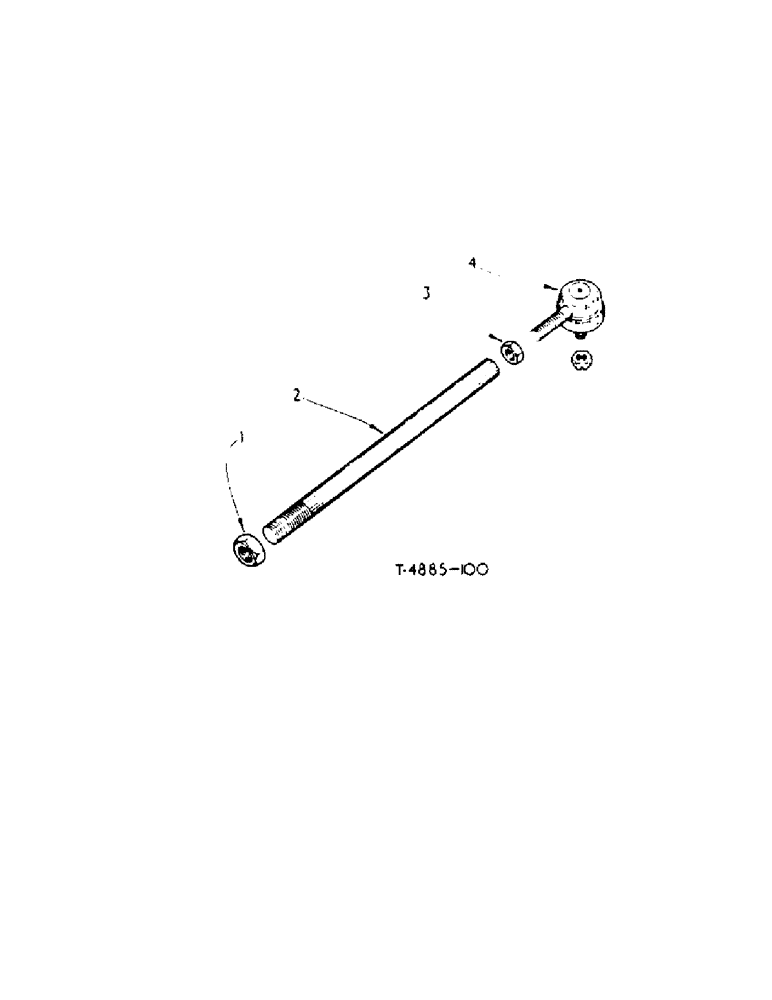

Запчасти Case IH 434 (7-16[1]) - CONNECTING LINK - HIGH CLEARANCE (88) - ACCESSORIES

3105265R91

LINK

connecting, cpte. w/two LUBRICATOR 110146R91, comprising: 110146R91

1шт.

1

3043937R1

NUT

hex., 1" UNF, jam

1шт.

2

3070993R1

TUBE

SECTION, drag link

1шт.

3

705247R1

NUT

lock L.H. thread

1шт.

4

3045309R91

BALL JOINT

END, drag link L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
