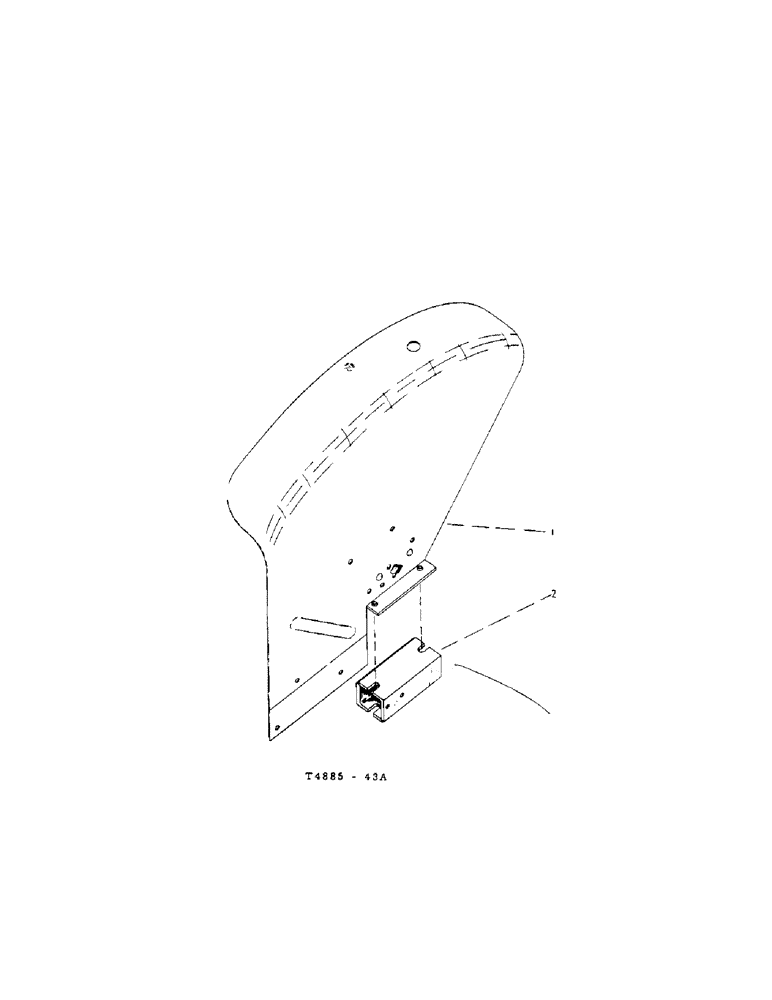

Запчасти Case IH 434 (7-15) - FENDERS - HIGH CLEARANCE (88) - ACCESSORIES

1

3071678R91

FENDER, cpte., rear R.H. (Export)

1шт.

17830R1

BOLT,Hex, 5/8" - 11 x 5 1/4"

hex-hd., 5/8" x 5-1/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

R.H. Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

R.H. Fender to Footplate 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , R.H. Fender to footplate 3/8"

1шт.

1

3071677R91

FENDER, cpte., rear L.H. (Export)

1шт.

17830R1

BOLT,Hex, 5/8" - 11 x 5 1/4"

hex-hd., 5/8" x 5-1/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

L.H. Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

NLS

NO LONGER SERVICED

L.H. Fender to Footplate Hex, 3/8"-16 x 1", G5

1шт.

102635

NUT,3/8"-16, G5

L.H. Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , L.H. Fender to footplate 3/8"

2шт.

1

3070692R92

FENDER, cpte., rear L.H. (Domestic)

1шт.

17830R1

BOLT,Hex, 5/8" - 11 x 5 1/4"

hex-hd., 5/8" x 5-1/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

L.H. Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. Fender to Footplate Hex, 3/8"-16 x 1", G5

1шт.

102635

NUT,3/8"-16, G5

L.H. Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , L.H. Fender to footplate 3/8"

2шт.

1

3070693R92

FENDER, cpte., rear R.H. (Domestic)

1шт.

17830R1

BOLT,Hex, 5/8" - 11 x 5 1/4"

hex-hd., 5/8" x 5-1/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

R.H. Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

R.H. Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , R.H. Fender to footplate 3/8"

2шт.

2

843810R92

SPACER, fender mounting

2шт.
