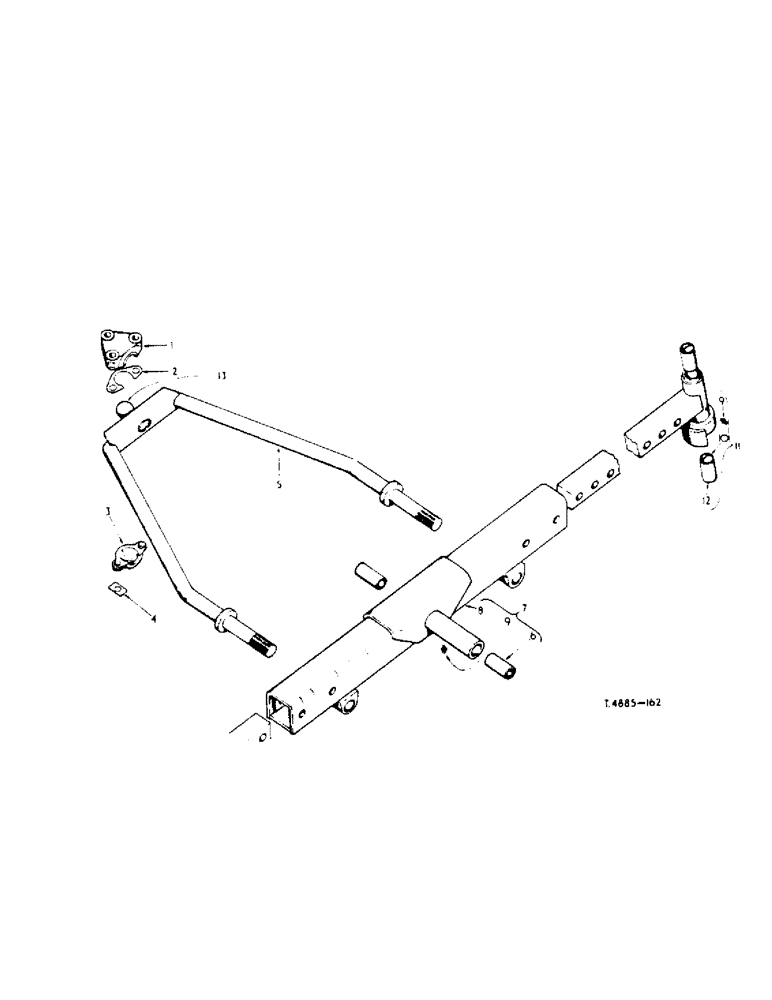

Запчасти Case IH 434 (7-12) - FRONT AXLE, EXTENSION AND STAY ROD - HIGH CLEARANCE (88) - ACCESSORIES

1

3043920R1

CUP

SOCKET, stay rod ball, for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

For power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91 Hex, 5/8"-11 x 1 3/4", G5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex-hd., 5/8" x 3", for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

1шт.

2

842389R1

SHIM

stay rod ball socket cap, for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

1шт.

3

3109613R1

CAP

stay rod ball socket, for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

1шт.

4

842391R1

PLATE

ball socket lock, for power assisted steering attachmen - factory application and for power assisted steering attachment - P/N 3070913R91

3шт.

5

3105073R91

BAR

ROD, cpte., stay, for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

1шт.

427370

NUT

hex, 1-3/8" UNF, for power assisted steering attachment - factory application and for power assisted steering attachment - P/N 3070913R91

2шт.

6

3043856R1

BUSHING

BUSH, pivot pin, for power assisted steering attachment - factory application

2шт.

7

3043916R91

AXLE

w/two BUSH 3043856R1 and LUBRICATOR 119512 cpte., front, for power assisted steering attachment - factory application

1шт.

8

NSS

NOT SOLD SEPARAT

AXLE front, for power assisted steering attachment - factory application

1шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional, For power assisted steering attachment - factory application 1/8"-27 x .66 lg

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Optional, for power assisted steering attachment - factory application 1/8"-27 x .66 lg

3шт.

10

751942R1

BUSHING

BUSH, steering knuckle pivot

1шт.

11

3069447R91

EXTENSION, w/two BUSH 751942R1 and LUBRICATOR 119512 L.H. front axle (Illust.)

1шт.

11

3069448R91

EXTENSION, w/two BUSH 751942R1 and LUBRICATOR 119512 R.H. front axle

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle L.H., (Illust.)

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle R.H.

1шт.

13

3071538R1

BALL

stay rod

1шт.

3043863R1

BOLT (SPREADER)

BOLT, front axle extension

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4" UNF

1шт.

3060918R1

BRACKET

front axle stay rod, for power assisted steering attachment - P/N 3070913R91

2шт.
