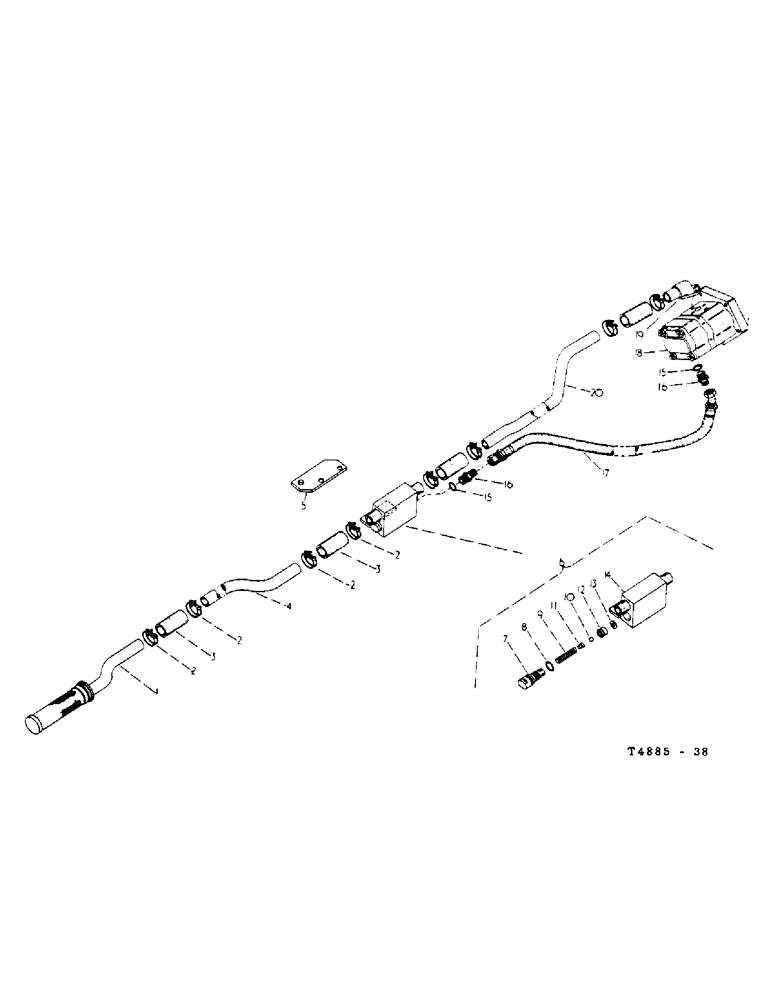

Запчасти Case IH 434 (7-11) - FLOW CONTROL VALVE AND PIPES - HIGH CLEARANCE (88) - ACCESSORIES

1

3062073R91

NO LONGER SERVICED

FILTER, cpte., suction (Draft control)

1шт.

1

3062076R93

FILTER, cpte., suction (Standard Lift)

1шт.

2

3065216R91

CLIP

hose

8шт.

3

3062074R1

HOSE

connecting, suction filter

4шт.

4

3070920R1

PIPE, suction, rear

1шт.

5

3070918R1

PLATE, relief valve, support

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, hex-hd., 5/8" x 1-1/4"

1шт.

6

3063912R91

BLOCK

cpte., relief valve assy., comprising: Ref. 7 - 14

1шт.

7

3063917R1

HOUSING

relief valve spring

1шт.

8

704378R1

O-RING,0.139" Thk x 0.85" ID

7/8" x 1-1/8" x 1/8"

1шт.

9

3063916R1

SPRING

relief valve

1шт.

10

16012

HOSE

BALL, steel, 3/8" dia.

1шт.

11

3063915R1

SEAT

RIDER, ball

1шт.

12

3063914R1

SEAT

relief valve

1шт.

13

751560R1

COPPER WASHER

9/32" x 23/32" x 16 ga.

1шт.

14

3063913R11

BLOCK, cpte., relief valve

1шт.

3046704R1

SCREW, ctsk., int. hex.

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

16

3063820R1

ADAPTER

ADAPTOR

4шт.

17

3063927R91

HOSE

pressure

1шт.

18

3063911R92

PUMP

cpte., hyd. (dual) (see Figure 7-14)

1шт.

19

3063923R91

MANIFOLD

cpte., suction

1шт.

20

3070919R1

PIPE, front, suction

1шт.
