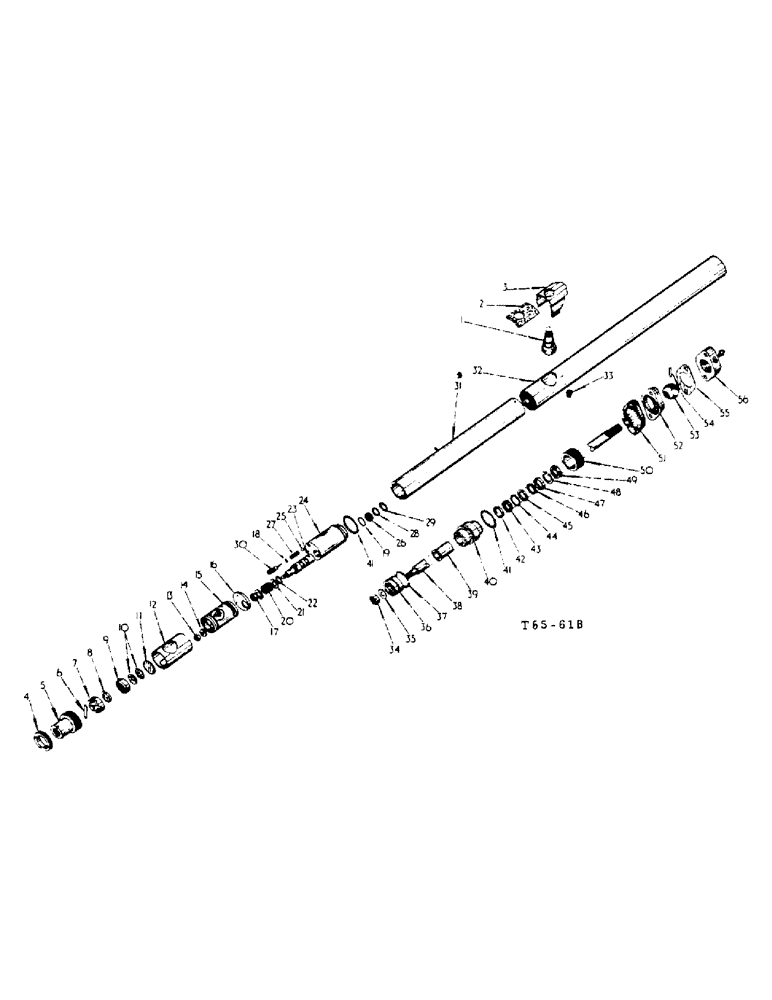

Запчасти Case IH 434 (7-09) - BOOSTER - HIGH CLEARANCE (88) - ACCESSORIES

3043938R92

STEERING CYLINDER

BOOSTER, w/ADAPTORS cpte., steering VC-1400160, comprising:

1шт.

1

3048486R1

PIN

ball, with pip

1шт.

2

3048508R1

PAD

grease retainer

1шт.

3

3048507R1

COVER

spring

1шт.

4

3048489R1

RING

lock, for extension

1шт.

5

3048488R1

EXTENSION

take-off

1шт.

6

3046133R1

CLIP

spring

1шт.

7

3064058R1

HOLDER

ball cup

1шт.

8

3046131R1

CUP

ball

1шт.

9

3046129R1

CUP

ball

1шт.

10

3046128R1

WASHER

Belleville

2шт.

11

3046127R1

WASHER

backing

1шт.

12

3046134R1

SLEEVE

locating

1шт.

13

3046118R1

NUT

on spool

1шт.

3046119R1

PIN

split

1шт.

14

3046120R1

WASHER

hardened

1шт.

15

3064496R1

SLEEVE

operating

1шт.

16

3046122R1

SPACER

1шт.

17

3064495R1

COLLAR CLAMP

COLLAR

1шт.

18

3064490R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

on plug

1шт.

19

3064491R1

O-RING

O-RING, in valve body

1шт.

20

3048483R1

SPRING

re-action

1шт.

21

3064516R1

WASHER, re-action

2шт.

22

3064492R1

RING

O-RING, on spool

1шт.

23

3046116R1

PIN, locating

2шт.

24

3064488R91

BODY

assy., valve and spool

1шт.

25

3046102R1

BALL

relief valve

1шт.

26

3046113R1

COVER

end, in valve body

1шт.

27

3046103R1

SPRING

relief valve

1шт.

28

3046112R1

RING

O-RING, end cover

1шт.

29

3046114R1

RETAINER

CIRCLIP, internal

1шт.

30

3064489R1

PLUG

and PIN, relief valve

1шт.

31

3048491R1

TUBE, inner

1шт.

Used w/1/4'' B.S.P. Ports

1шт.

31

3065312R1

TUBE

inner

1шт.

Used w/ 3/8'' B.S.P. Ports

1шт.

3048490R1

HARDWARE

PIN, split, at ends

2шт.

32

3048487R91

TUBE, outer assy.

1шт.

Used w/1/4'' B.S.P. Ports

1шт.

32

3065311R91

TUBE

outer assy.

1шт.

Used w/ 3/8'' B.S.P. Ports

1шт.

33

3046137R1

FITTING

LUBRICATOR

2шт.

34

3048496R1

NUT

1шт.

3048497R1

PIN

split

1шт.

35

3048495R1

WASHER

1шт.

36

3048493R1

PISTON

1шт.

37

3048494R1

RING

piston

1шт.

38

3048492R91

ROD

w/BALL (ball is not supplied separately) and PIN 3107878R1 piston assy.

1шт.

39

NSS

NOT SOLD SEPARAT

BUSH, bearing (order 3048498R91)

1шт.

40

3048498R91

CRANKSHAFT BEARING

BEARING, w/BUSH assy.

1шт.

41

310939R1

O-RING

1-3/4" x 2" x 1/8" (class 1.)

2шт.

42

3048500R1

SEAL

SPREADER, seal

1шт.

43

3048501R1

RING

gland

1шт.

44

3048502R1

WASHER

vellumoid

1шт.

45

3048504R1

WASHER

metal

1шт.

46

3048499R1

BLADE

SCRAPER, rubber, sq-section

1шт.

47

3048505R1

RING RACE

HOUSING, rubber scraper

1шт.

48

3048506R1

RETAINER

CIRCLIP, internal

1шт.

49

3048509R1

BLADE

SCRAPER, lip

1шт.

50

3048503R1

SCRAPER RING

RING, lock, bearing

1шт.

51

3043944R1

COVER

rubber, abutment

1шт.

52

3043943R1

CUP

ball, inner

1шт.

53

NSS

NOT SOLD SEPARAT

BALL, anchor (order 3048492R91)

1шт.

54

3107878R1

PIN

anchor ball

1шт.

55

3043941R1

SHIM

to anchor cups (.005" thick)

1шт.

56

3043939R1

CLAMP

CUP, ball, outer

1шт.

3064499R1

BOLT,Mild Steel

BANJO

2шт.

Used w/ 3/8'' B.S.P. Ports

1шт.

3064500R1

BOLT

banjo

2шт.

Used w/ 3/8'' B.S.P. Ports

1шт.

3045118R1

SEAL

WASHER, banjo bolt

4шт.

Used w/ 3/8'' B.S.P. Ports

1шт.

3043982R1

BOLT

BANJO

2шт.

Used w/1/4'' B.S.P. Ports

1шт.

3043983R1

BOLT, banjo

2шт.

Used w/1/4'' B.S.P. Ports

1шт.

704743R91

SEALING WASHER

WASHER, banjo bolt

4шт.

Used w/1/4'' B.S.P. Ports

1шт.

3064058R91

HOLDER, cpte., ball cup (6 hole equally spaced)

1шт.

3046132R1

HOLDER, cpte., ball cup (2 hole equally spaced)

1шт.

3043940R1

SHIM

to anchor cups (.0024" thick)

1шт.

3043942R1

SHIM

to anchor cups (.010" thick)

1шт.
