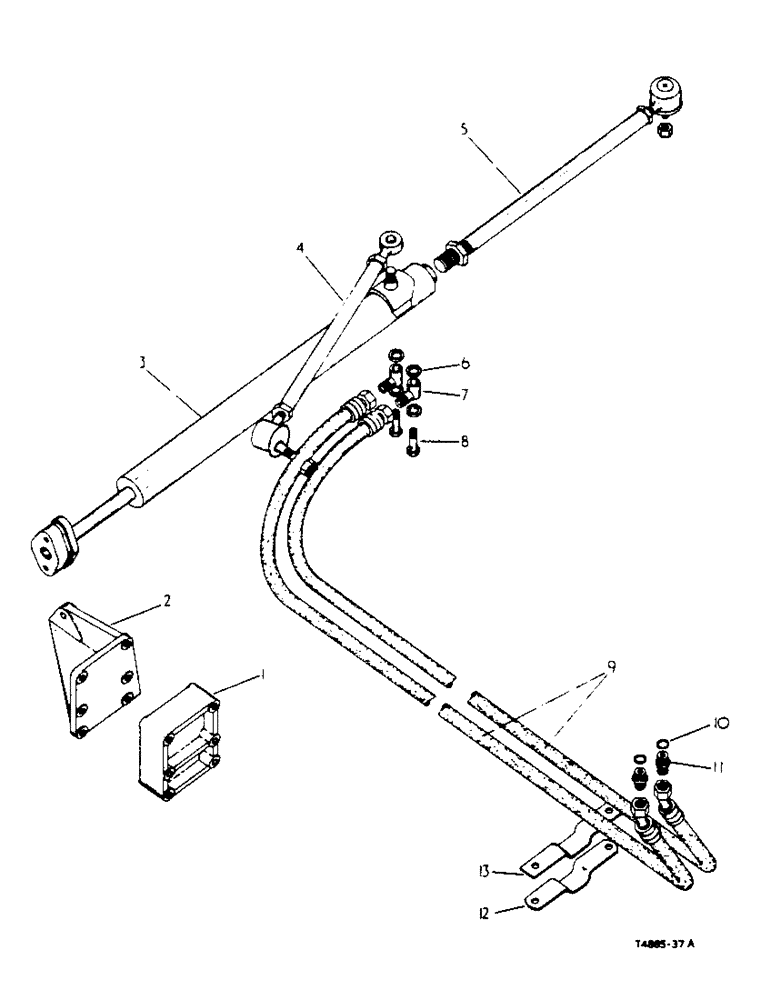

Запчасти Case IH 434 (7-08) - POWER STEERING, POWER STEERING BOOSTER AND HOSES - HIGH CLEARANCE (88) - ACCESSORIES

ATTACHMENT power assisted steering (Factory application)

1шт.

These units cannot be used with Narrow - Tread tractors, Mower Drive Attachment, Standard Hydraulic Lift Attachment or Extra High Clear Attach.

1шт.

3070912R91

ATTACHMENT power assisted steering (for machines w/STAY ROD)

1шт.

These units cannot be used with Narrow - Tread tractors, Mower Drive Attachment, Standard Hydraulic Lift Attachment or Extra High Clear Attach.

1шт.

3070913R91

ATTACHMENT power assisted steering

1шт.

These units cannot be used with Narrow - Tread tractors, Mower Drive Attachment, Standard Hydraulic Lift Attachment or Extra High Clear Attach.

1шт.

1

3070921R91

SPACER, reaction bracket

1шт.

2

3042954R1

BRACKET, reaction

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8" x 3-1/4" hex-hd.

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8" x 3-1/2" hex-hd.

2шт.

141244

PIN

DOWEL, 3/8" x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

3043938R92

STEERING CYLINDER

BOOSTER, w/ADAPTOR, cpte., steering (see Figure 7-09)

1шт.

4

3105265R91

LINK

cpte., drag w/two LUBRICATOR 110146R91 (see detail list)

1шт.

5

3070916R91

LINK

cpte., connecting (see detail list)

1шт.

6

WASHER, (see Figure 7-09)

6шт.

7

BANJO, (see Figure 7-09)

2шт.

8

BOLT, banjo (see Figure 7-09)

2шт.

9

3043978R91

HOSE

, Serial Range: valve-booster

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

class 4

2шт.

11

3063920R1

ADAPTER

ADAPTOR

2шт.

12

3043979R2

BRACKET

hose

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

3043980R2

INSERT

rubber

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
