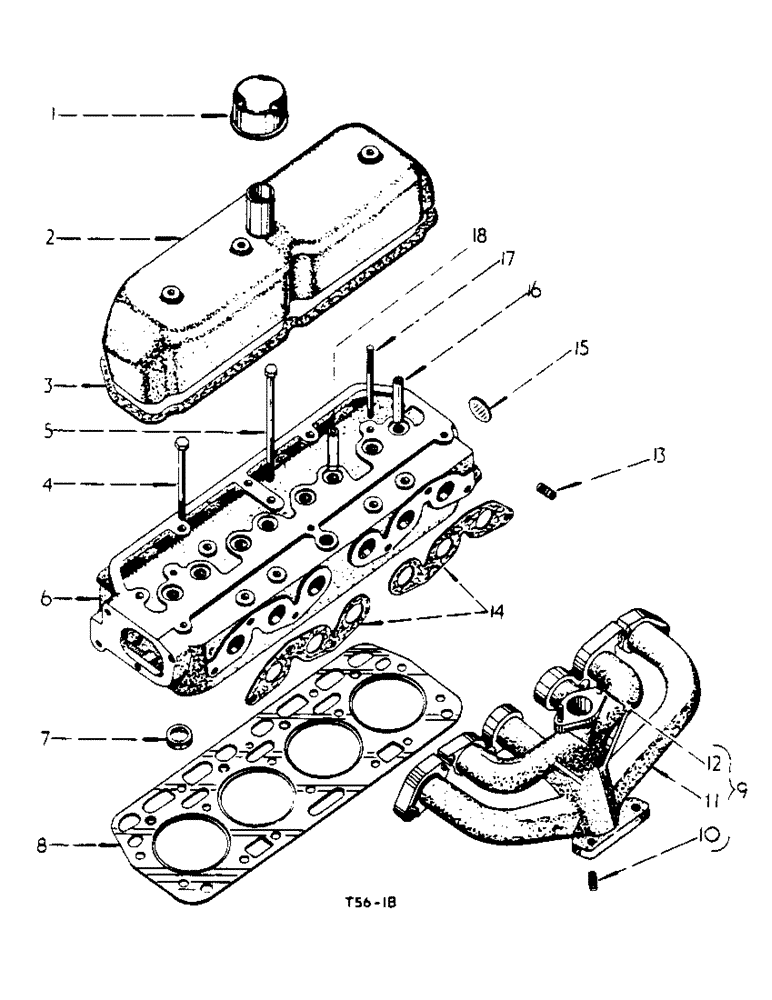

Запчасти Case IH 434 (2-03) - CYLINDER HEAD AND MANIFOLDS - GAS ENGINE (02) - ENGINE

1

3049701R91

FILTER, ELEMENT

BREATHER, cpte., see Figure 1-05

1шт.

2

703894R21

COVER

cpte., valve housing

1шт.

102635

NUT,3/8"-16, G5

2шт.

3

3069767R1

GASKET

valve cover

1шт.

4

708331R1

BOLT

BOLT, cyl-hd., short

13шт.

63116D

WASHER

cyl-hd., bolt

13шт.

5

708332R1

BOLT,Cyl Hd

cyl-hd., long

1шт.

63116D

WASHER

cyl-hd., bolt

1шт.

6

3049604R92

HEAD. w/VALVES, assy., cyl., comprising

1шт.

3049610R1

CUP

3шт.

3049605R92

HEAD

1шт.

3049609R1

LOCK

16шт.

356841R91

ROTATOR

4шт.

3049608R1

SPRING

8шт.

3044174R1

VALVE

4шт.

3044175R1

VALVE

4шт.

6

3049605R92

HEAD less valves, assy., cylinder, comprising

1шт.

3049607R1

GUIDE

4шт.

3044179R1

GUIDE

4шт.

3044181R1

INSERT

4шт.

3060306R1

INSERT

6шт.

444691

PLUG

3шт.

172574

PLUG,Exp, 1 1/2"

1шт.

703875R1

STUD

2шт.

7

3044181R1

INSERT

valve seat, exhaust

4шт.

8

3045854R1

GASKET

cyl-hd.

1шт.

9

3060305R11

MANIFOLD

w/three INSERT 3060306R1 and two STUD 3047734R1. cpte. and intake and exhaust manifold

1шт.

179842

SPACER

BOLT, hex-hd., 3/8" x 1-3/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24523D

WASHER

intake and exhaust manifold

2шт.

10

3060306R1

INSERT, helicoil thread 3/8"

3шт.

11

NSS

NOT SOLD SEPARAT

MANIFOLD, intake and exhaust

1шт.

12

3047734R1

STUD. carbutetor

2шт.

13

3060306R1

INSERT, helicoil thread, 3/8"

6шт.

14

3044210R1

GASKET

intake and exhaust manifold

2шт.

15

172574

PLUG,Exp, 1 1/2"

expansion, 1-1/2" O.D.

1шт.

16

3044179R1

GUIDE

exhaust valve

4шт.

17

703875R1

STUD

rocker shaft and bracket

2шт.

18

3049607R1

GUIDE

intake valve

4шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, sq-hd., 1/2" pipe opt.

1шт.

444691

PLUG

sq-hd., 1/2" pipe opt.

1шт.

444691

PLUG

1шт.
