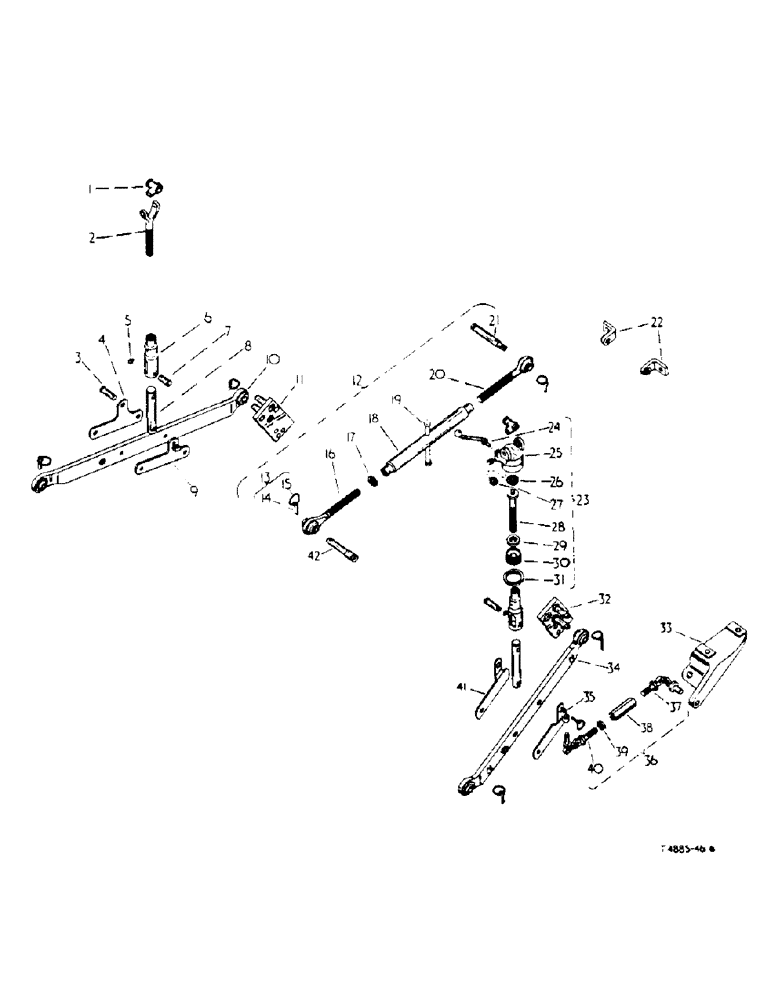

Запчасти Case IH 434 (7-06) - THREE POINT LINKAGE, 3070831R91 - HIGH CLEARANCE (88) - ACCESSORIES

3070831R91

ATTACHMENT, three point linkage

1шт.

Used only w/ Hydraulic Lift Attachment (Vary Touch)

1шт.

1

704207R3

PIVOT

SWIVEL, lift rod

2шт.

3044309R1

PIN

hardened, 5/8" x 3-3/8"

1шт.

3069069R1

PIN

hardened, 5/8" x 3-3/4"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

3044350R1

ROD

lift, upper half, L.H.

1шт.

3

PO15149

PIN, std-hd., 3/4" x 3-3/16"

2шт.

119181

PIN, cotter, 1/4" x 1-7/8"

2шт.

4

3060818R91

CLEVIS, lift rod, L.H. cpte.

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping, lift rod

2шт.

7

708884R1

AXLE PIN

PIN, std-hd., 3/4" x 2-7/16"

2шт.

575813R1

WASHER

25/32" x 1-1/4" x 11 ga.

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

8

3048304R1

ROD, lift, lower half

2шт.

9

3060823R91

CLEVIS, lift rod, R.H. cpte.

1шт.

10

3060816R11

LINK, lower, L.H. cpte., comprising

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3060818R91

CLEVIS

1шт.

3060823R91

CLEVIS

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

704051R12

PLATE

cpte., L.H. drawbar support

1шт.

NLS

NO LONGER SERVICED

CAPSCREW, hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

12

3060812R91

LINK, top. cpte., comprising

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704178R21

BOLT

EYEBOLT

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

3069861R1

NUT

1шт.

3060813R1

TURNBUCKLE

1шт.

13

704212R91

COTTER PIN

COTTER, implement, cpte., w/RING 704187R1 & COTTER 700531R1

2шт.

14

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

15

704187R1

LOCKING RING

RING, clip, implement cotter

2шт.

16

704178R21

BOLT

EYEBOLT, top link assy., (cat. 1)

1шт.

17

426899

NUT,Jam, 1"-8, G5

hex., jam, 1" (cad-pltd.)

1шт.

18

3060813R1

TURNBUCKLE, top link

1шт.

19

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex-hd., 1/2" x 7" (cad-pltd.)

1шт.

3069861R1

NUT

self-sealing, 1/2" (cad-pltd.)

1шт.

20

704177R21

BOLT

EYEBOLT, top link assy., (cat. 2)

1шт.

21

3074756R1

PIN

top link (cat. 2)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

22

704779R3

BRACKET

check chain-inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

3069056R91

ROD

leveling lift cpte., comprising:

1шт.

24

3069062R11

CRANK

leveling, control, cpte.

1шт.

25

3069057R1

BOX

gear, leveling

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

26

3069067R1

GEAR WHEEL

GEAR, lift rod

1шт.

27

3069063R1

GEAR

PINION, leveling box

1шт.

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

28

3069066R1

ROD

leveling

1шт.

29

3044346R91

BALL BEARING

ball, 1", opt.

1шт.

29

3044347R91

THRUST BEARING

BEARING, thrust, ball, 1", opt.

1шт.

29

3044348R91

BEARING, THRUST

ball, 1", opt.

1шт.

29

3068049R91

BALL BEARING

BEARING, thrust, ball, 1", opt.

1шт.

30

3069064R1

BEARING

leveling rod

1шт.

31

3069065R1

LOCK NUT

lift rod bearing nut

1шт.

32

704052R12

PLATE

cpte., R.H. drawbar support

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

CAPSCREW, hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

33

3060826R1

BRACKET, check chain, L.H.

1шт.

3060827R1

BRACKET, check chain, R.H. (Illustrated)

1шт.

17856R1

BOLT, hex-hd., 5/8" x 7-3/4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

34

3060817R91

LINK, lower, R.H. cpte., comprising

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3060819R91

CLEVIS

1шт.

3060822R91

CLEVIS

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

3060819R91

CLEVIS, lift rod, R.H. cpte.

1шт.

36

3048454R91

X

CHAIN, check, assy., comprising:

2шт.

37

3048456R91

CHAIN (AG)

CHAIN, check, tractor end, cpte.

1шт.

38

3048314R1

NUT

adjustment, check chain

1шт.

39

218443

NUT

hex., jam, 3/4"

1шт.

40

3048455R91

CHAIN (AG)

CHAIN, check link end cpte.

1шт.

41

3060822R91

CLEVIS, lift rod, L.H. cpte.

1шт.

42

3074755R1

PIN

top link (cat. 1)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704212R91

COTTER PIN

COTTER, implement w/COTTER 700531R1 & RING 704187R1

4шт.

700531R1

NO LONGER SERVICED

COTTER, implement

4шт.

704187R1

LOCKING RING

RING, implement cotter

4шт.

709307R92

BOLT

EYEBOLT top link assy., (cat. 1 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074755R1

PIN

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

709308R92

BOLT

EYEBOLT top link assy., (cat. 2 end), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074756R1

PIN

1шт.

3074662R1

HOLDER, lynch pin

4шт.
