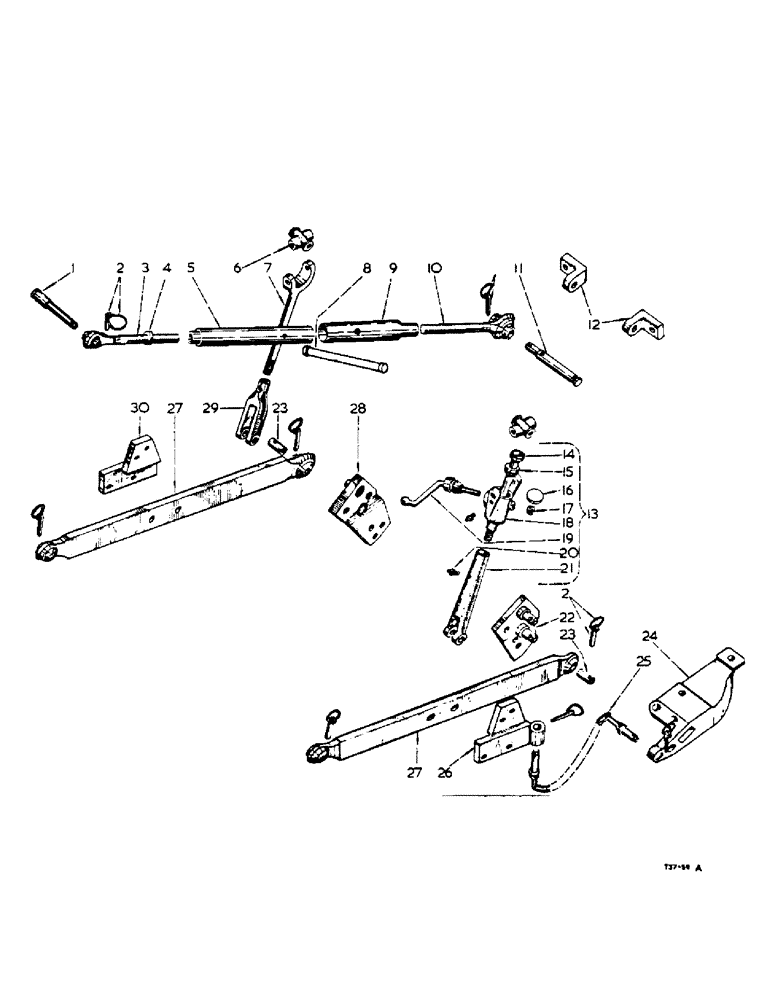

Запчасти Case IH 434 (7-04) - THREE POINT LINKAGE, 3070834R91 - HIGH CLEARANCE (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
3070834R91
ATTACHMENT three point linkage
1шт.
Used only with Hydraulic Lift Attachment (Mechanical Depth Control)
1шт.
751955R92
LINK, top, telescoping, cpte., comprising
1шт.
17926R1
BOLT
1шт.
704212R91
COTTER PIN
COTTER
2шт.
704178R21
BOLT
EYEBOLT
1шт.
704177R21
BOLT
EYEBOLT
1шт.
3074660R11
HANDLE
1шт.
704179R1
LINK
1шт.
751956R1
LINK
1шт.
218445
NUT,Jam, 1"-8, G5
1шт.
1
3074755R1
PIN
top link (cat. 1)
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
2
704212R91
COTTER PIN
COTTER, implement, assy., w/COTTER 700531R1 & RING 704187R1
10шт.
700531R1
NO LONGER SERVICED
COTTER, implement
10шт.
704187R1
LOCKING RING
RING, clip implement cotter
10шт.
3
704178R21
BOLT
EYEBOLT, top link cpte., (cat. 1)
1шт.
4
218445
NUT,Jam, 1"-8, G5
jam, hex., 1"
1шт.
5
704179R1
LINK
top, telescoping (half) (cat. 2 end)
1шт.
6
704207R2
NO LONGER SERVICED
SWIVEL, lift rod
2шт.
3044309R1
PIN
straight
2шт.
7
704541R3
ROD
lift upper half
1шт.
8
3074660R11
HANDLE
cpte.
1шт.
9
751956R1
LINK, top, telescoping (half) cpte.
1шт.
10
704177R21
BOLT
EYEBOLT, top link assy., (cat. 2)
1шт.
11
3074756R1
PIN
top link (cat. 2)
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
12
704779R3
BRACKET
check chain inner
2шт.
17439R1
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2
hex-hd., 1/2" x 1-1/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
13
704196R96
ROD
lift leveling cpte., comprising
1шт.
704197R91
BALL BEARING
BEARING
1шт.
704195R4
BOX
1шт.
704200R32
CRANK
1шт.
704203R1
COLLAR
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
704205R3
NUT
1шт.
435-1614
GROOVED PIN,3/16" x 7/8", Type A
Pin, Grooved, 3/16" x 7/8", Type A
1шт.
172578
PLUG,Exp, 1 3/4"
1шт.
704198R1
ROD
1шт.
14
704198R1
ROD
leveling
1шт.
15
704197R91
BALL BEARING
BEARING, ball, thrust, 20 mm, opt.
1шт.
704201R91
BALL BEARING
BEARING, ball, thrust, 20 mm, opt.
1шт.
704202R91
BALL BEARING
BEARING, ball, thrust, 20 mm, opt.
1шт.
16
172578
PLUG,Exp, 1 3/4"
expansion, 1-3/4" O.D.
1шт.
17
704203R1
COLLAR
leveling control crank
1шт.
435-1614
GROOVED PIN,3/16" x 7/8", Type A
Pin, Grooved, 3/16" x 7/8", Type A
1шт.
18
704195R4
BOX
leveling
1шт.
19
704200R32
CRANK
leveling control
1шт.
20
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
21
704205R3
NUT
leveling rod
1шт.
22
704052R12
PLATE
drawbar support, cpte., R.H.
1шт.
13-1222
BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5
CAPSCREW hex-hd., 3/4" x 1-3/8"
4шт.
114610
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
4шт.
23
704194R2
BUSHING
BUSH lower link
2шт.
24
704214R2
BRACKET
check chain bracket R.H. (Illustrated)
1шт.
18047R1
BOLT
hex-hd., 5/8" x 11"
4шт.
102639
NUT,5/8"-11, G5
4шт.
25
3063509R91
CHAIN (AG)
CHAIN, check assy.
2шт.
26
751951R93
BRACKET, lower link, cpte., R.H.
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
hex-hd. 5/8" x 2"
2шт.
102639
NUT,5/8"-11, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
27
751948R94
LINK, w/two HOLDER 3074662R1 lower, assy.
2шт.
28
704051R12
PLATE
drawbar support cpte., L.H.
1шт.
29
704542R5
ROD
lift, lower half
1шт.
30
751950R93
BRACKET lower link, cpte., L.H.
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
hex-hd., 5/8" x 2"
2шт.
102639
NUT,5/8"-11, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
3044310R1
PIN, special
2шт.
720631R1
LINCH PIN
CLIP, spring
2шт.
709307R92
BOLT
EYEBOLT top link assy. (cat. 1), comprising
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
704178R21
BOLT
EYEBOLT
1шт.
3074755R1
PIN
1шт.
218445
NUT,Jam, 1"-8, G5
1шт.
709308R92
BOLT
EYEBOLT top link, assy. (cat. 2), comprising
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
704177R21
BOLT
EYEBOLT
1шт.
3074756R1
PIN
1шт.
704190R51
END
lower link, cpte. (cat. 1)
1шт.
704191R51
END
lower link, cpte. (cat. 2)
1шт.
218197
NUT,3/4"-16, G5
hex., 3/4" UNF
4шт.
3074662R1
HOLDER lynch pin
4шт.
Выбрано товаров: 87
