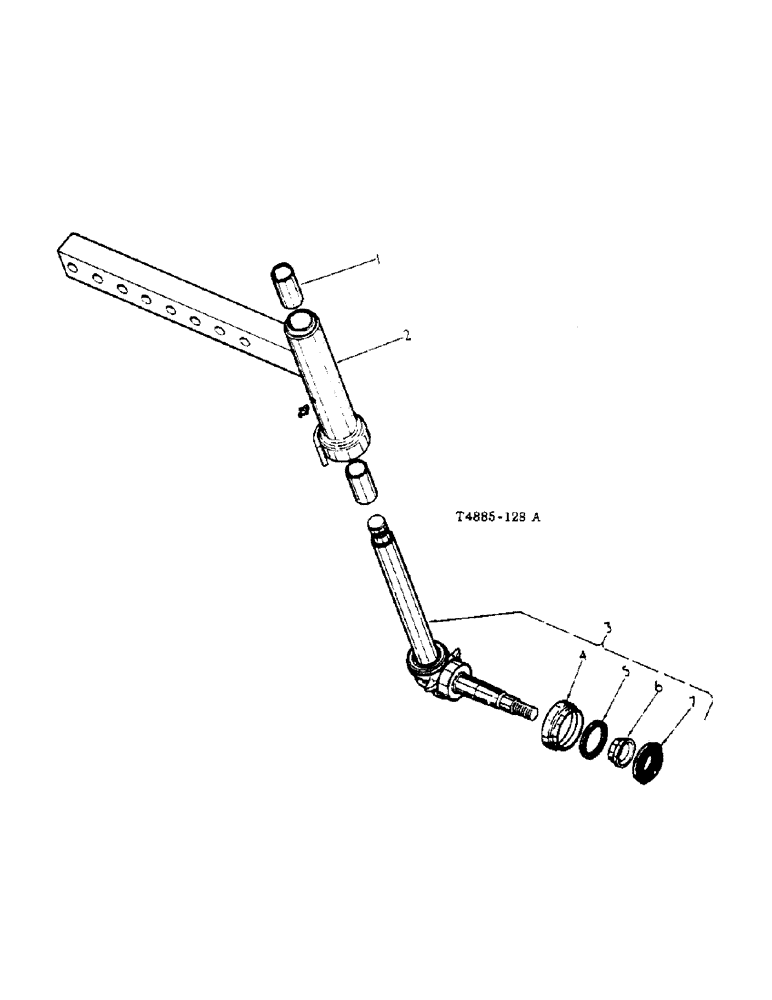

Запчасти Case IH 434 (6-122) - INDUSTRIAL FRONT FENDER ATTACHMENT, FRONT AXLE EXTENSION - ATTACHMENTS (88) - ACCESSORIES

1

751942R1

BUSHING

BUSH, steering knuckles pivot pin

4шт.

2

3066599R12

EXTENSION, w/two BUSH 751942R1 & LUBRICATOR 109461 cpte., front axle L.H. (Illustrated)

1шт.

2

3066600R12

EXTENSION, w/two BUSH 751942R1 & LUBRICATOR 109461 cpte., front axle R.H.

1шт.

3

3066602R91

STEERING KNUCKLE

KNUCKLE, steering cpte., L.H. (Illustrated), comprising: Ref. 4 - 7

1шт.

3

3066603R91

KNUCKLE, steering cpte., R.H., comprising: Ref. 4 - 7

1шт.

4

48541D

SHIELD

front wheel dust

1шт.

5

50259D

WASHER

WASHER, front wheel felt

1шт.

6

50270D

SPACER

front wheel bearing

1шт.

7

3042600R91

RH DOOR LOCK

SEAL, front wheel oil, opt.

1шт.

7

704083R92

OIL SEAL

SEAL, front wheel oil, opt.

1шт.

7

48539DA

PACKING RING

SEAL, front wheel oil, opt.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Opt. 1/8"-27 x .66 lg

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.
