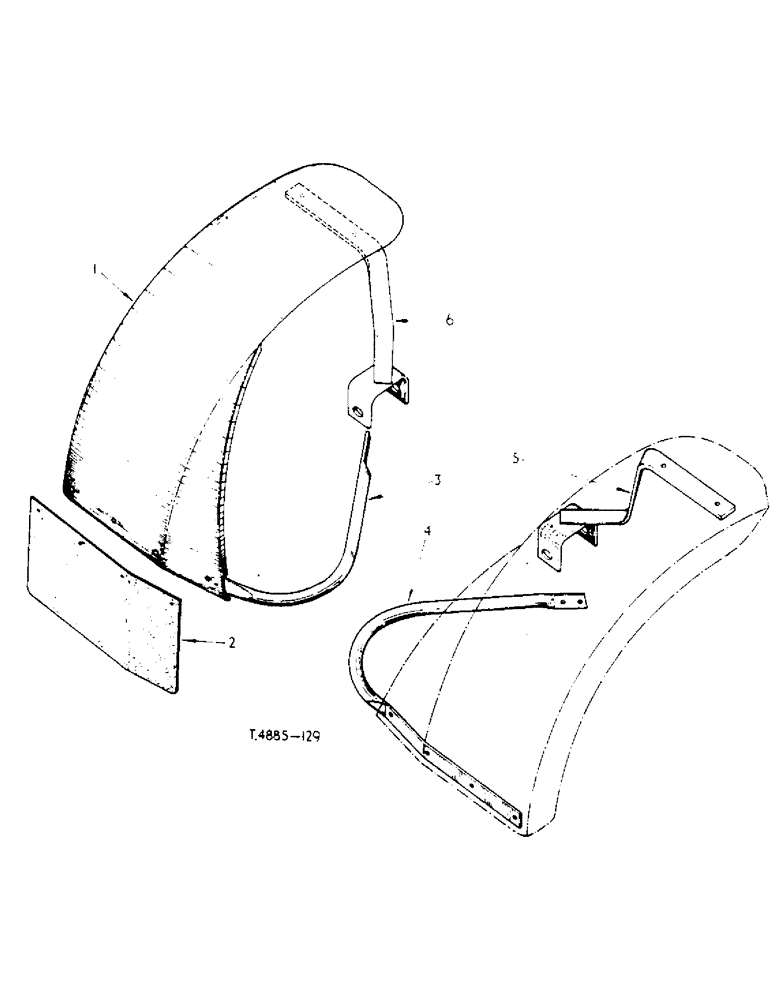

Запчасти Case IH 434 (6-121) - INDUSTRIAL FRONT FENDER ATTACHMENT, FRONT FENDERS - ATTACHMENTS (88) - ACCESSORIES

1

709215R11

FENDER, front cpte., L.H. (Illustrated)

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

mach., sltd., truss-hd., 5/16" x 3/4"

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

709482R1

FLAP

front fender mud

2шт.

3

709209R1

SUPPORT

STAY, front fender L.H.

1шт.

179882

PIN

hex-hd., 1/2" x 1-1/8"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

3072507R11

BRACKET

front fender support cpte., L.H.

1шт.

5

709210R1

STAY, front fender R.H.

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex-hd., 1/2" x 1-1/8"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

3072508R11

BRACKET

front fender support cpte., R.H.

1шт.

709216R11

FENDER, front cpte., R.H.

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

mach., sltd., truss-hd., 5/16" x 3/4"

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
