Запчасти Case IH 434 (6-115) - TRACTOR CAB ATTACHMENT, CAB, REAR VIEW - ATTACHMENTS (88) - ACCESSORIES

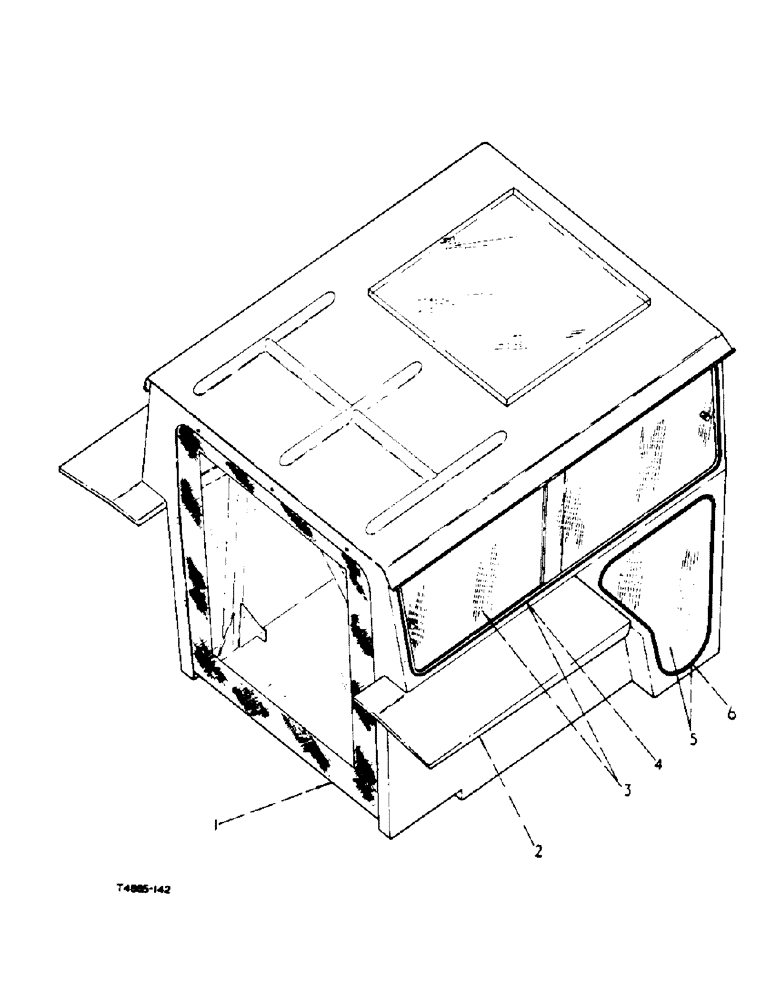

Схема запчастей Case IH 434 - (6-115) - TRACTOR CAB ATTACHMENT, CAB, REAR VIEW - ATTACHMENTS (88) - ACCESSORIES
3
6
2
4
5
1

Артикул

Название

Примечание

Количество

1

3073338R1

CURTAIN

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

3шт.

3061228R91

LOCK NUT

lock, 1/4"

3шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

3шт.

2

3073339R1

MUDFLAP

MUDWING, RH.

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex-hd., 3/8" x 3"

3шт.

3063560R1

LOCK NUT

lock, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/32" I.D.

3шт.

3

3073330R91

GLASS

WINDOW, cab, sliding, cpte. w/RUBBER 3073331R1

1шт.

4

3073331R1

STRIP

RUBBER, sliding window

1шт.

5

3073332R91

GLASS

WINDOW, cab, cpte., lower w/RUBBER 3073333R1

1шт.

6

3073333R1

RUBBER

cab lower window

1шт.

Выбрано товаров: 12
