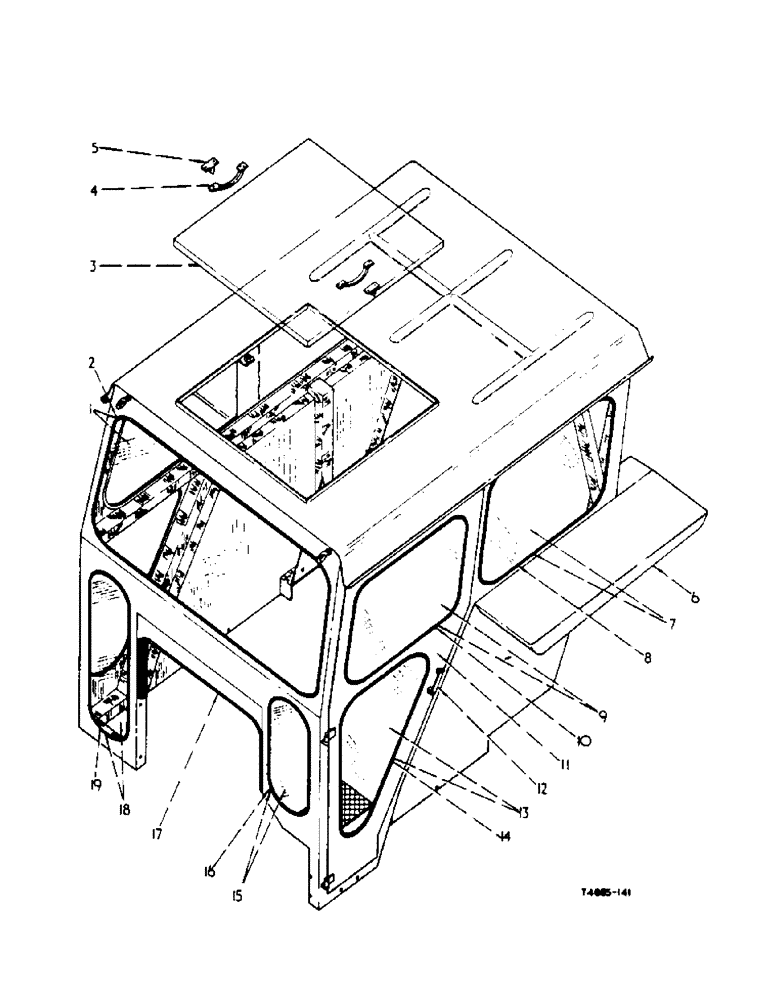

Запчасти Case IH 434 (6-114) - TRACTOR CAB ATTACHMENT, CAB, FRONT VIEW - ATTACHMENTS (88) - ACCESSORIES

1

3073153R91

GLASS

WINDSCREEN, cpte., w/RUBBER 3073155R1

1шт.

2

3073155R1

SEAL

RUBBER, windscreen

1шт.

3

3073335R1

DOOR

HATCH, escape

1шт.

4

3073337R1

HANDLE

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

3061228R91

LOCK NUT

lock

8шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

8шт.

5

3073336R1

CLIP

retaining

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

3061228R91

LOCK NUT

lock, 1/4"

4шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

4шт.

6

3073340R1

MUDFLAP

MUDWING, LH.

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex-hd., 3/8" x 3"

3шт.

3063560R1

LOCK NUT

lock, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/32" I.D.

3шт.

7

3073321R91

GLASS

WINDOW, cab, cpte., w/RUBBER 3073322R1

1шт.

8

3073322R1

RUBBER

cab window

1шт.

9

3073324R91

GLASS

WINDOW, cab, cpte., upper, w/RUBBER 3073325R1

1шт.

10

3073325R1

RUBBER

cab, upper window

1шт.

11

3073323R91

DOOR

cpte., w/WINDOW 3073324R91, WINDOW 3073326R91 and two HANDLE 3073328R1 and STRIP 3105334R1

1шт.

12

3073328R1

HANDLE

door (1 inside, 1 outside)

2шт.

13

3073326R91

GLASS

WINDOW, cab, cpte., lower w/RUBBER 3073327R1

1шт.

14

3073327R1

RUBBER

cab, lower window

1шт.

15

3073158R91

WINDOW

cab, cpte., L.H. lower w/RUBBER 3073160R1

1шт.

16

3073160R1

RUBBER

cab, L.H. lower window

1шт.

17

3073157R1

STRIP

SUPERSEAL

1шт.

18

3073161R91

GLASS

WINDOW, cab, cpte., R.H. lower w/RUBBER 3073165R1

1шт.

19

3073165R1

RUBBER

cab, R.H. lower window

1шт.

3073684R91

WIPER MOTOR

MOTOR, wiper

1шт.

3073685R1

ARM

wiper

1шт.

3073686R1

BLADE

wiper

1шт.

3105334R1

STRIP, door sealing

1шт.
