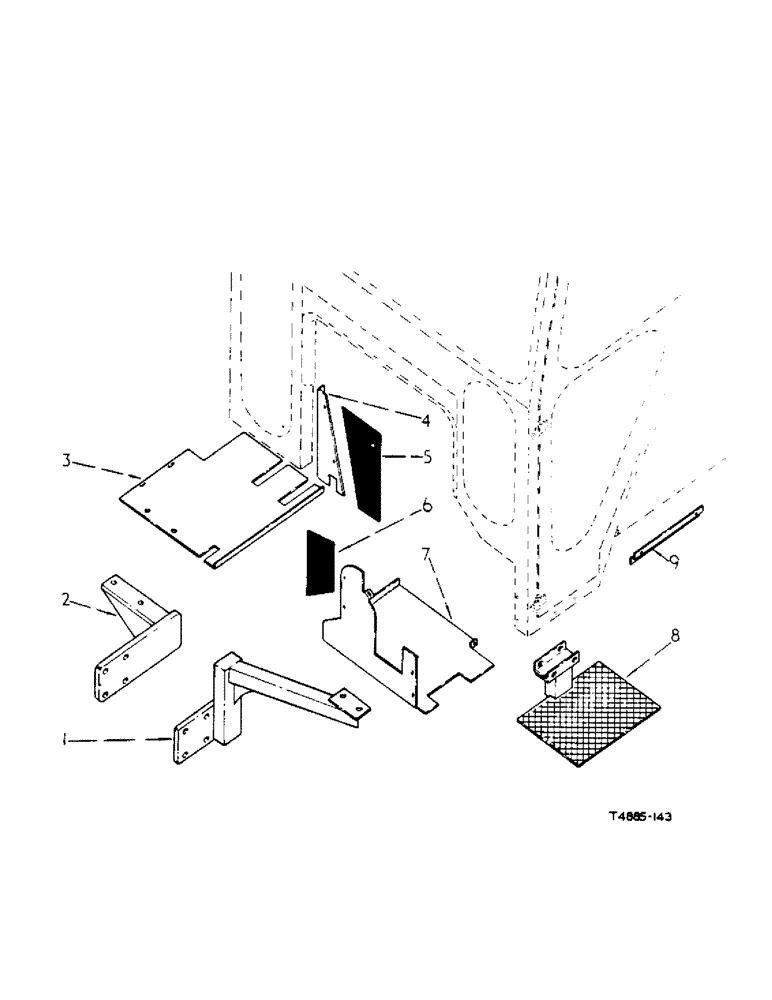

Запчасти Case IH 434 (6-113) - TRACTOR CAB ATTACHMENT, CAB MOUNTING BRACKETS AND ACCESSORIES - ATTACHMENTS (88) - ACCESSORIES

1

NSS

NOT SOLD SEPARAT

BRACKET, mounting LH.

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET, mounting RH.

1шт.

3

3073334R1

FOOTPLATE

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

2шт.

3061228R91

LOCK NUT

lock, 1/4"

2шт.

16559R1

WASHER,1/4"

plain, 17/64"

2шт.

4

3073168R1

PLATE

weather, RH.

1шт.

180021

SPRING

hex-hd., 1/4" x 7/8"

1шт.

3061228R91

LOCK NUT

lock, 1/4"

1шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

1шт.

5

3073167R1

FLAP

rubber, RH.

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

2шт.

3061228R91

LOCK NUT

lock, 1/4"

2шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

2шт.

6

3073317R1

FLAP

rubber, LH.

1шт.

180021

SPRING

hex-hd., 1/4" x 7/8"

2шт.

3061228R91

LOCK NUT

lock, 1/4"

2шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

2шт.

7

3073318R1

PLATE, weather, LH.

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

4шт.

3061228R91

LOCK NUT

lock, 1/4"

4шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

4шт.

8

3073597R1

STEP, mounting

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

hex-hd., 3/8" x 2-3/4"

2шт.

3063560R1

LOCK NUT

lock, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/32" I.D.

2шт.

9

3073329R1

BRACKET, base

2шт.

180021

SPRING

hex-hd., 1/4" x 7/8"

4шт.

3061228R91

LOCK NUT

lock, 1/4"

4шт.

16559R1

WASHER,1/4"

plain, 17/64" I.D.

4шт.
