Запчасти Case IH 434 (6-096) - PARTS SPECIAL FOR SCANDINAVIA - ATTACHMENTS (88) - ACCESSORIES

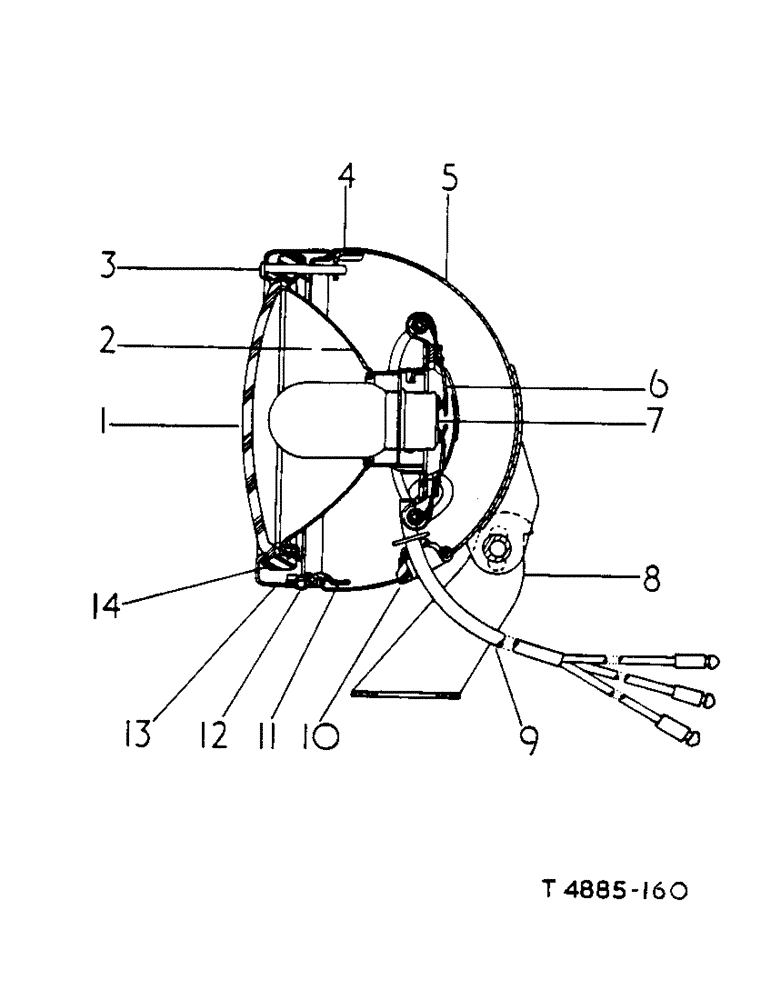

Схема запчастей Case IH 434 - (6-096) - PARTS SPECIAL FOR SCANDINAVIA - ATTACHMENTS (88) - ACCESSORIES
2
14
8
13
7
6
4
5
3
12
10
1
9
11

№

Артикул

Название

Примечание

Количество

3071476R91

ATTACHMENT, Scandinavia headlamps, comprising:

1шт.

3071350R91

LAMP

HEADLAMP, cpte., (White - 35-35W), comprising :

2шт.

3074967R91

BODY, assy., comprising

1шт.

3074970R91

BODY

1шт.

3071445R1

BOLT

1шт.

3071441R1

BRACKET

1шт.

3071446R1

NUT

1шт.

3071443R1

RETAINER

1шт.

3071442R1

SPACER

1шт.

707014R1

WASHER

1шт.

3071447R1

WASHER

1шт.

1

3066514R1

LENS

1шт.

2

3074969R91

REFLECTOR & TUBE, assy.

1шт.

3

3066517R1

SCREW

door

1шт.

4

3071443R1

RETAINER, bolt

1шт.

5

3074970R91

BODY, assy.

1шт.

6

3066522R91

CONTACT, assy.

1шт.

7

3041247R91

LAMP

BULB, 12 V, 35/35W

1шт.

8

3071441R1

BRACKET, mounting

1шт.

3071445R1

BOLT

1шт.

3071446R1

NUT

1шт.

3071442R1

SPACER

1шт.

707014R1

WASHER, shakeproof

1шт.

3071447R1

WASHER, plain

1шт.

9

3072590R91

CABLE, assy., w/GROMMET 3071444R1

1шт.

10

3071444R1

GROMMET

1шт.

11

3072645R1

CLIP, door

1шт.

12

3072644R1

RIVET

1шт.

13

3074968R91

DOOR, assy., w/CLIP 3072645R1 and RIVET 3072644R1

1шт.

14

3066515R1

GASKET

1шт.

3074966R91

DOOR, assy., comprising

1шт.

3074968R1

DOOR

1шт.

3066515R1

GASKET

1шт.

3066514R1

LENS

1шт.

3074969R91

REFLECTOR

1шт.

ATTACHMENT, Mower Drive (Factory), Mid Mounted

1шт.

For use on machines fitted with 545 r.p.m. Single Speed C.R.P.T.O. Attachment

1шт.

3071394R91

ATTACHMENT, Mower Drive, Mid Mounted, comprising: CLUTCH HOUSING, MOWER DRIVE CONTROLS, MOWER DRIVE GEAR AND SHAFTS (545 r.p.m.)

1шт.

For use on machines fitted with 545 r.p.m. Single Speed C.R.P.T.O. Attachment

1шт.

ATTACHMENT, Mower Drive (Factory), Mid Mounted

1шт.

For use on machines fitted with 745 r.p.m. Single Speed C.R.P.T.O. Attachment

1шт.

3071392R91

ATTACHMENT, Mower Drive, Mid Mounted, comprising: CLUTCH HOUSING, MOWER DRIVE CONTROLS, MOWER DRIVE GEAR AND SHAFTS (745 r.p.m.)

1шт.

For use on machines fitted with 745 r.p.m. Single Speed C.R.P.T.O. Attachment

1шт.

ATTACHMENT, Mower Drive (Factory), Mid Mounted

1шт.

For use on machines fitted with two Speed C.R.P.T.O.

1шт.

3071390R91

ATTACHMENT, Mower Drive, Mid Mounted, comprising: CLUTCH HOUSING, MOWER DRIVE CONTROLS, MOWER DRIVE GEAR AND SHAFTS (Two Speed)

1шт.

For use on machines fitted with two Speed C.R.P.T.O.

1шт.

Выбрано товаров: 47
