(6-094) - POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK - ATTACHMENTS

Запчасти Case IH 434 (6-094) - POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK - ATTACHMENTS (88) - ACCESSORIES

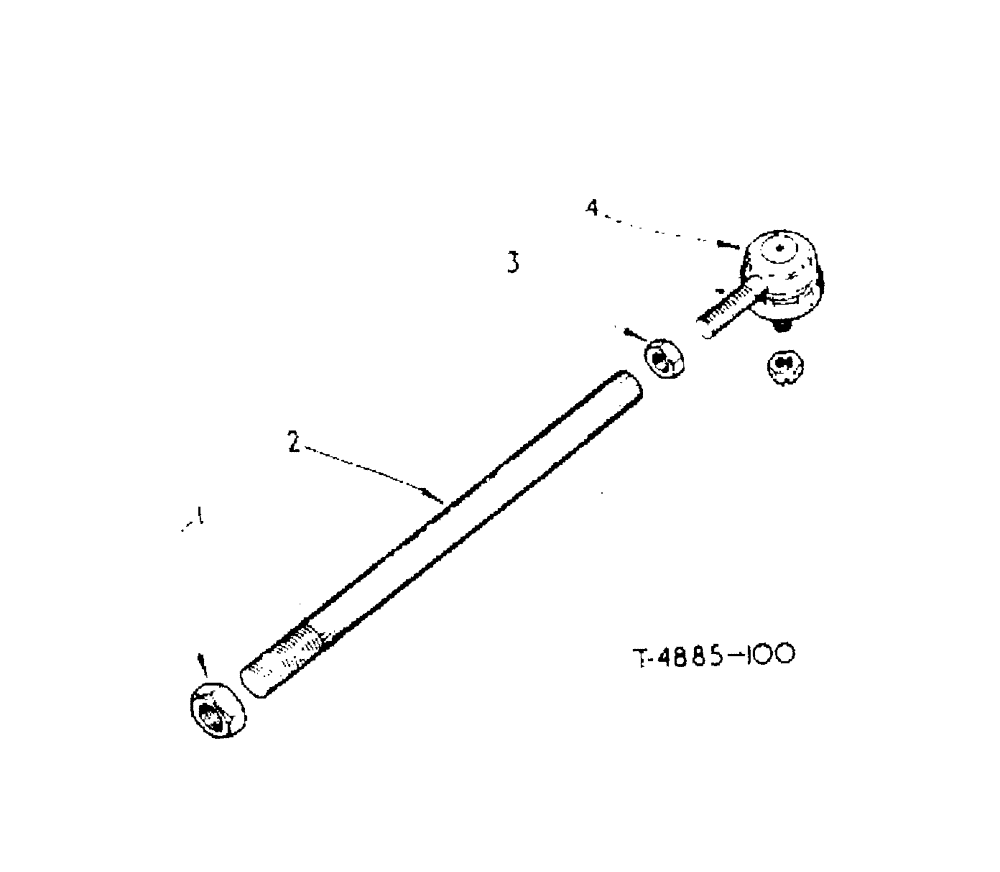

Схема запчастей Case IH 434 - (6-094) - POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK - ATTACHMENTS (88) - ACCESSORIES
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3070916R91

LINK

connecting, cpte., comprising: Ref. 1 - 4

1шт.

1

3043937R1

NUT

hex., 1" UNF, jam

1шт.

2

3070993R1

TUBE

SECTION, drag link center

1шт.

3

705247R1

NUT

lock L.H. thread

1шт.

4

3045309R91

BALL JOINT

END, drag link L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.
