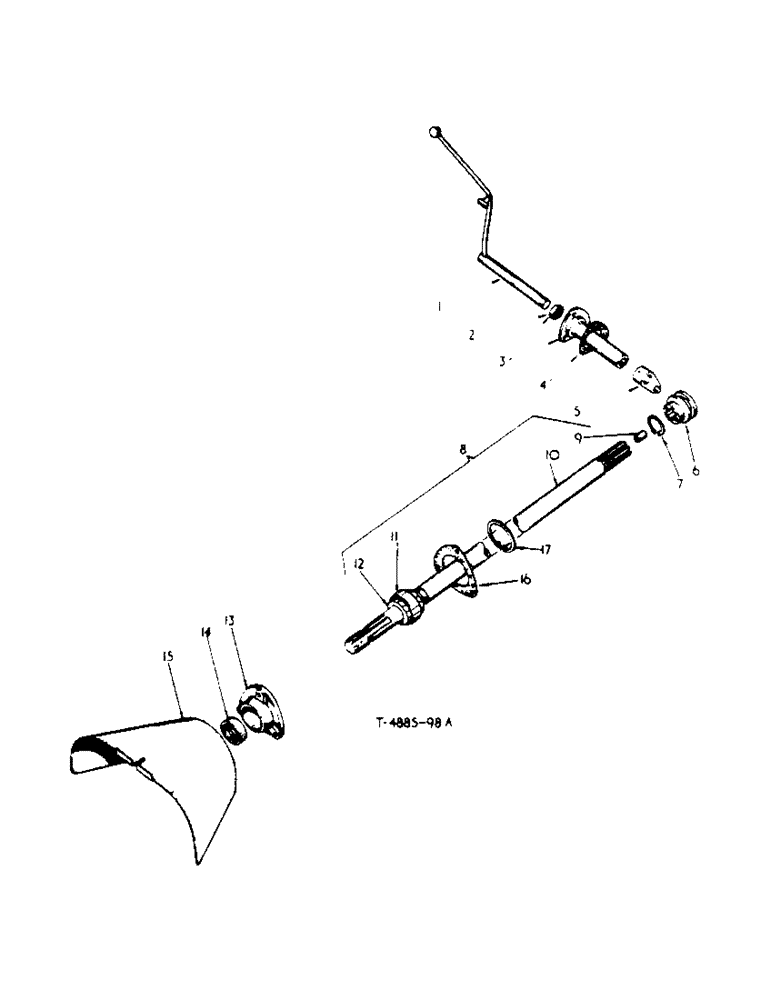

Запчасти Case IH 434 (6-092) - STANDARD REAR P.T.O. ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

3044913R92

ATTACHMENT, std. rear P.T.O., for use with std. trans.

1шт.

3105093R91

ATTACHMENT, std. rear P.T.O., for use with std. trans. & full forward and reverse trans.

1шт.

1

3064230R91

LEVER

cpte., P.T.O. rear clutch shifter

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. shifter, cpte.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

711312R1

GASKET

P.T.O. shifter bracket

1шт.

5

3063246R11

LEVER

SHIFTER, P.T.O. cpte., opt.

1шт.

5

751115R91

LEVER

SHIFTER, P.T.O. cpte., opt.

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, type 1, 5/16" x 1-1/4"

1шт.

6

751113R2

CLUTCH

sliding, P.T.O. shaft rear

1шт.

7

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear, clutch stop

1шт.

8

3073111R91

SHAFT

cpte., P.T.O., 434D/25070 up, comprising

1шт.

Including 434P/2794 up, 434NT/D1057 up, 434NT/P521 up

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

2шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

8

751114R51

SHAFT HOUSING

SHAFT, cpte., P.T.O., up to 434D/25069, (order 3073111R91), comprising

1шт.

Including up to 434P/2793, up to 434NT/D1056, up to 434NT/P520

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

9

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, rear P.T.O. shaft

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O. (order 3073111R91)

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft (order 3073114R91), 434D/25070 up

1шт.

Including 434P/2794 up, 434NT/D1057 up, 434NT/P521 up

1шт.

11

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, P.T.O. shaft (SKF) opt.

1шт.

11

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, P.T.O. shaft (Fischer) opt.

1шт.

11

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, P.T.O. shaft (Hoffman) opt.

1шт.

11

705750R91

BEARING, BALL

BEARING, P.T.O. shaft (R & M) opt.

1шт.

11

3108784R91

BEARING, BALL

BEARING, P.T.O. shaft (NTN) opt., Serial Range: up-434D/25069

1шт.

Including up to 434P/2793, up to 434NT/D1056, up to 434NT/P520

1шт.

12

NSS

NOT SOLD SEPARAT

COLLAR, P.T.O. shaft 434D/25070 up

2шт.

Including 434P/2794 up, 434NT/D1057 up, 434NT/P521 up

1шт.

12

707991R1

COLLAR

P.T.O. shaft, Serial Range: up-434D/25069

1шт.

Including up to 434P/2793, up to 434NT/D1056, up to 434NT/P520

1шт.

13

704387R12

RETAINER

w/OIL SEAL 708580R91 cpte., oil seal

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga.

3шт.

14

708580R91

SEAL ASSY.

OIL SEAL, P.T.O., opt.

1шт.

14

3065217R91

OIL SEAL

OIL SEAL, P.T.O., opt.

1шт.

14

3068756R91

SEAL

OIL SEAL, P.T.O., opt.

1шт.

15

704395R96

SHIELD

cpte., P.T.O. safety

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

703971R1

GASKET

P.T.O. shaft

1шт.

17

704385R1

CLIP

CIRCLIP, internal, 72 mm

1шт.

3073114R91

SERVICE KIT

PACKAGE service, P.T.O. shaft bearing, comprising

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

1026425R1

PRODUCT GRAPHIC

P.T.O. speed 545 r.p.m.

1шт.

1080213R1

PRODUCT GRAPHIC

P.T.O., for 3044913R92

1шт.
