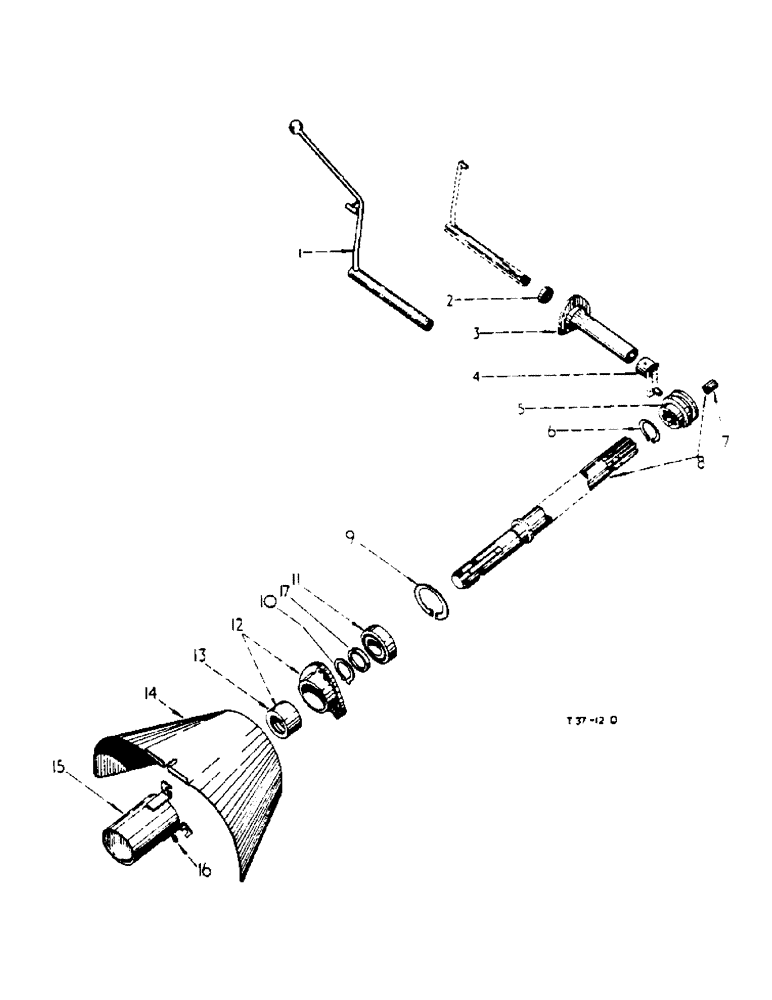

Запчасти Case IH 434 (6-091) - REAR P.T.O. - ATTACHMENTS (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
3064230R91
LEVER
cpte., P.T.O. rear clutch shifter
1шт.
2
704393R91
OIL SEAL
P.T.O. shifter bracket, oil, optional
1шт.
704394R91
SEAL
P.T.O. shifter bracket, oil, optional
1шт.
3066616R91
SEAL
P.T.O. shifter bracket, oil, optional
1шт.
3
704392R21
SUPPORT
BRACKET, w/SEAL 704393R91 cpte., P.T.O. rear clutch
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
4
3063246R91
SHIFTER, cpte., P.T.O., optional
1шт.
751115R91
LEVER
SHIFTER, cpte., P.T.O., optional
1шт.
38-31220
PIN,4.75mm OD x 31.75mm L, Coiled
3/16" x 1-1/4" groove
1шт.
5
751113R2
CLUTCH
P.T.O. shaft rear
1шт.
6
751117R1
CLIP
CIRCLIP, P.T.O. shaft rear clutch
1шт.
7
48594DA
BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L
BUSH, P.T.O. rear shaft
1шт.
8
751114R51
SHAFT HOUSING
SHAFT, w/BUSH 48594DA cpte., rear
1шт.
9
704385R1
CLIP
CIRCLIP, 77 mm internal
1шт.
10
708541R1
RETAINER
CIRCLIP, P.T.O. shaft rear brg.
1шт.
11
3108784R91
BEARING, BALL
BEARING, P.T.O. shaft rear, optional
1шт.
11
705750R91
BEARING, BALL
BEARING, P.T.O. shaft rear, optional
1шт.
11
76491H
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W
BEARING, P.T.O. shaft rear, optional
1шт.
11
700311R91
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING, P.T.O. shaft rear, optional
1шт.
12
704387R12
RETAINER
w/SEAL 3065217R91 cpte.
1шт.
703971R1
GASKET
oil seal retainer
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
3шт.
95-11034
WASHER,1/4"
11/32" x 11/16" x 16 ga.
1шт.
13
3065217R91
OIL SEAL
P.T.O. oil, optional
1шт.
708107R91
OIL SEAL
SEAL, P.T.O. oil, optional
1шт.
708580R91
SEAL ASSY.
SEAL, P.T.O. oil, optional
1шт.
14
704395R96
SHIELD
cpte., P.T.O. safety
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
15
3041319R11
CAP
cpte., P.T.O. safety, optional
1шт.
751471R91
CAP
cpte., P.T.O. safety, optional
1шт.
16
707991R1
COLLAR
P.T.O. shaft
1шт.
Выбрано товаров: 33
