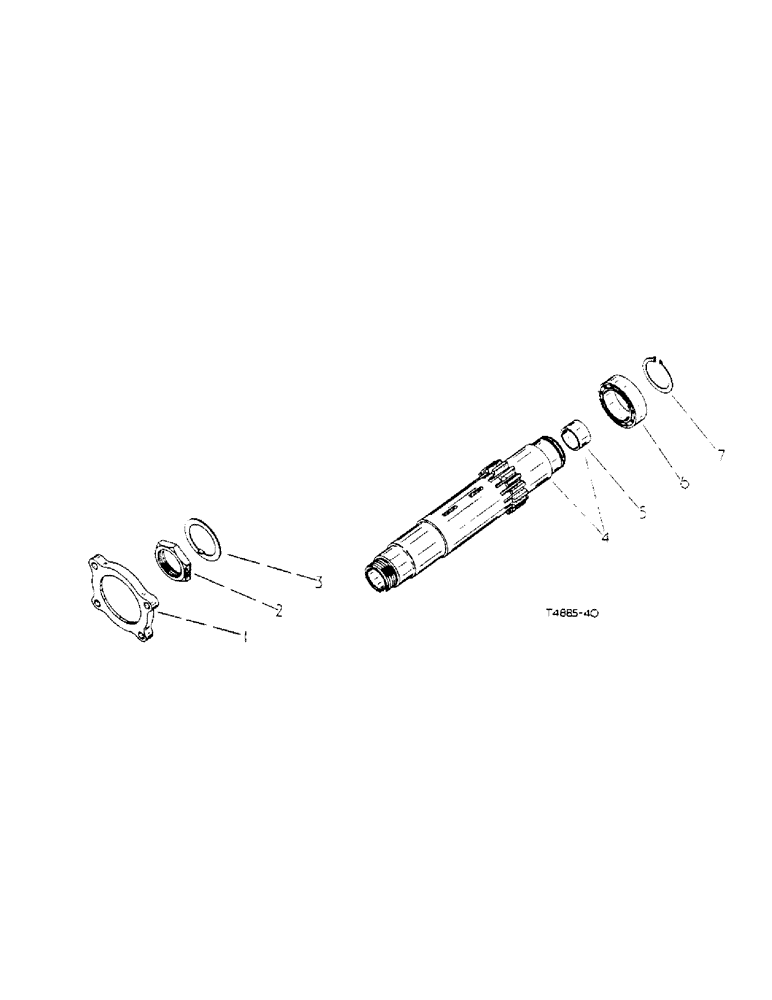

Запчасти Case IH 434 (6-090) - TRANSMISSION DRIVE - ATTACHMENTS (88) - ACCESSORIES

1

751150R1

RETAINER

trans. countershaft front brg.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

751065R1

BEARING LOCK NUT

countershaft front brg. lock

1шт.

3

751066R1

WASHER

front brg. lock nut

1шт.

4

3043992R11

SHAFT

GEAR, w/BUSH 751161R1 trans. countershaft and 1st speed

1шт.

5

751161R1

BUSHING

BUSH

1шт.

6

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

trans. countershaft rear ball, optional

1шт.

3040830R91

BALL BEARING

BEARING trans. countershaft rear ball, optional

1шт.

3049757R91

BALL BEARING

BEARING trans. countershaft rear ball, optional

1шт.

7

751638R1

RING, SNAP

CIRCLIP rear bearing

1шт.
