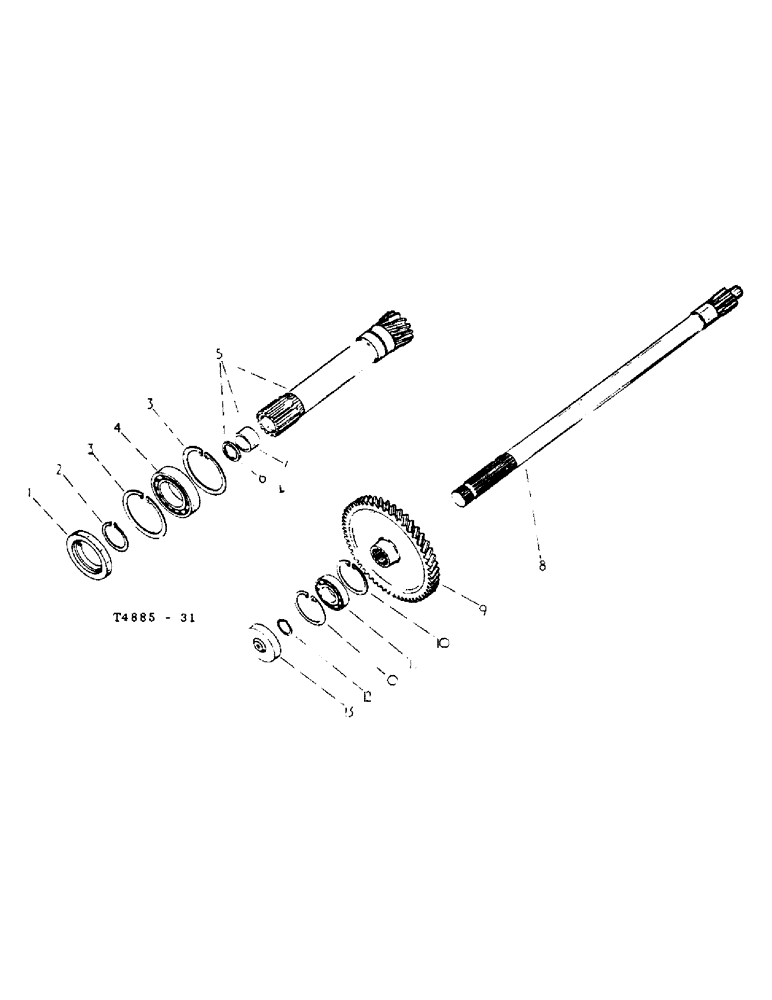

Запчасти Case IH 434 (6-089) - SINGLE SPEED DRIVE - ATTACHMENTS (88) - ACCESSORIES

1

3070266R91

SEAL

P.T.O. driving shaft front oil

1шт.

2

751638R1

RING, SNAP

CIRCLIP, 50 mm ext.

1шт.

3

751297R1

RETAINER

CIRCLIP, 9 mm int.

2шт.

4

704234R91

BALL BEARING

BEARING, opt.

1шт.

4

704235R91

BALL BEARING

BEARING, opt.

1шт.

4

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, opt.

1шт.

4

3048701R91

BALL BEARING

BEARING, opt.

1шт.

5

3070262R91

SHAFT, cpte., single speed drive, comprising: Ref. 6 and 7

1шт.

Applicable to 545 r.p.m.

1шт.

5

3071068R91

SHAFT

cpte., single speed drive, comprising: Ref. 6 and 7

1шт.

Applicable to 745 r.p.m.

1шт.

6

3070265R91

OIL SEAL

SEAL drive shaft oil, opt.

1шт.

3071070R91

SEAL

drive shaft oil, opt.

1шт.

3071071R91

SEAL

drive shaft oil, opt.

1шт.

7

3070264R1

BUSHING

drive shaft

1шт.

8

3070267R2

SHAFT

P.T.O. front

1шт.

On orders for 3070267R1, furnish R2 with clutch 751113R2.

1шт.

9

3070270R1

GEAR, single speed P.T.O. driven ( 55 teeth)

1шт.

Applicable to 545 r.p.m.

1шт.

9

3071067R1

GEAR

single speed P.T.O. driven

1шт.

Applicable to 745 r.p.m.

1шт.

10

704385R1

CLIP

CIRCLIP, 72 mm. int.

2шт.

11

85653H

CHAIN (CE)

BEARING, P.T.O. shaft front ball

1шт.

12

704607R1

CIRCLIP

30 mm. ext.

1шт.

13

3070268R91

PLUG

P.T.O. shaft front, opt.

1шт.

3071075R91

PLUG

P.T.O. shaft front, opt.

1шт.
