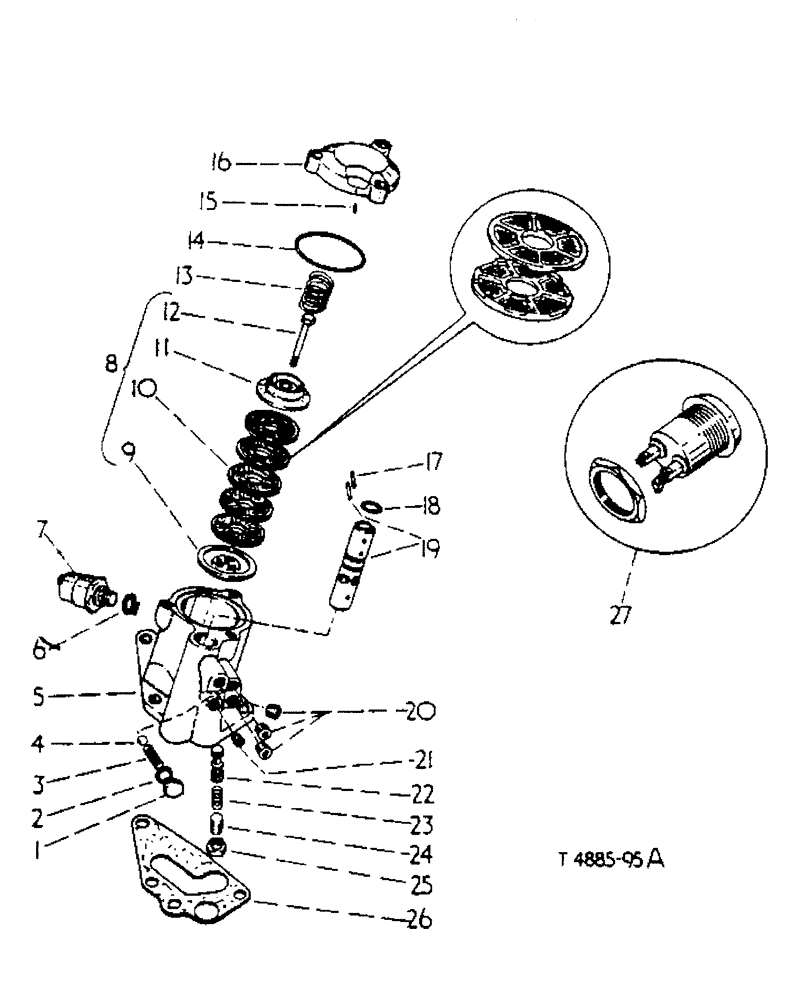

Запчасти Case IH 434 (6-088) - OIL FILTER ASSEMBLY - ATTACHMENTS (88) - ACCESSORIES

1

3070312R1

PLUG

1шт.

2

3070313R1

WASHER

1шт.

3

714417R1

SPRING

oil pressure

1шт.

4

3072917R1

BALL,11/32" Dia

steel, 9 mm dia.

1шт.

5

NSS

NOT SOLD SEPARAT

PUMP BODY

1шт.

6

761337R3

GASKET

RING, packing

1шт.

7

786582R91

TRANSMITTER

oil pressure

1шт.

8

3070315R91

FILTER ASSY

FILTER, assy., opt., comprising: Ref. 9 - 12

1шт.

8

786575R91

FILTER

ING BLOCK, assy., opt., comprising: Ref. 9 - 12

1шт.

9

786579R1

COVER, oil filter lower

1шт.

10

786577R1

FILTER, ENGINE OIL

ELEMENT, oil filter (Comprises two filter per element)

5шт.

11

786576R1

COVER

oil filter upper

1шт.

12

786578R1

PIN, guide

1шт.

13

3072695R91

PUMP

SPRING, by-pass

1шт.

14

22409R1

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

filter cover, 2-5/8" x 2-7/8" x 1/8"

1шт.

15

17272R1

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

1шт.

16

3070316R11

COVER

oil filter body w/PIN 17272R1

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

17047R1

LOCK PIN,5/32" x 7/8", Slotted

Pin, 5/32" x 7/8", Slotted

2шт.

18

3071370R1

O-RING, 19/32" x 25/32" x 3/32"

1шт.

19

3070318R11

PLUG, cock cpte., w/PIN 17047R1

1шт.

20

3072697R1

PLUG, sltd., hdls., pipe, 1/4"

3шт.

21

3072696R1

PLUG, sltd-hdls., pipe 1/8"

1шт.

22

786572R1

LOCK VALVE

VALVE, oil pressure

1шт.

23

786573R1

SPRING

oil pressure

1шт.

24

787064R1

ROD

adjusting, pressure valve

1шт.

25

25-118

NUT,1/2"-20, G5

1/2"

1шт.

26

3070308R1

GASKET

oil filter and control body

1шт.

27

3068461R91

WARNING LIGHT

LIGHT, warning assy., comprising:

1шт.

3048831R91

LAMP

BULB, 12 V, 2 W

2шт.

3069466R1

LENS

Amber

1шт.

3071369R91

FILTER, assy., speed amplifier, comprising

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

3072917R1

BALL,11/32" Dia

1шт.

3070316R11

COVER

1шт.

FILTERING

1шт.

786575R91

FILTER

BLOCK

1шт.

25-118

NUT,1/2"-20, G5

1шт.

22409R1

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

3071370R1

O-RING

1шт.

3070312R1

PLUG

1шт.

3070318R11

PLUG

1шт.

3072696R1

PLUG

1шт.

3072697R1

PLUG

1шт.

NSS

NOT SOLD SEPARAT

PUMP BODY

1шт.

787064R1

ROD

1шт.

714417R1

SPRING

1шт.

3072675R1

SPRING

1шт.

786573R1

SPRING

1шт.

786572R1

LOCK VALVE

VALVE

1шт.

3070313R1

WASHER

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
