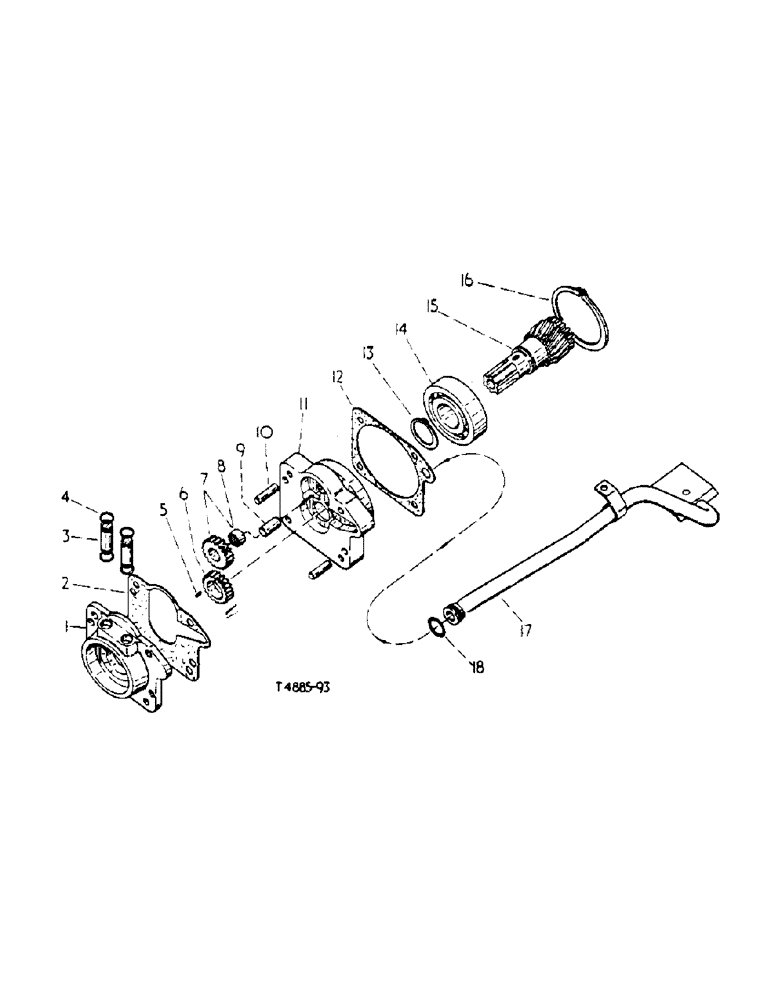

Запчасти Case IH 434 (6-087) - OIL PUMP ASSEMBLY AND SUCTION PIPE COMPLETE - ATTACHMENTS (88) - ACCESSORIES

3071035R91

PUMP

OIL PUMP, cpte., comprising

1шт.

703523R91

BEARING

1шт.

3070295R11

CAGE

1шт.

751146R1

RING

CIRCLIP

1шт.

751081R1

CLIP

CIRCLIP

1шт.

3070298R1

GASKET

1шт.

3070968R1

GEAR

1шт.

786567R11

GEAR

1шт.

3070967R1

KEY

1шт.

3070474R1

SHAFT

1шт.

3070295R11

CAGE, w/CAGE COVER two PIN 19892R1, SHAFT 786565R1, assy., bearing and oil pump body

1шт.

1

COVER, bearing and oil pump body (order 3070295R11)

1шт.

2

3070298R1

GASKET

oil pump

1шт.

3

3070307R1

PIPE, oil inlet and outlet

2шт.

4

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2" x 11/16" x 3/32"

4шт.

5

3070967R1

KEY

driving gear

1шт.

6

3070968R1

GEAR, oil pump driving

1шт.

7

786567R11

GEAR

oil pump idler w/BEARING 786568R91

1шт.

8

786568R91

BEARING

needle, opt.

1шт.

3070299R91

BEARING

needle, opt.

1шт.

3070300R91

BEARING, needle, opt.

1шт.

9

786565R1

PIN

SHAFT, oil pump idler gear

1шт.

10

19892R1

SPLIT PIN/SAFETY PIN

PIN, dowel, 3/8" x 1/2"

2шт.

11

CAGE, bearing and oil pump body (order 3070295R11)

1шт.

12

3070296R1

GASKET

oil pump body

1шт.

13

751146R1

RING

CIRCLIP, trans. driving shaft brg. retaining

1шт.

14

703523R91

BEARING, trans. driving shaft, opt.

1шт.

700521R91

BALL BEARING

BEARING, trans. driving shaft, opt.

1шт.

704768R92

BALL BEARING

BEARING, trans. driving shaft, opt.

1шт.

49533H

BEARING, BALL

BEARING, trans. driving shaft, opt.

1шт.

15

3070474R1

SHAFT, trans. drive

1шт.

16

751081R1

CLIP

CIRCLIP, trans. driving shaft brg. retaining, ext.

1шт.

17

3070303R11

PIPE, cpte., suction

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.
