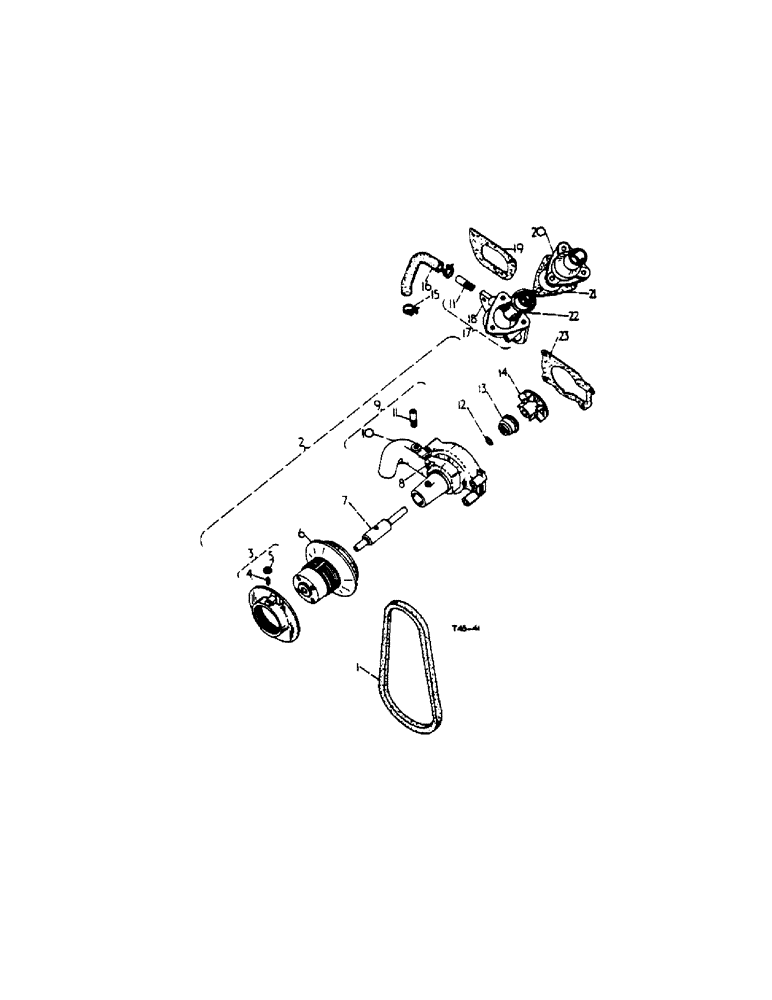

Запчасти Case IH 434 (1-18) - WATER PUMP AND THERMOSTAT HOUSING - DIESEL ENGINE (02) - ENGINE

1

709502R1

BELT

BELT, Fan

1шт.

1

3060464R1

BELT,0.66" W

Fan, Service Only 0.66" W

1шт.

2

703820R94

WATER PUMP

PUMP, cpte., water, comprising:; Ref. 3 - 14

1шт.

2

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

3

703825R11

FLANGE

w/SCREW 102831 and NUT 114502 cpte., water pump pulley

1шт.

Part of water pump service package P/N 3065132R92

1шт.

4

102831

SCREW

set, dg-pt., hdls., 5/16" x 7/8"

1шт.

5

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley

1шт.

Part of water pump service package P/N 3065132R92

1шт.

7

704217R91

NO LONGER SERVICED

BEARING, water pump spindle optional

1шт.

Part of water pump service package P/N 3065132R92

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle optional

1шт.

Part of water pump service package P/N 3065132R92

1шт.

7

3042676R91

CRANKSHAFT BEARING

BEARING, water pump spindle optional

1шт.

Part of water pump service package P/N 3065132R92

1шт.

8

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retaining

1шт.

Part of water pump service package P/N 3065132R92

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

704216R41

BODY

w/BODY 704216R4 and TUBE 3065123R1 water pump assy.

1шт.

Part of water pump service package P/N 3065132R92

1шт.

10

704216R4

BODY

water pump

1шт.

11

3065123R1

TUBE

thermostat by-pass connection

2шт.

12

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O RING, 9/16" x 3/4" x 3/32"

1шт.

Part of water pump service package P/N 3065132R92

1шт.

13

703822R91

SEAL

water pump

1шт.

Part of water pump service package P/N 3065132R92

1шт.

14

709909R2

TURBINE

IMPELLOR, water pump

1шт.

Part of water pump service package P/N 3065132R92

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

703832R1

STUD

water pump

4шт.

15

3065128R91

COLLAR CLAMP

CLIP, by-pass hose thermostat

2шт.

16

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

17

3069642R11

HOUSING

w/TUBE 3065123R1 and HOUSING 3069642R1 cpte.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

3069642R1

HOUSING

thermostat

1шт.

19

703815R1

GASKET

thermostat housing

1шт.

20

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21

3065125R1

GASKET

thermostat housing cover

1шт.

22

3042303R91

THERMOSTAT

(170 degree F - 199 degree F)

1шт.

23

703816R1

GASKET

water pump

1шт.

103884

PLUG,Slotted, 1/4" NPT

1/4" sltd., headless pipe

1шт.

Part of water pump service package P/N 3065132R92

1шт.

3106564R91

SERVICE KIT

PACKAGE short water pump, service, comprising bearing, gasket, impellor, O-ring and seal

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

703816R1

GASKET

1шт.

709909R2

TURBINE

IMPELLOR

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

703822R91

SEAL

1шт.

3065132R92

PUMP

PACKAGE, service, water pump, Includes: Ref. 3, 6 - 8, 9, 12 - 14 and P/N 103884

1шт.
