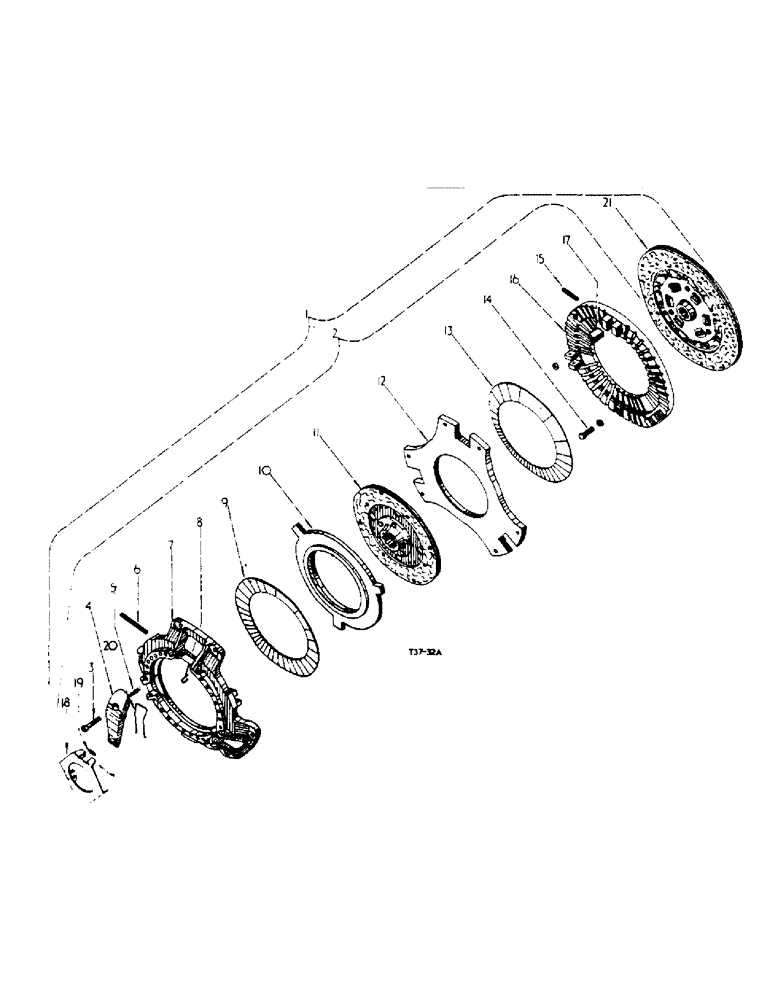

Запчасти Case IH 434 (6-086) - DUAL CLUTCH AND FLYWHEEL - ATTACHMENTS (88) - ACCESSORIES

1

3070269R92

CLUTCH, cpte., Aubum, dual, comprising: Ref. 2 - 21

1шт.

3071102R91

COVER

1шт.

3108790R91

CLUTCH & DISC ASSY

PLATE

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

3071102R91

COVER, assy., comprising: Ref. 3 - 20

1шт.

3

709651R1

ADJUSTMENT SCREW

adjusting

3шт.

4

709650R1

SET

LEVER

3шт.

5

709654R1

VALVE SPRING

SPRING, anchor clip

3шт.

6

3047750R1

PIVOT PIN,7.84mm OD x 68.3mm L

PIN, lever pivot

3шт.

7

709642R1

BRACKET

cover

1шт.

8

3047600R1

SPRING

hair pin

3шт.

9

3071104R1

SPRING

Belleville (9" clutch)

1шт.

10

709644R1

PLATE

pressure (9" clutch)

1шт.

11

3071103R91

PLATE

driven, 9"

1шт.

12

709643R1

PLATE

flywheel

1шт.

13

3066669R1

SPRING

Belleville (main drive)

1шт.

14

709652R1

SET SCREW

set

3шт.

3066671R1

NUT

lock

6шт.

15

709648R1

PIN

link pivot

3шт.

16

3066670R1

PLATE

pressure, 11"

1шт.

17

709647R1

END FITTING

END, rod

3шт.

18

3045527R1

RING

release

1шт.

3045529R1

PIN

split

3шт.

19

3045530R1

SLEEVE

3шт.

20

3045528R1

SPRING

torsion

3шт.

21

3108790R91

CLUTCH & DISC ASSY

PLATE, assy., 11", driven

1шт.

3044003R11

FLYWHEEL

1шт.

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel

4шт.

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

3071105R91

PACKAGE

KIT, 11" facing

1шт.

3041390R91

FACING

KIT, 9" facing w/two FACINGS (which are not supplied separately) & PACKAGE 3107831R91

1шт.

NSS

NOT SOLD SEPARAT

FACING

2шт.

3107831R91

RIVET

PACKAGE, rivets

1шт.
