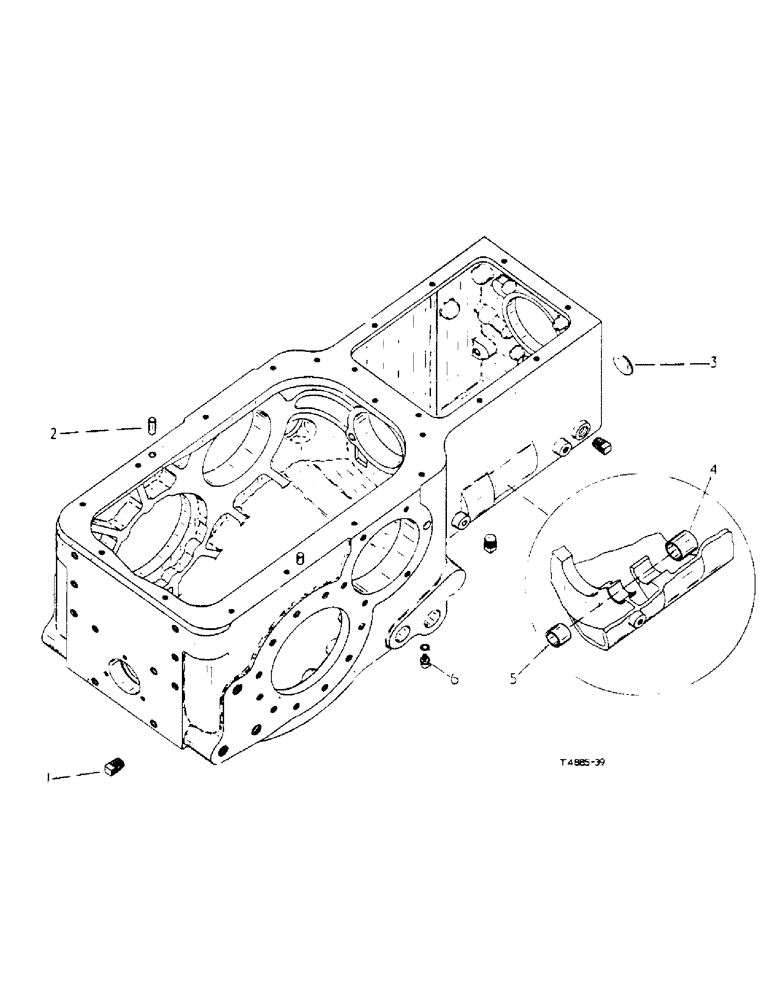

Запчасти Case IH 434 (6-083) - TRANSMISSION HOUSING - ATTACHMENTS (88) - ACCESSORIES

3073800R91

HOUSING, cpte., trans.

1шт.

434P/1693 up, 434D/13299 up

1шт.

3070276R21

HOUSING, cpte., trans., comprising:

1шт.

Up to 434P/1692, up to 434D/13298

1шт.

1

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, sq-hd., opt.

3шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

3шт.

2

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

1шт.

2

751443R1

PIN

dowel

1шт.

3

NOT USED

1шт.

4

3072136R1

BUSHING

BUSH, reverse idler gear front

1шт.

434P/1693 up, 434D/13299 up

1шт.

4

703966R1

BUSHING

BUSH, reverse idler gear front

1шт.

Up to 434P/1692, up to 434D/13298

1шт.

5

711272R1

BUSHING

BUSH, reverse idler gear rear

1шт.

6

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" PTF x 90 degree

1шт.

3072533R91

PACKAGE, service, trans. case (on orders for 3070276R11)

1шт.
