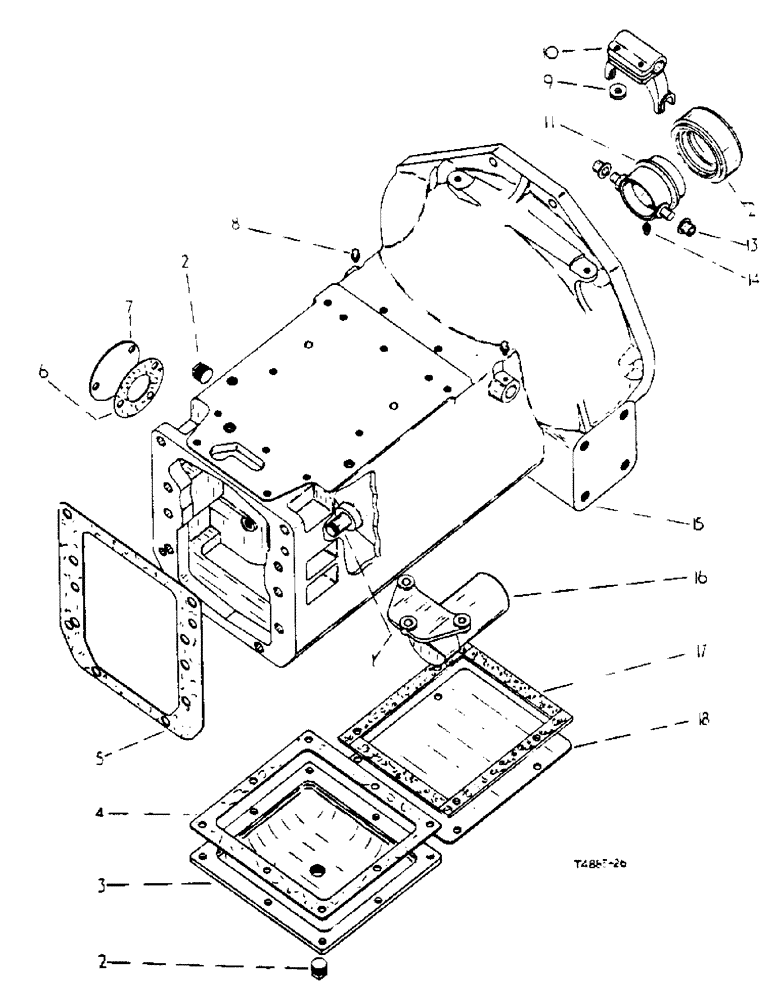

Запчасти Case IH 434 (6-081) - SPEED AMPLIFIER ATTACHMENT, CLUTCH HOUSING - ATTACHMENTS (88) - ACCESSORIES

1

3070261R2

SHAFT

"SHAFT, intermediate gear"

1шт.

On orders for SHAFT 3070261R1 supply Package 3073166R91

1шт.

223055

NEEDLE BEARING

SETSCREW, half dog, hex, soc, 5/16" x 1/2"

1шт.

2

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2" N.P.T.F. pipe, opt.

2шт.

2

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

2шт.

3

751127R1

PLATE

COVER, clutch housing

1шт.

178838

BOLT, hex-hd., 3/8" x 7/8"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

751126R1

GASKET

cover plate

1шт.

5

751124R2

GASKET

clutch housing

1шт.

6

3070272R1

GASKET

side cover

1шт.

7

3070273R1

COVER, clutch housing, side

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, 1/8" x 27 PTF x 90 degree

2шт.

9

3047229R1

WASHER

KEY, clutch release shaft

1шт.

10

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

3070647R1

SLEEVE

clutch release

1шт.

12

3070634R91

BALL BEARING

BEARING, clutch release, opt.

1шт.

12

3070635R91

BALL BEARING

BEARING, clutch release, opt.

1шт.

12

3071300R91

BALL BEARING

BEARING, clutch release, opt.

1шт.

13

3045088R1

INSERT

clutch release fork bush

2шт.

14

108461

LUBRICATOR, straight, 1/8" x 27 PTF

1шт.

15

3070260R21

HOUSING

cpte., clutch, comprising

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR

2шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

1шт.

3071654R91

PLUG

3шт.

223055

NEEDLE BEARING

SETSCREW

1шт.

3070261R2

SHAFT

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex-hd., 1/2" x 1-1/2"

8шт.

20594R1

SCREW,Hex, 1/2"-13 x 3 1/4", G8

BOLT, hex-hd., 1/2" x 3-1/4"

1шт.

102637

NUT,1/2"-13, G5

1шт.

751443R1

PIN

dowel, 1/2" x 2-5/32"

1шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

3070302R1

STUD

1шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

10шт.

16

3045087R1

CARRIER

clutch relase sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex-hd., 7/16" x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

17

3068215R1

SEAL

clutch housing hand hole sealing

1шт.

18

3070643R1

COVER

clutch housing hand hole

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3073162R91

PACKAGE field improvement, comprising

1шт.

102583

SET SCREW,Hex Skt, 5/16" - 18 x 5/8"

SETSCREW

1шт.

3073166R91

PACKAGE field improvement, comprising

1шт.

223055

NEEDLE BEARING

SETSCREW

1шт.

3070261R2

SHAFT

1шт.
