Запчасти Case IH 434 (6-079) - SPECIAL PARTS ATTACHMENT, AUSTRIA - ATTACHMENTS (88) - ACCESSORIES

ATTACHMENT, special parts, factory application, fitted as basic for Canada only, comprising

1шт.

3106611R91

HARNESS

main cable

1шт.

3072478R91

LEAD, flying

1шт.

894253H1

STRAP

CABLE, strapping

2шт.

3066369R1

STUD

nylon

2шт.

3072479R91

LEAD, flying

1шт.

3071350R91

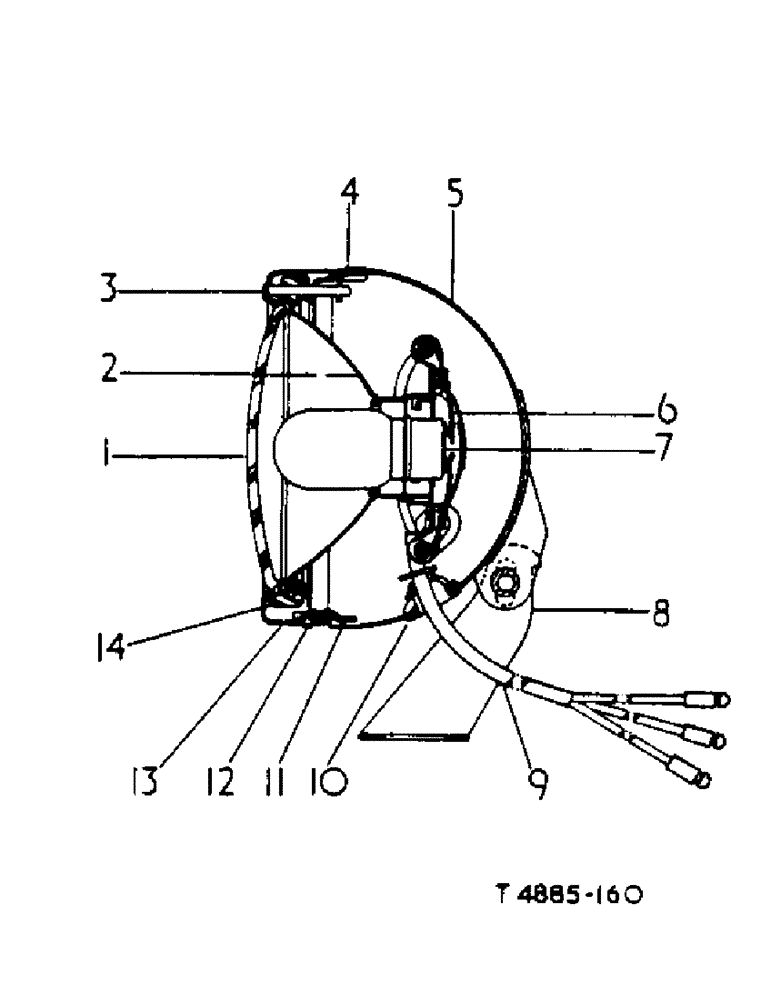

LAMP

head, assy., comprising

1шт.

3074967R91

BODY, assy., comprising

1шт.

3074970R91

BODY

1шт.

3071445R1

BOLT

1шт.

3071441R1

BRACKET

1шт.

3071446R1

NUT

1шт.

3071443R1

RETAINER

1шт.

3071442R1

SPACER

1шт.

707014R1

WASHER

1шт.

3071447R1

WASHER

1шт.

1

3066514R1

LENS

1шт.

2

3074969R91

REFLECTOR & TUBE, assy.

1шт.

3

3066517R1

SCREW

door

1шт.

4

3071443R1

RETAINER, bolt

1шт.

5

3074970R91

BODY, assy.

1шт.

6

3066522R91

CONTACT, assy.

1шт.

7

3041247R91

LAMP

BULB, 12 V, 35/35W (White)

1шт.

8

3071441R1

BRACKET, mounting

1шт.

3071445R1

BOLT

1шт.

3071446R1

NUT

1шт.

3071442R1

SPACER

1шт.

707014R1

WASHER, shakeproof

1шт.

3071447R1

WASHER, plain

1шт.

9

3072590R91

CABLE, assy., w/GROMMET 3071444R1

1шт.

10

3071444R1

GROMMET

1шт.

11

3072645R1

CLIP, door

1шт.

12

3072644R1

RIVET

1шт.

13

3074968R91

DOOR, assy., w/CLIP 3072645R1 and RIVET 3072644R1

1шт.

14

3066515R1

GASKET

1шт.

3074966R91

DOOR, assy., comprising

1шт.

3074968R91

DOOR

1шт.

3066515R1

GASKET

1шт.

3066514R1

LENS

1шт.

3074969R91

REFLECTOR

1шт.

3071087R1

BRACKET, headlamp support, cpte., L.H.

1шт.

3071088R1

BRACKET, headlamp support, cpte., R.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3066551R1

BOLT

battery hold down

2шт.

3071052R91

CABLE, headlamp extension

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR

5шт.

2752873R1

PRODUCT GRAPHIC

DECALOMANIA, Intenational

2шт.

3073633R91

GRILLE

radiator, cpte.

1шт.

3071092R11

RADIATOR GRILLE

MESH, radiator grille, cpte.

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3070511R1

FASTENER

Dzus

1шт.

3070512R1

RING

retaining

1шт.

2754371R1

DECAL

PRODUCT GRAPHIC (Canada Sales)

1шт.

2752654R1

PRODUCT GRAPHIC

Intenational

2шт.

3073215R91

COVER

SEAT, Bostrom (Suspension Type)

1шт.

3070813R91

BOLT, Vary Touch Hydraulics

1шт.

ATTACHMENT, gear shift lever, special parts, for Austria

1шт.

1

3106663R1

LEVER, gear shift hand, (Austria)

1шт.

2

3106665R1

SPRING

gear shift lever, (Austria)

1шт.

3

3068944R1

SPRING

gearshift ball, lever, (Austria)

1шт.

4

3074052R1

BALL

7/16" dia., gear shift lever, (Austria)

1шт.

5

3106661R1

LEVER, gear shift end, (Austria)

1шт.

6

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, , gear shift lever, (Austria) 3/16" x 1 1/4", Slotted

1шт.

7

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, , gear shift lever, (Austria) 3/16" x 7/8", Slotted

1шт.

8

3106664R1

SHAFT

shifter lever small, gear, (Austria)

1шт.

9

3106667R1

COVER, trans. case front, gear shift lever, (Austria)

1шт.

10

3106662R1

SHAFT

shifter lever swivel, gear, (Austria)

1шт.

3106669R91

LEVER

PACKAGE, shifter lever field improvement, see detail list, gear, (Austria)

1шт.

ATTACHMENT, special parts for Austria, factory application, comprising

1шт.

This attachment is fitted to machines with Vary-Touch Hydraulic Lift Attachment (Austria only)

1шт.

3071093R91

SEAT, FRITZMIER assy., w/Baseplate less Cushion

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex-hd., 3/8" x 1"

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

hex-hd., 1/2" x 1-3/4"

2шт.

3065389R1

NUT, Philidas lock, 1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

495-11053

WASHER,1/2", SAE

flat, 17/32" x 1-1/16" x .095"

2шт.

ATTACHMENT, 545 rpm, C.R.P.T.O., factory application, speed amplifier, comprising:

1шт.

ATTACHMENT, 745 rpm, C.R.P.T.O., factory application, speed amplifier, comprising:

1шт.

AMPLIFIER, see detail list, speed, attachment

1шт.

ANTI ROLL BACK LOCK, see detail list, speed amplifier attachment

1шт.

CLUTCH HOUSING, see Figure 6-081, speed amplifier attachment

1шт.

DUAL CLUTCH AND FLYWHEEL, see detail list, speed amplifier attachment

1шт.

HYDRAULIC BRAKE MECHANISM, see detail list, speed amplifier attachment

1шт.

OIL FILTER ASSY., see detail list, speed amplifier attachment

1шт.

OIL PUMP ASSY. & SUCTION PIPE COMPLETE, see detail list, speed amplifier attachment

1шт.

REAR P.T.O., see detail list, speed amplifier attachment

1шт.

SINGLE SPEED DRIVE, see detail list, amplifier attachment

1шт.

SPEED AMPLIFIER CONTROLS, see detail list, attachment

1шт.

TRANSMISSION DRIVE, see detail list, speed amplifier attachment

1шт.

TRANSMISSION HOUSING, see detail list, speed amplifier attachment

1шт.
