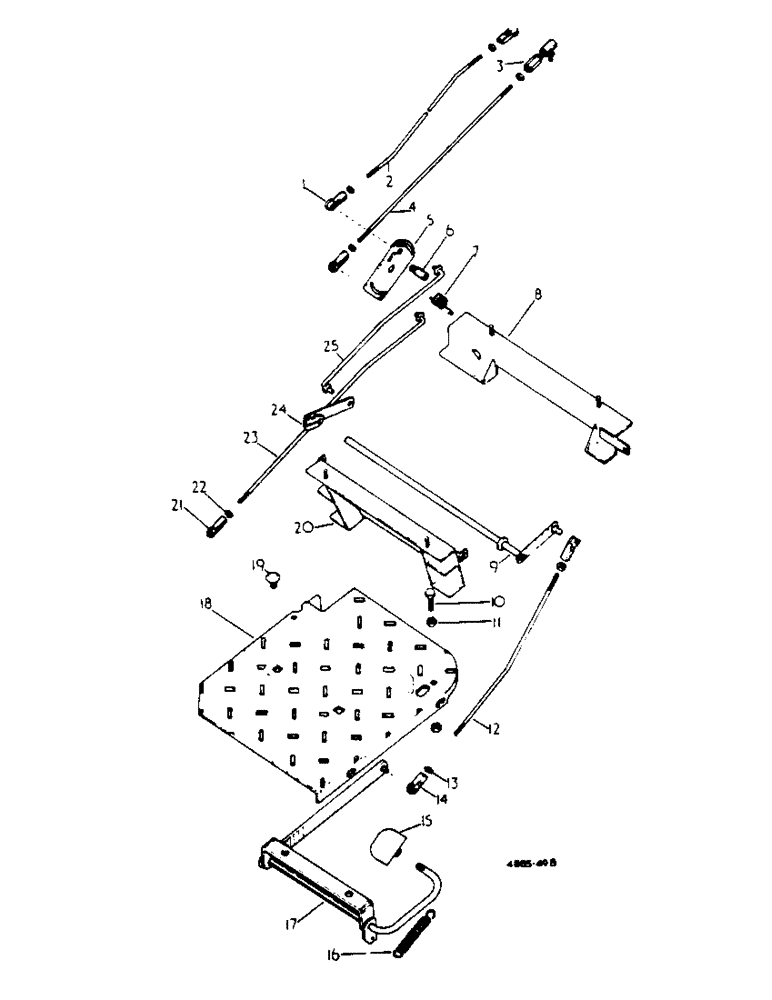

Запчасти Case IH 434 (6-078) - ROD ACTUATED FOOT ACCELERATOR ATTACHMENTS - ATTACHMENTS (88) - ACCESSORIES

ATTACHMENT rod actuated foot accelerator, diesel, Serial Range: up-434D/13328

1шт.

3071179R91

ATTACHMENT rod actuated foot accelerator, diesel, up to 434D/13328, 2000 r.p.m. (Not Serviced)

1шт.

3071477R91

ATTACHMENT rod actuated foot accelerator, diesel, up to 434D/13328, 2500 r.p.m. (Not Serviced)

1шт.

3071521R92

ATTACHMENT rod actuated foot accelerator, diesel, up to 434D/13328, 2000 and 2500 r.p.m.

1шт.

ATTACHMENT rod actuated foot accelerator, petrol, Serial Range: up-434P/1513

1шт.

3071212R91

ATTACHMENT rod actuated foot accelerator, petrol, up to 434P/1513, 2000 r.p.m. (Not Serviced)

1шт.

3071478R91

ATTACHMENT rod actuated foot accelerator, petrol, up to 434P/1513, 2500 r.p.m. (Not Serviced)

1шт.

3071522R91

ATTACHMENT rod actuated foot accelerator, petrol, up to 434P/1513, 2000 and 2500 r.p.m.

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434D/13329 up

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434D/13329 up, 2000 r.p.m. (Factory Application)

1шт.

ATTACHMENT rod actuated foot accelerator, diesel, 434D/13329 up, 2500 r.p.m. (Factory Application)

1шт.

3071796R92

ATTACHMENT rod actuated foot accelerator, diesel, 434D/13329 up, 2000 and 2500 r.p.m.

1шт.

ATTACHMENT rod actuated foot accelerator, petrol, 434P/1514 up

1шт.

ATTACHMENT rod actuated foot accelerator, petrol, 434P/1514 up, 2000 r.p.m. (Factory Application)

1шт.

ATTACHMENT rod actuated foot accelerator, petrol, 434P/1514 up, 2500 r.p.m. (Factory Application)

1шт.

3071797R92

ATTACHMENT rod actuated foot accelerator, petrol, 434P/1514 up, 2000 and 2500 r.p.m.

1шт.

3071214R31

ROD, cpte., control front, comprising:

1шт.

1

3062511R91

JOINT

ball, 1/4" UNF less pins, for rod actuated foot accelerator attachments petrol, Serial Range: up-434P/1513

2шт.

114492

JAM NUT,Jam, 1/4"-28, G5

hex., jam, 1/4" UNF, for rod actuated foot accelerator attachments petrol up to 434P/1513

2шт.

2

3071214R3

ROD, control front, for rod actuated foot accelerator attachments petrol, Serial Range: up-434P/1513

1шт.

3109939R91

ROD, cpte., control front, for rod actuated foot accelerator attachments diesel up to 434D/13328, comprising:

1шт.

3

3109941R91

TRACK ROD END ASSY

END, adjustable, control rod, for rod actuated foot accelerator attachments diesel, Serial Range: up-434D/13328

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

hex., jam, 1/4" UNF, for rod actuated foot accelerator attachments diesel up to 434D/13328

1шт.

4

3109940R1

ROD

control front, for rod actuated foot accelerator attachments diesel, Serial Range: up-434D/13328

1шт.

3068537R1

TRUNNION

END, control rod, for rod actuated foot accelerator attachments diesel, Serial Range: up-434D/13328

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

For rod actuated foot accelerator attachments diesel up to 434D/13328 Jam, 1/4"-20, G5

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

(Australia only), For rod actuated foot accelerator attachments diesel up to 434D/13328 Jam, 1/4"-20, G5

2шт.

5

3071202R11

PLATE, cpte., two way control w/PIN 706204R1, for rod actuated foot accelerator attachments diesel up to 434D/13328 and 434D/13329 up

1шт.

5

3071213R11

PLATE, cpte., two way control w/PIN 706204R1, for rod actuated foot accelerator attachments petrol up to 434P/1513 and 434P/1514 up

1шт.

706204R1

PIN, governor control rod ball

1шт.

6

3071207R1

AXLE PIN

STOP, governor control

1шт.

411597

NUT, stop, 5/16"

1шт.

106261

WASHER,1/4"

5/16" x 3/4" x .065"

1шт.

7

3071204R1

SPRING

control plate return

1шт.

8

3071210R91

SUPPORT, cpte., fuel tank front, for rod actuated foot accelerator attachments diesel up to 434D/13328 and petrol, Serial Range: up-434P/1513

1шт.

8

SUPPORT, cpte., fuel tank front, see Fuel System - CHASSIS, for rod actuated foot accelerator attachments diesel 434D/13329 up and petrol 434P/1514 up

1шт.

9

3071199R11

SHAFT, cpte., cross w/PIN 706204R1

1шт.

706204R1

PIN, governor control rod ball

1шт.

10

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

hex-hd., 3/8" x 1-1/2" (Pedal Stop)

1шт.

11

120377

NUT,3/8" - 16, Gr 5

2шт.

3071198R11

ROD

cpte., governor control, comprising:

1шт.

12

3071198R1

ROD, governor control

1шт.

13

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

14

3068537R1

TRUNNION

END, control rod

1шт.

15

3108779R1

PEDAL

cpte., foot accelerator 434D/28932 up

1шт.

INCLUDING: 434P/3097 up, 434 Ind./549 up

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, , 434D/28932 up 1/8" x 3/4", Slotted

1шт.

INCLUDING: 434P/3097 up, 434 Ind./549 up

1шт.

15

3047530R91

PEDAL, cpte., foot accelerator, Serial Range: up-434D/28931

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Up to 434D/28931 Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

109084

NUT,1/4"-20, G5

Up to 434D/28931, for 3071179R91, 3071212R91 and for 2000 r.p.m. factory application rod actuated foot accelerator attachments diesel 434D/13329 up and petrol 434P/1514 up 1/4"-20, G5

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Up to 434D/28931, for 3071179R91, 3071212R91, 3071477R91, 3071478R91 and for 2000 and 2500 R.P.M factory application rod actuated foot accelerator attachments Diesel 434D/13329 up and Petrol 434P/1514 up 1/4"

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

16

3047546R1

SPRING

foot accelerator 434D/28932 up

1шт.

INCLUDING: 434P/3097 up, 434 Ind./549 up

1шт.

16

751665R1

SPRING

foot accelerator, Serial Range: up-434D/28931

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

17

3108773R1

BRACKET, cpte., cross shaft

1шт.

18

FOOTPLATE, cpte., R.H. (see Footplates - CHASSIS) 434D/28932 up

1шт.

INCLUDING: 434P/3097 up, 434 Ind./549 up

1шт.

18

3071180R91

FOOTPLATE, cpte., R.H., Serial Range: up-434D/28931

1шт.

On orders for footplate 3071180R91, furnish bracket 3108773R1, pedal 3108779R1 and spring 3047546R1 together with all attaching hardware.

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.

19

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

2шт.

NLS

NO LONGER SERVICED

NUT, hex., 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

20

3071208R91

SUPPORT, fuel tank, rear, for 3071179R91, 3071212R91, 3071477R91, 3071478R91 and for 2000 and 2500 r.p.m. factory application rod actuated foot accelerator attachments diesel 434D/13329 up and petrol 434P/1514 up

1шт.

3071205R11

ROD, cpte., control, center, comprising:

1шт.

21

3068537R1

TRUNNION

END, control rod

1шт.

22

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

23

NSS

NOT SOLD SEPARAT

ROD, control, center

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

16558R1

WASHER

17/64" x 5/8" x 16 ga.

1шт.

24

3071201R1

LEVER, foot control

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

rd. hd., sltd., mach., 1/4" x 1"

1шт.

25

3071203R11

ROD, control, cpte., control plate to cross shaft

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

2шт.

16558R1

WASHER

17/64" x 5/8" x 16 ga.

2шт.

3071209R1

BRACKET, cross shaft, for 3071521R92, 3071522R91, 3071796R92 and 3071797R92

2шт.

3071181R91

BRACKET, cpte., foot control, cross shaft, up to 434D/28931, for 3071521R92, 3071522R91, 3071796R92 and 3071797R92

1шт.

INCLUDING: up to 434P/3096, up to 434 Ind./548

1шт.
