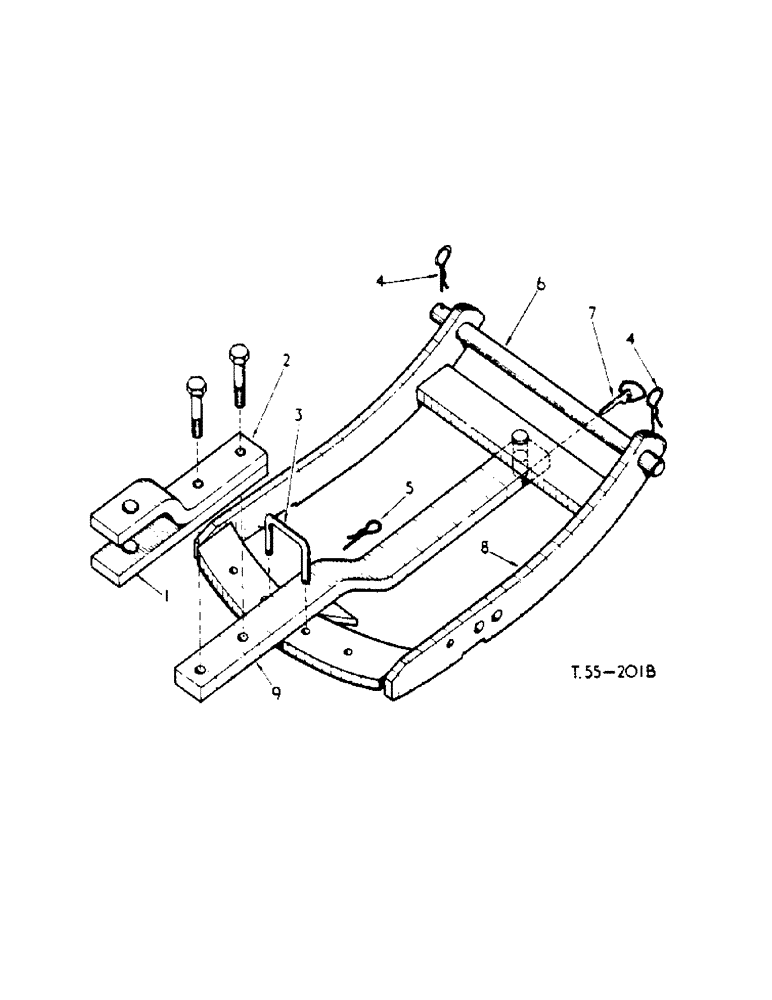

Запчасти Case IH 434 (6-066) - DRAWBAR ATTACHMENTS, 3069521R92, 3069523R92 - ATTACHMENTS (88) - ACCESSORIES

3069521R92

ATTACHMENT drawbar

1шт.

For use with std. hyd. lift and three point linkage (low and high hitch pins) for machines fitted with 540 and 745 r.p.m. P.T.O. (adjustable height clevis)

1шт.

3069523R92

ATTACHMENT drawbar

1шт.

For use with std. hyd. lift and three point linkage (low and high hitch pins) for machines fitted with 1000 r.p.m. P.T.O. (adjustable height clevis)

1шт.

1

3064334R1

ARM

drawbar clevis

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex-hd., 5/8" x 4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

3064333R11

ROLLER

CLEVIS, cpte., drawbar

1шт.

On orders for CLEVIS 3064333R11, furnish CLEVIS 3064333R1 and ARM 3064334R1

1шт.

3

3071789R2

PIN

stop, swinging drawbar

1шт.

4

3067210R1

CLIP

spring

2шт.

5

720631R1

LINCH PIN

PIN, cotter

1шт.

6

704058R1

PIN

drawbar frame

1шт.

7

704212R91

COTTER PIN

PIN, implement cotter, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, implement cotter

1шт.

8

3071328R91

FRAME

drawbar, cpte.

1шт.

8

704022R94

FRAME drawbar, cpte.

1шт.

For service in attachment 3069521R91

1шт.

For service in attachment 3069523R91

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex-hd., 3/4" x 2-1/4"

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

1шт.

9

3071322R2

SWINGING DRAWBAR

DRAWBAR swinging, adjustable height, for 3069521R92

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

9

3071333R2

SWINGING DRAWBAR

DRAWBAR swinging, adjustable height, for 3069523R92

1шт.

On orders for 3071322R11 or 3071333R11, furnish 3071322R2 or 3071333R2 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

9

3064331R1

BAR

DRAWBAR swinging, adjustable height, for 3069521R92

1шт.

On orders for 3064331R11 or 3068370R11, furnish 3064331R1 or 3068370R1 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

For service in attachment 3069521R91

1шт.

9

3068370R1

DRAWBAR

swinging, adjustable height, for 3069523R92

1шт.

On orders for 3064331R11 or 3068370R11, furnish 3064331R1 or 3068370R1 respectively together with RETAINER 3073934R11 and two BOLTS 271560

1шт.

For service in attachment 3069523R91

1шт.
